Fiber Laser Sheet Cutting

ProCut Series

3 kW – 12 kW · Gantry Fiber Laser Cutter

The ProCut Series is Wavlon's entry-level workhorse — a gantry-style fiber laser cutter with an enclosed cutting head and beam over an open machine bed. Ideal for general fabrication shops and job shops that want dependable daily-driver cutting without paying for a full enclosure or shuttle table.

12kW

Max Power

±0.03mm

Accuracy

100m/min

Max Speed

35mm

Max Steel

Request a Quote → View Full Specs

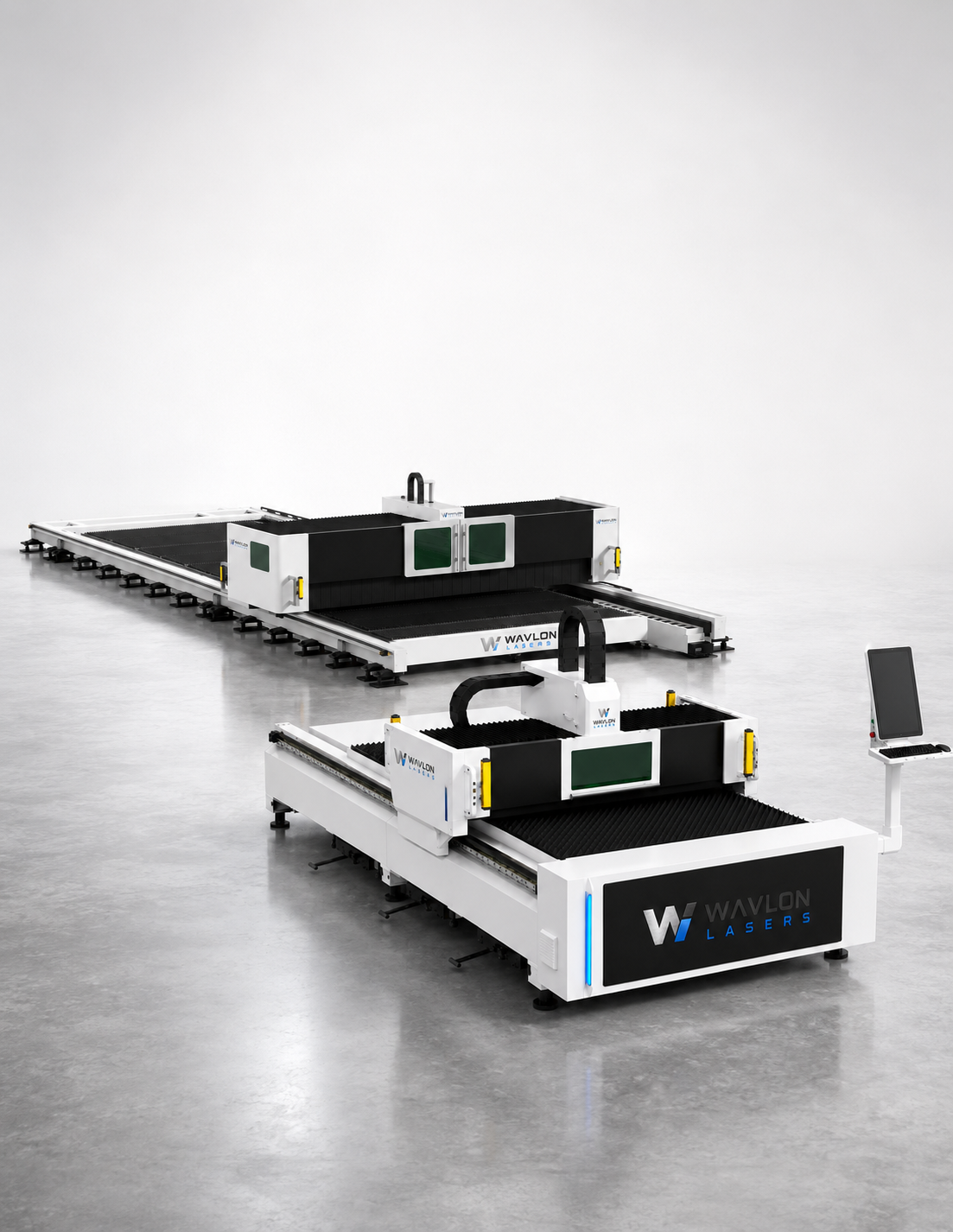

Wavlon ProCut Series Fiber Laser Cutting Machine

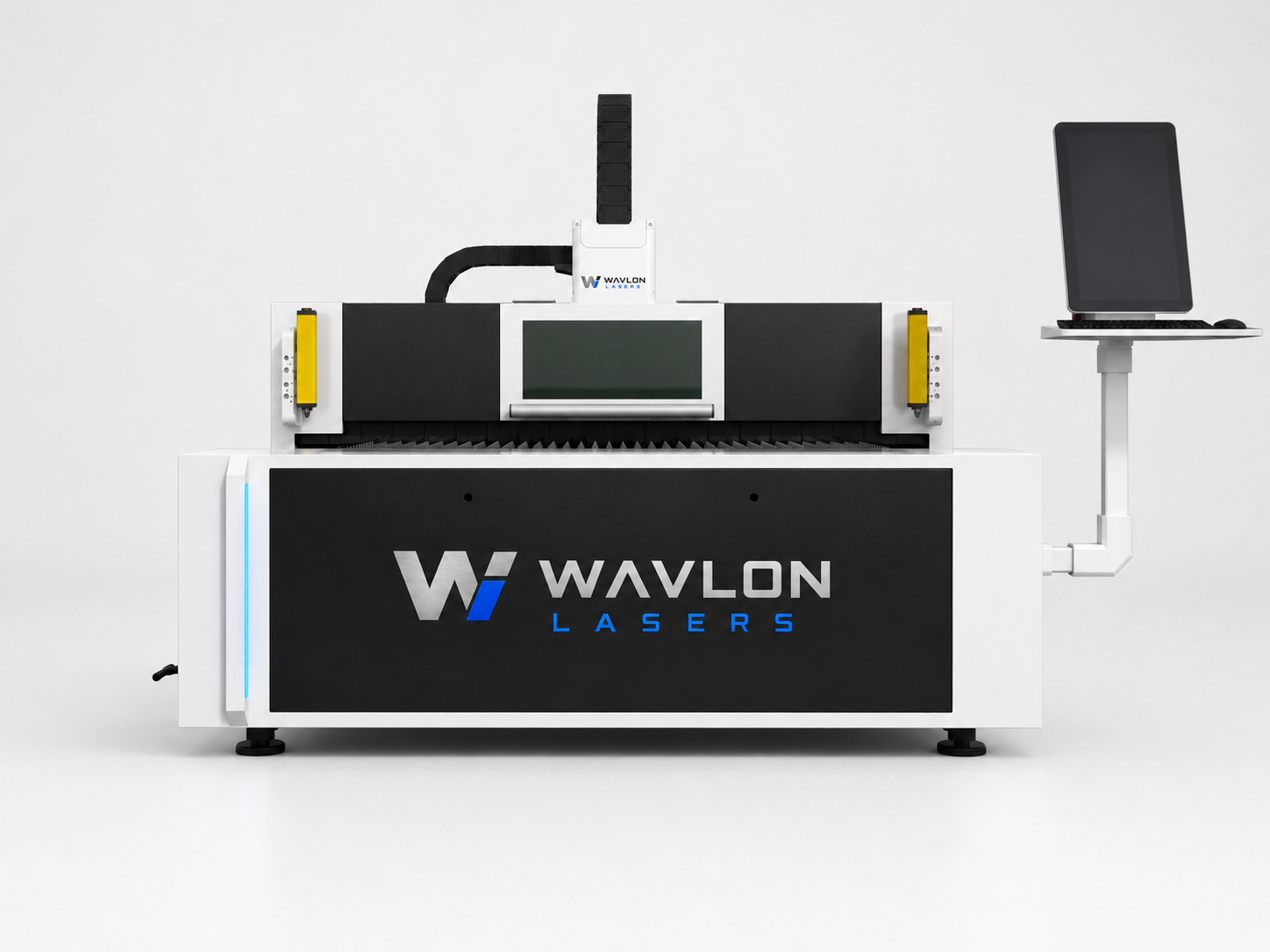

Wavlon ProCut Series Fiber Laser Cutting Machine — Front View

Power

3–12 kW

Frames

3015 / 4020

Speed

100m/min

Gantry Fiber Laser Cutter

Open Table. Enclosed Beam. Built to Cut Every Day.

The ProCut delivers tier-1 components at an entry-level price — Yaskawa servos, ROUST rails, and a 27-inch Cypcut console, standard on every model.

Schneider & ABB electrical — CSA-certified throughout

ROUST German linear guide rails + Eblun helical rack

Dual high-sensitivity safety light curtains, both ends

Open bed — crane, forklift, or manual loading, any direction

±0.03 mm positioning / ±0.02 mm repeat accuracy

Cypcut software with DXF/DWG nesting (12kW: Cypnest included)

Request a Quote →

Power Options

Choose Your Model

The ProCut Series is available in 3 kW, 6 kW, and 12 kW on both 3015 and 4020 frame sizes. All models share the same tier-1 drivetrain.

3 kW

Entry Level

WPC-3015-3K / WPC-4020-3K

Steel Range0.5–16 mm
Laser HeadBLT-310
ControlFSCUT2000E
Speed100 m/min · 1.0 G

Engineering That Shows

Every ProCut ships with the same tier-1 components. No upgrades needed — this is the standard build.

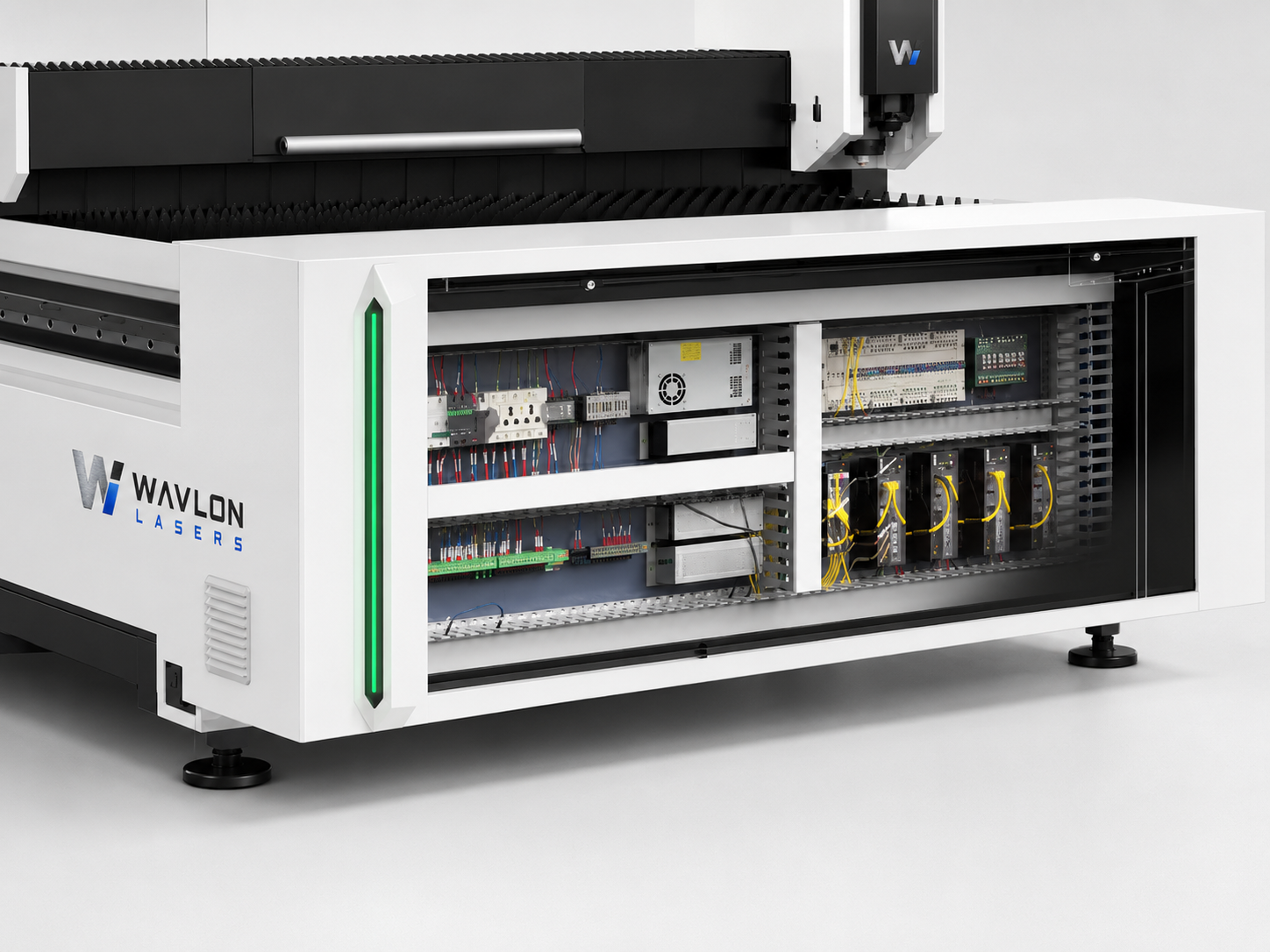

Electrical System

Schneider & ABB — European Grade Throughout

Every ProCut features a fully organized electrical cabinet built with Schneider Electric and ABB components — inverters, contactors, circuit breakers, and servo drives. CSA-certified wiring throughout for Canadian compliance.

Schneider Electric PLCs, inverters & breakers

ABB contactors & motor starters

Yaskawa servo drives — Japanese precision

FDA & CE / CSA certified components & cables

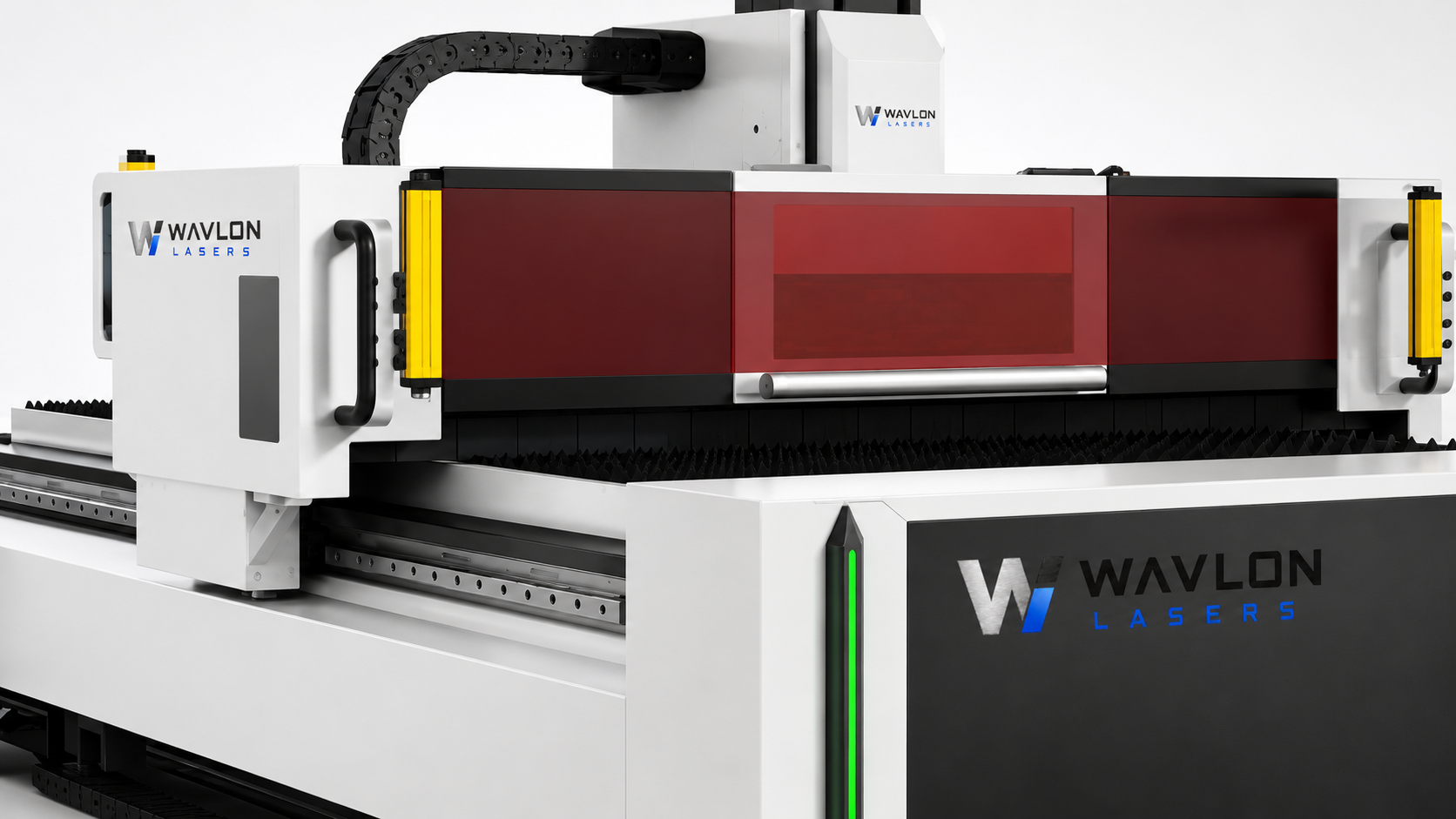

Safety System

High-Sensitivity Safety Light Curtains

Integrated high-sensitivity safety light curtains on both ends of the machine beam. Immediate E-stop response to any intrusion during active cutting — keeping operators safe without slowing production.

Dual-side light curtain protection

Instantaneous E-stop on beam break

Safe restart after clearance — no manual reset delay

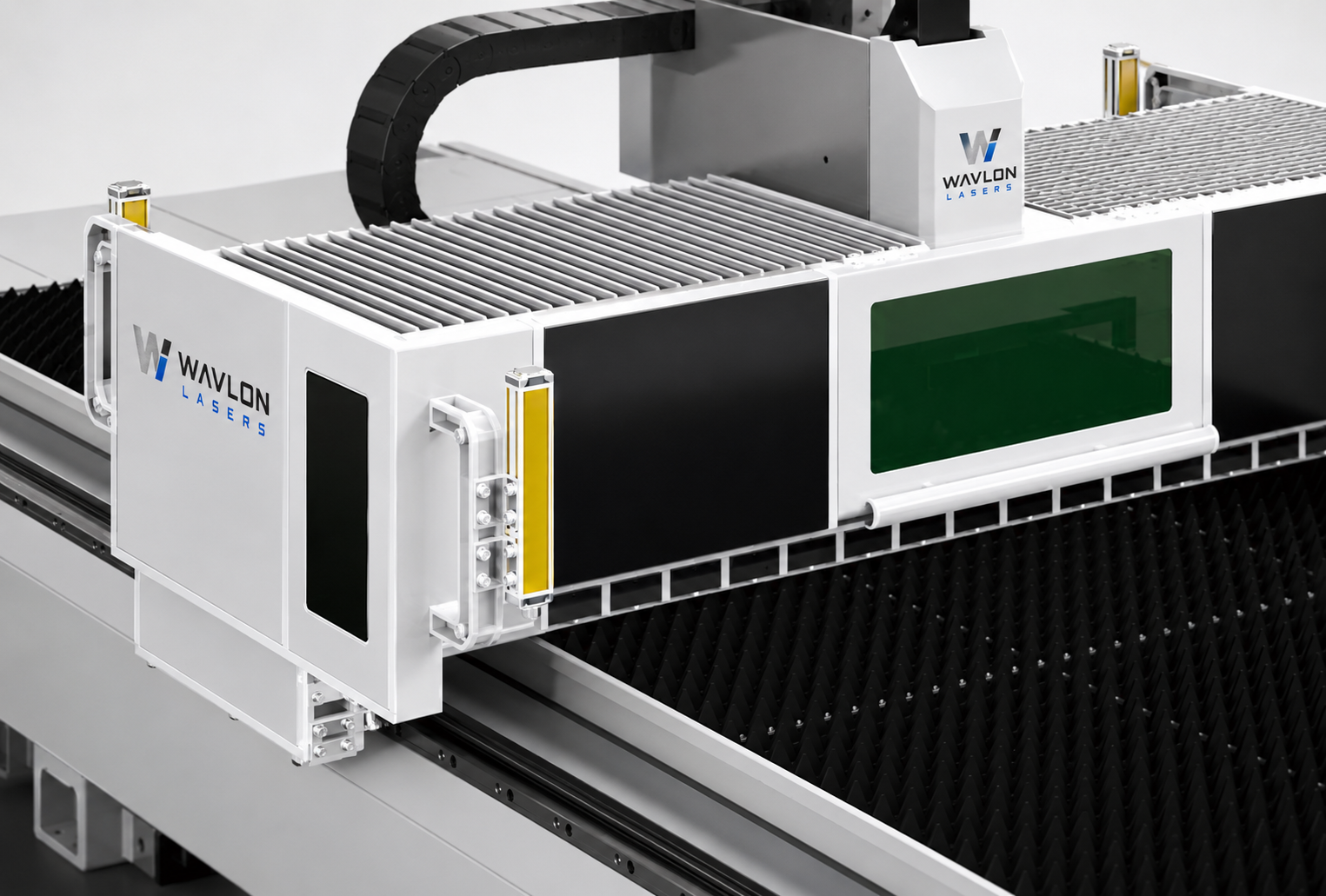

Gantry Design

Enclosed Gantry Beam — Open Table Access

The ProCut's distinctive gantry-enclosed beam protects the laser optics and mechanics from fume and spatter while keeping the cutting bed fully open. Load sheet stock from any direction — crane, forklift, or manual — without opening doors or waiting on a shuttle cycle.

ROUST German linear guide rails

Eblun helical rack & pinion drive

±0.03mm positioning / ±0.02mm repeat precision

Unrestricted table access — no enclosure overhead

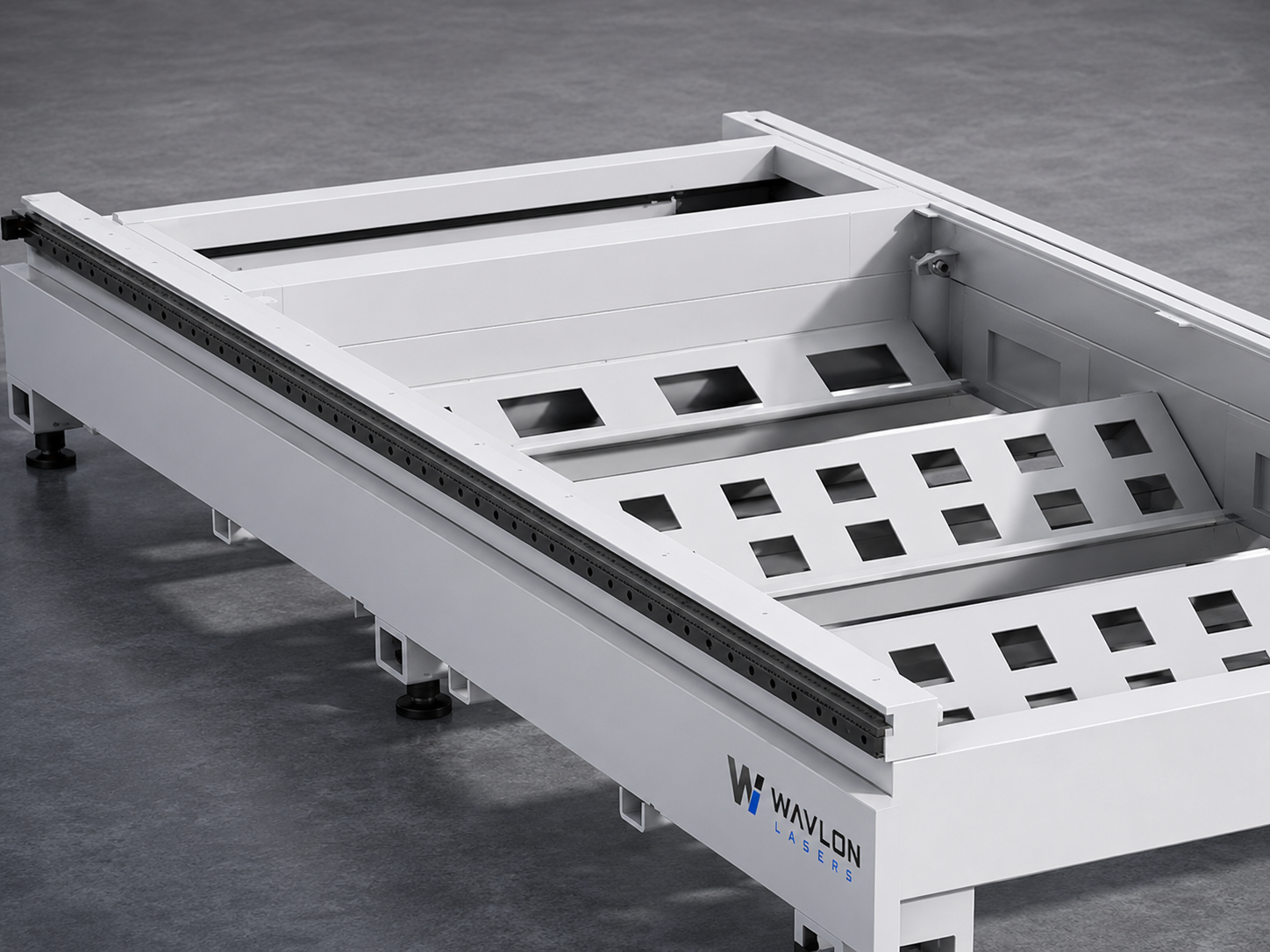

Cutting Bed

Integrated Precision Slat Bed

Heavy-duty slat bed welded into the machine frame — no flex, no alignment drift. Replaceable mild steel slats in 25mm and 50mm pitch. Scrap drawer keeps the cutting zone clean and reduces fume pocket buildup under the workpiece.

Welded-frame slat table — zero flex

Standard 3015 (3m × 1.5m) or 4020 (4m × 2m) beds

Replaceable slats — stocked in Toronto warehouse

Scrap drawer for fast cutting zone cleanup

Technical Specifications

Full Specification Sheet

All six ProCut models — 3015 and 4020 frame sizes across 3 kW, 6 kW, and 12 kW.

3015 Frame — Working Area 3080 × 1540 mm

Specification	WPC-3015-3K	WPC-3015-6K	WPC-3015-12K
Laser Power	3 kW	6 kW	12 kW
Steel Range	0.5–16 mm	0.5–22 mm	2–35 mm
Laser Head	BLT-310	BLT-421S	BLT-442
Control System	FSCUT2000E	FSCUT4000E	FSCUT8000
Working Area	3080 × 1540 mm
Max Speed	100 m/min · 1.0 G
Nesting Software	Optional	Optional	Cypnest (included)

4020 Frame — Working Area 4000 × 2000 mm

Specification	WPC-4020-3K	WPC-4020-6K	WPC-4020-12K
Laser Power	3 kW	6 kW	12 kW
Steel Range	0.5–16 mm	0.5–22 mm	2–35 mm
Laser Head	BLT-310	BLT-421S	BLT-442
Control System	FSCUT2000E	FSCUT4000E	FSCUT8000
Working Area	4000 × 2000 mm
Max Speed	100 m/min · 1.0 G
Nesting Software	Optional	Optional	Cypnest (included)

Common Specifications — All ProCut Models

Laser Source	MAX
Servo Motor	Yaskawa (Japan)
Linear Guide Rail	ROUST (Germany)
Helical Rack	Eblun (Taiwan)
Electrical	Schneider & ABB (France)
Water Chiller	S&A

Operating Voltage	380V / 3-phase / 60Hz
Software	Cypcut / Hypcut
Screen	27-inch console
Positioning Precision	±0.03 mm / 1000 mm
Repeat Precision	±0.02 mm / 1000 mm
Certification	FDA & CE / CSA

Compare Series

ProCut vs PowerCut vs UltraCut

Choose the right series based on your enclosure requirements, table configuration, and throughput needs.

ProCut (WPC) PowerCut (WFC) UltraCut (WUC)

Specification	ProCut ✓	PowerCut	UltraCut
Power Range	3–12 kW	3–12 kW	3–20 kW
Max Steel (12 kW)	35 mm	35 mm	35 mm
Max Acceleration	1.0 G	1.2 G	1.2 G
Max Speed	100 m/min	120 m/min	120 m/min
Enclosure	Gantry beam, open bed	Full enclosed cabin	Full enclosed cabin
Table Type	Open single table	Single auto pull-out	Dual exchange shuttle
Frame Options	3015 / 4020	3015 only	3015 / 4020
Best For	Entry-level job shops	Mid-tier with safety	Flagship production

Download the ProCut Series Catalog

Full specifications, cutting data, frame options, and model comparison for all WPC ProCut models.

No spam. One email. Unsubscribe anytime.

Request a Quote

Get ProCut Pricing

Fill in your requirements and our team will send you a detailed quote with pricing, delivery timeline, and financing options within 24 business hours.

Canadian Pricing in CAD

All quotes in Canadian dollars with duties and shipping included.

Financing Available

Equipment financing available with approved credit. Learn more.

24-Hour Response

Our team responds to all quote requests within one business day.

ProCut Quote Request

Response within 24 business hours.

✓ Quote Request Sent!

Our team will contact you within 24 business hours with ProCut pricing and options.

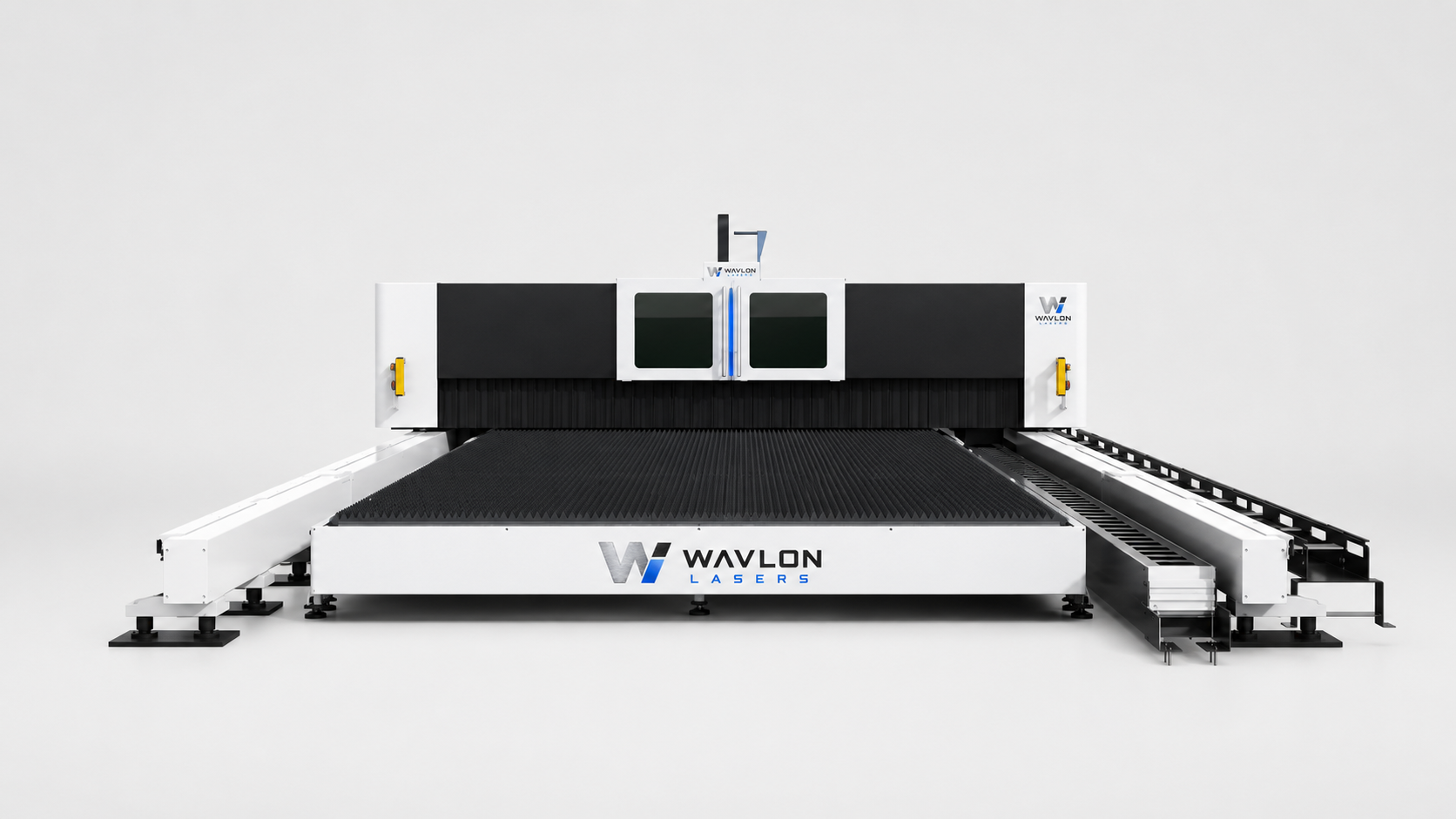

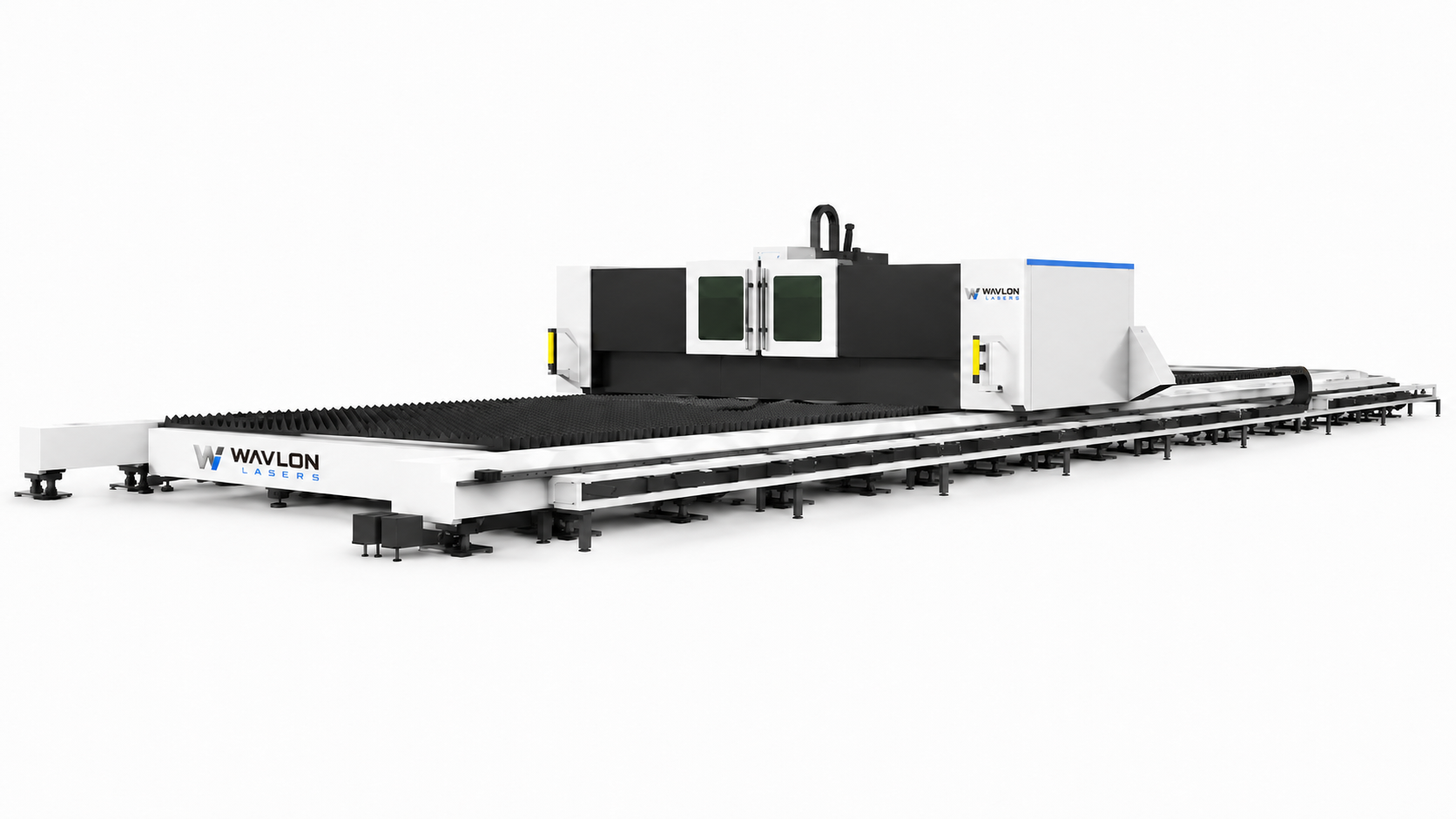

Ultra Large Format Gantry Cutter

6m × 2.5m Bed. Up to 20 kW. Same Open-Table Design.

The ProCut UL extends the proven gantry platform to oversized formats — ideal for structural steel, wide plate, and applications that exceed standard 3015 dimensions.

4020 and 6025 frame options — handles full-length structural stock

Up to 20 kW with BLT-860H head — cuts 40mm carbon steel cleanly

Reinforced gantry beam engineered for longer-span travel

Unrestricted crane/forklift loading — no enclosure cycle delay

Yaskawa servo drives across all axes for long-travel precision

Canadian-stocked consumables — nozzles, lenses, windows

Request a Quote →

Power Options

Choose Your UL Model

The ProCut UL Series is available in 3 kW, 6 kW, 12 kW, and 20 kW configurations on 4020 and 6025 frame sizes — built for oversized plate and structural applications.

3 kW

Entry UL

WPC-UL-4020-3K / WPC-UL-6025-3K

Steel0.5–16 mm
HeadBLT-310
ControlFSCUT2000E
Speed100 m/min

6 kW

Standard UL

WPC-UL-4020-6K / WPC-UL-6025-6K

Steel0.5–22 mm
HeadBLT-421S
ControlFSCUT4000E
Speed120 m/min

ProCut UL Specification Sheet

All UL models across 4020 and 6025 frame sizes — 3 kW, 6 kW, 12 kW, and 20 kW.

4020 Frame Models (Working Area: 4000 × 2000 mm)

Specification	WPC-UL-4020-3K	WPC-UL-4020-6K	WPC-UL-4020-12K	WPC-UL-4020-20K
Laser Power	3 kW	6 kW	12 kW	20 kW
Working Area	4000 × 2000 mm
Steel Range	0.5–16 mm	0.5–22 mm	2–35 mm	5–40 mm
Laser Head	BLT-310	BLT-421S	BLT-442	BLT-860H
Control System	FSCUT2000E	FSCUT4000E	FSCUT8000	FSCUT8000
Max Speed	100 m/min	120 m/min	120 m/min	120 m/min
Max Acceleration	1.0 G	1.0 G	1.0 G	1.2 G

6025 Frame Models (Working Area: 6000 × 2500 mm)

Specification	WPC-UL-6025-3K	WPC-UL-6025-6K	WPC-UL-6025-12K	WPC-UL-6025-20K
Laser Power	3 kW	6 kW	12 kW	20 kW
Working Area	6000 × 2500 mm
Steel Range	0.5–16 mm	0.5–22 mm	2–35 mm	5–40 mm
Laser Head	BLT-310	BLT-421S	BLT-442	BLT-860H
Control System	FSCUT2000E	FSCUT4000E	FSCUT8000	FSCUT8000
Max Speed	100 m/min	120 m/min	120 m/min	120 m/min
Max Acceleration	1.0 G	1.0 G	1.0 G	1.2 G

Common Specifications (All ProCut UL Models)

Laser Source	MAX / IPG
Servo Motor	Yaskawa (Japan)
Linear Guide Rail	ROUST (Germany)
Electrical Components	Schneider & ABB (France)
Water Chiller	S&A
Calibration	Automatic

Enclosure	Gantry beam, open machine bed
Operating Voltage	380V / 3-phase / 60Hz
Software	Cypcut / Hypcut
Positioning Precision	±0.03 mm / 1000 mm
Repeat Precision	±0.02 mm / 1000 mm
Certification	FDA & CE / CSA components

Key Features

Built for Oversized Production

Ultra Large Format Bed — 4020 and 6025 frame sizes handle structural steel, wide plate, and formats standard machines cannot accommodate.

Up to 20 kW — BLT-860H cutting head delivers confident cutting up to 40mm carbon steel in a single pass.

Yaskawa Servo Motors — Precision servo drives across all axes maintain repeatability on long-travel gantry systems.

Reinforced Gantry Beam — Heavier-duty steel beam construction engineered for the longer spans of UL format beds.

Open Table Loading — Unrestricted crane or fork loading from any direction — critical for handling oversized or heavy plate.

Cypcut / Hypcut Software — Full DXF/DWG import, technology tables, nesting, and live monitoring on a 27-inch console.

Why ProCut UL

When Standard Format Isn't Enough

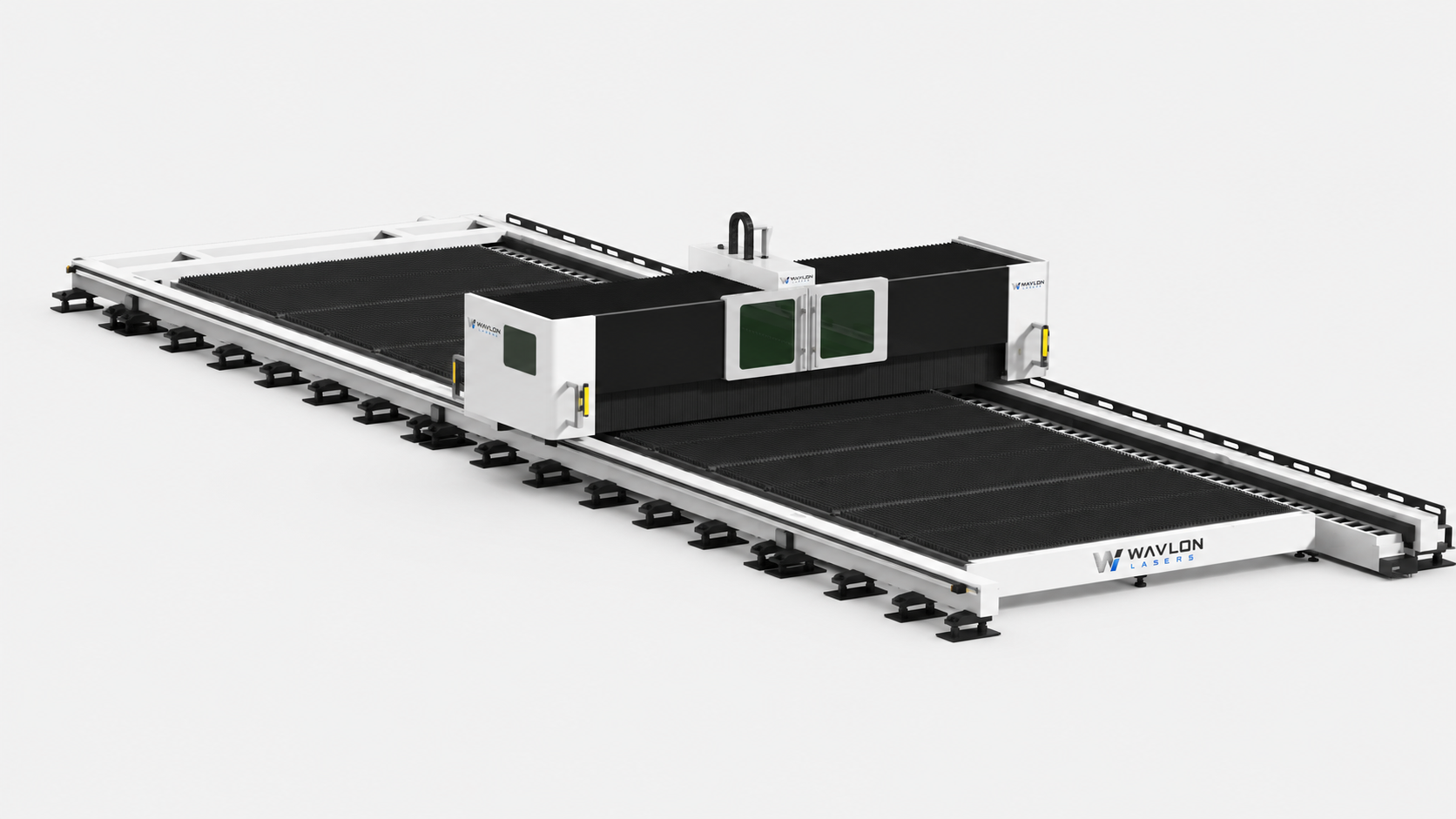

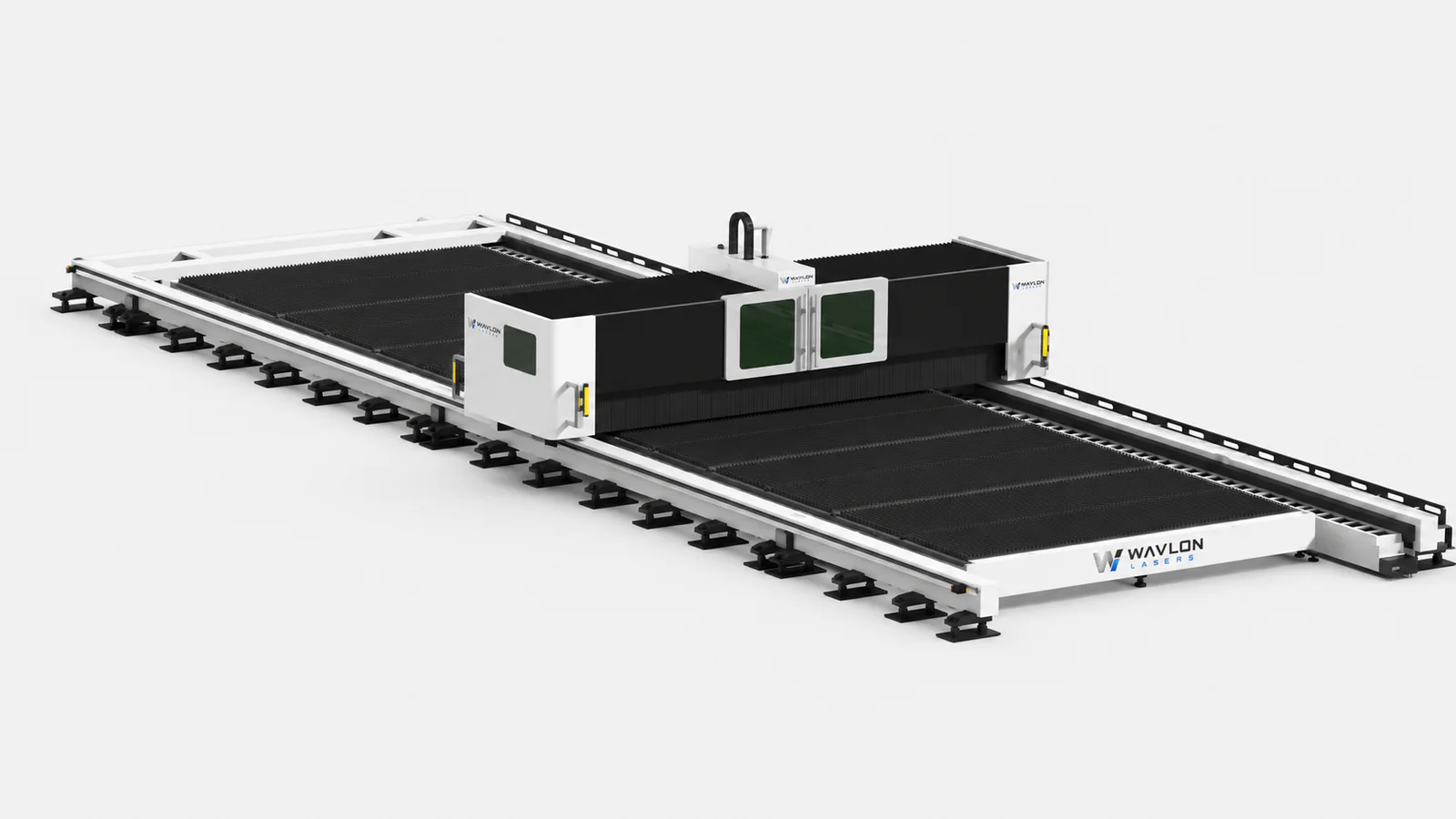

6m × 2.5m Cutting Bed

The 6025 frame accepts full-length structural stock, wide plate, and oversized blanks without pre-cutting to fit.

Same Open-Table Advantage

Maintains the unrestricted loading access of the ProCut gantry design — no enclosure cycle time, no shuttle wait.

Canadian-Stocked Parts

All UL consumables (nozzles, lenses, windows) available from Canadian stock for fast next-day delivery.
