TubeCut Triple Chuck
6,000W – 30,000W · Three Models · ⌀360mm – 680mm

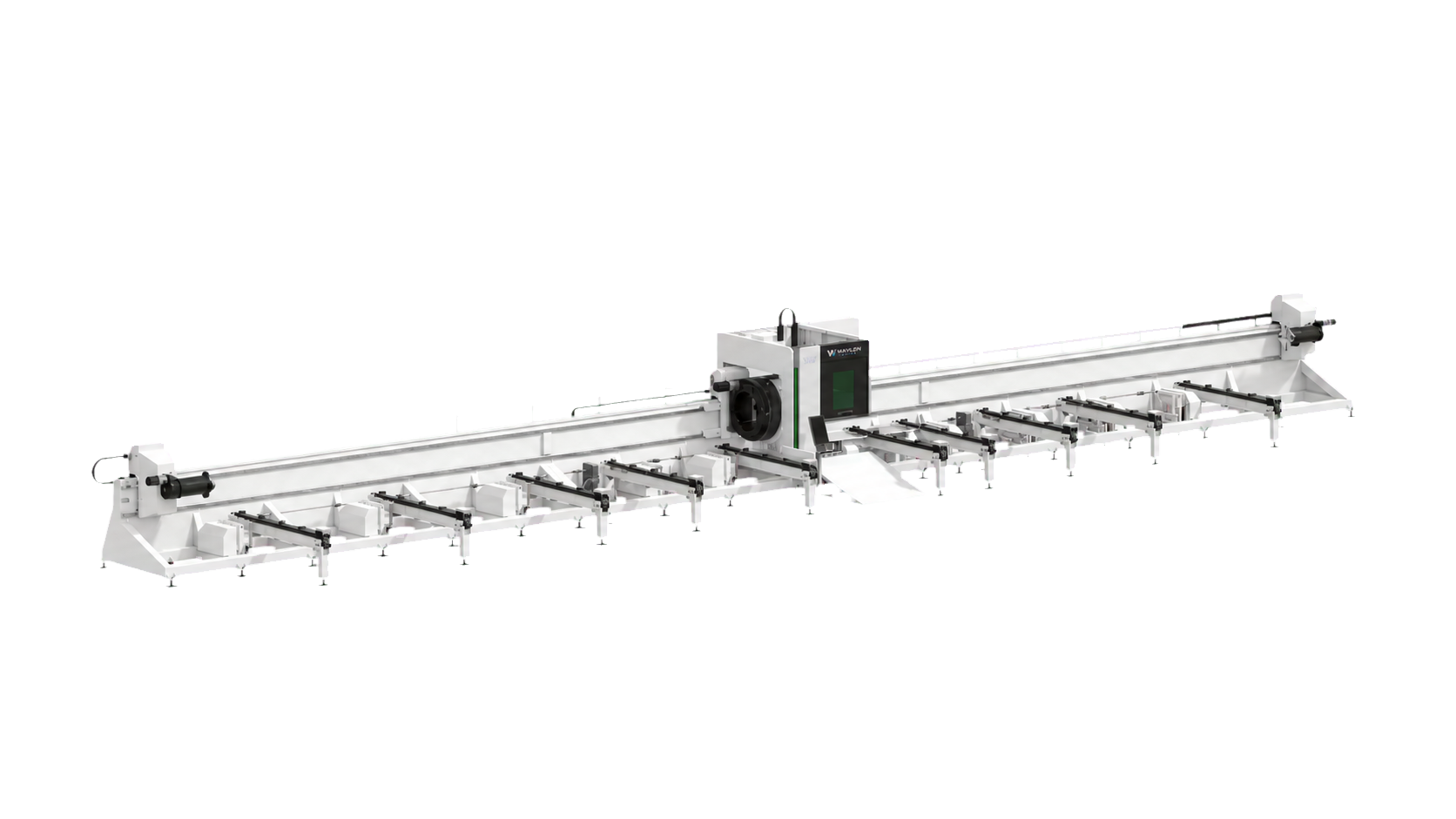

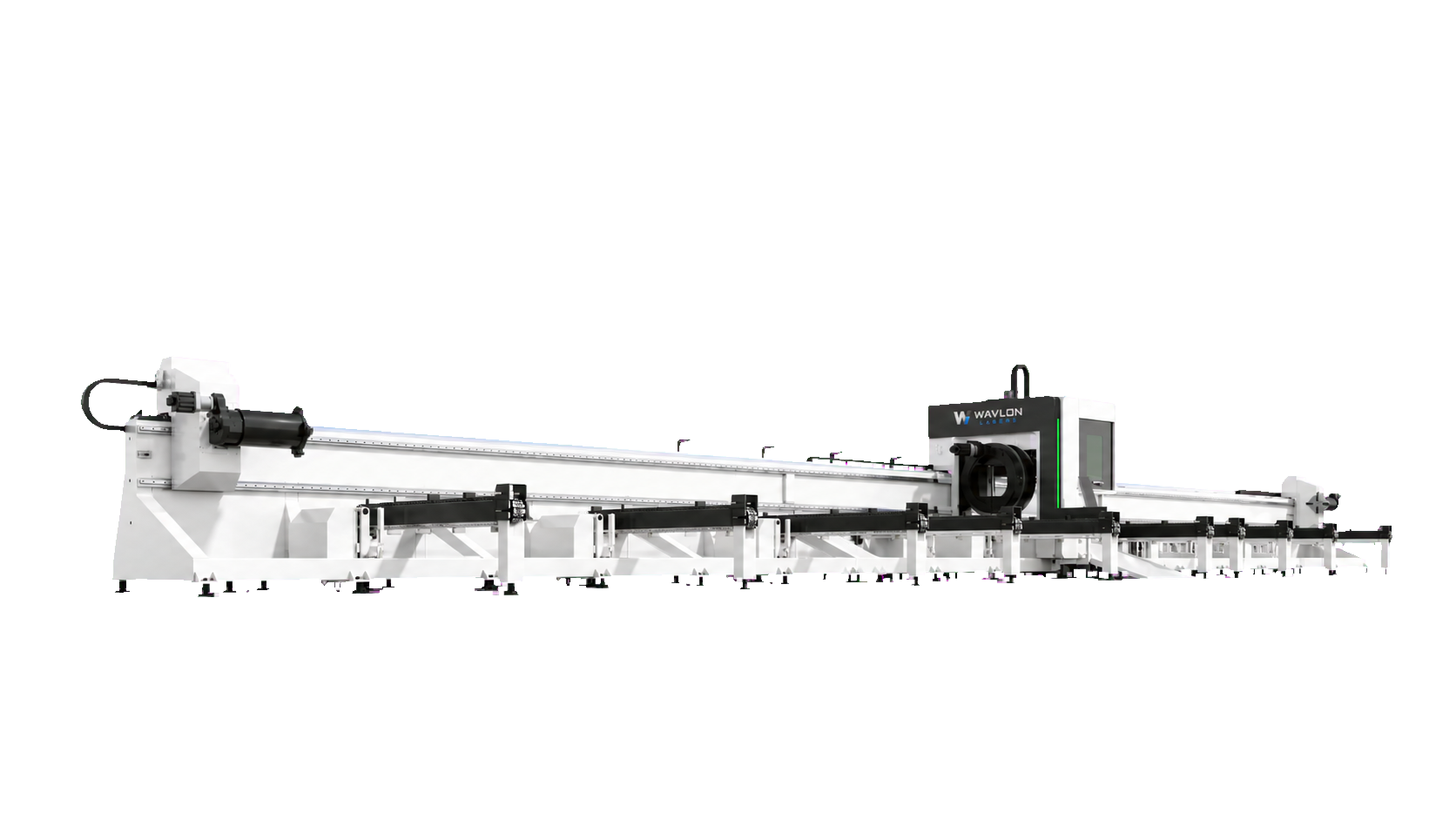

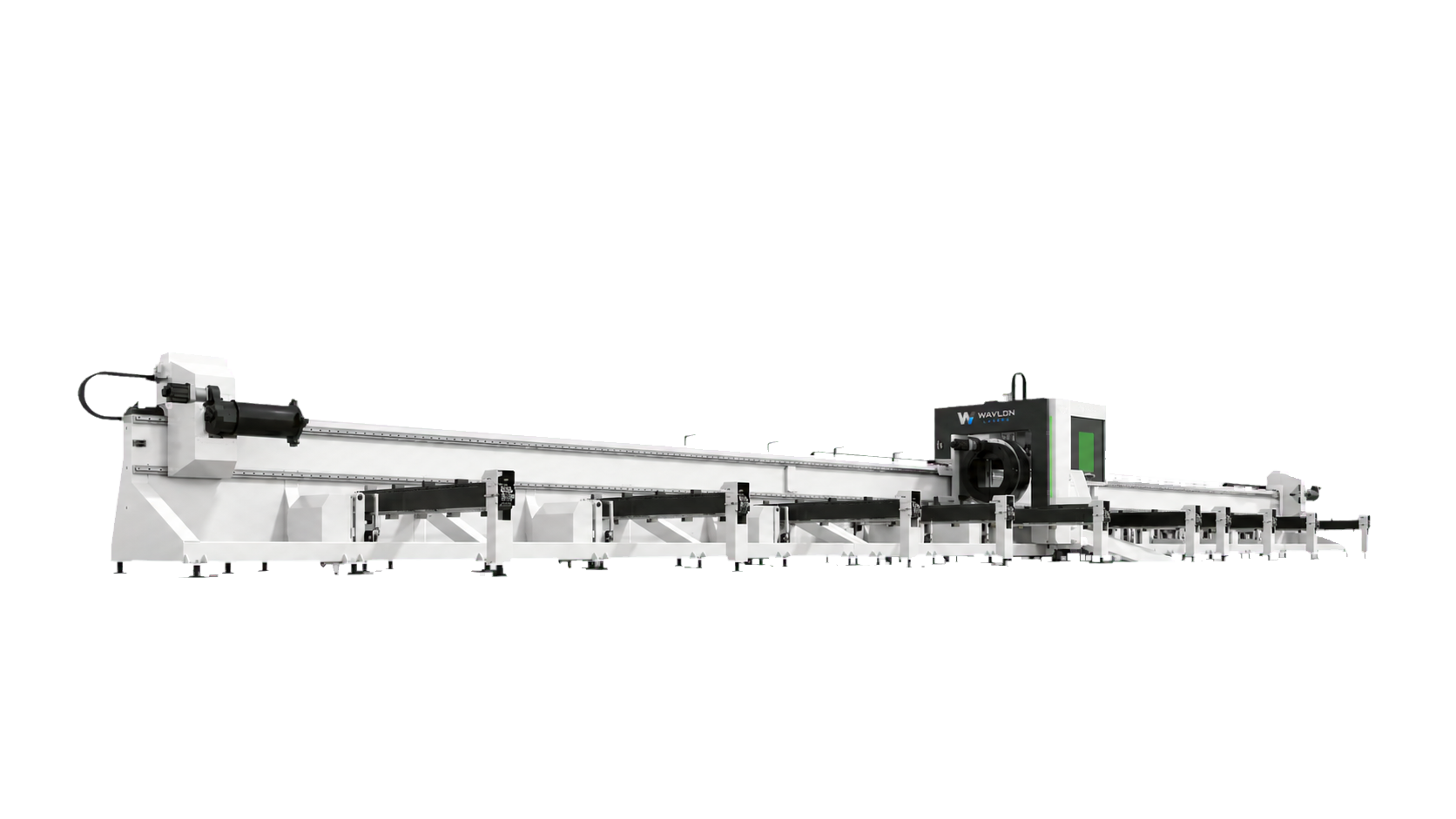

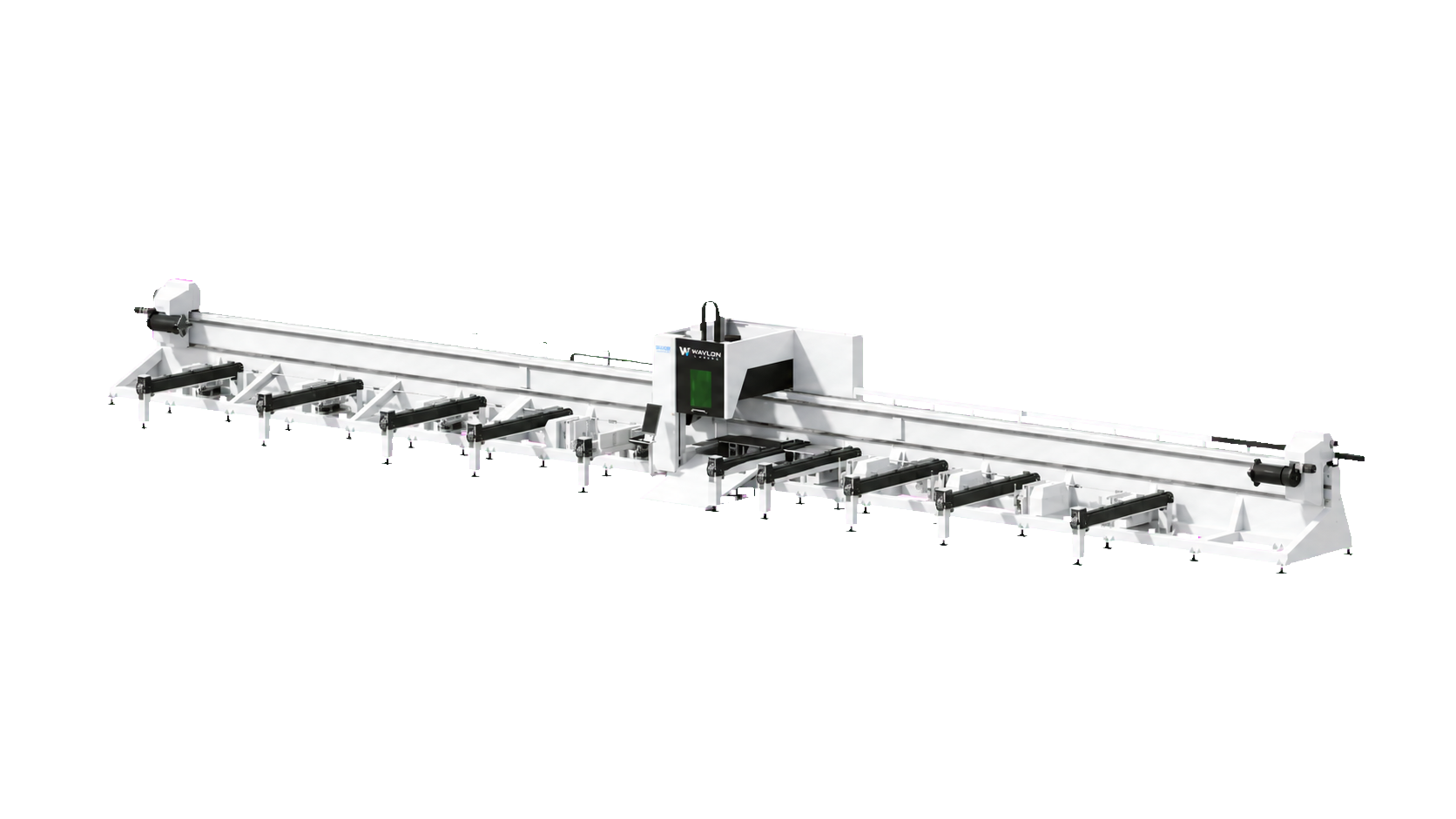

TubeCut Triple Chuck is Wavlon's heavy-duty fiber laser tube cutting platform for large structural sections. Three models — TTC-360, TTC-520, and the flagship TTC-680/570 — run on a 12,000mm bed and a synchronized triple-chuck drive, built for structural steel fabricators, agricultural equipment manufacturers, and steel service centers.
Three Models, One Heavy Duty Tier
From the most popular 360mm/520mm workhorses up to the 680mm round / 570mm square flagship.
| Model | Tier | Max ⌀ Round | Max ⌀ Square | Power Options | Bed Length |
|---|---|---|---|---|---|
| TTC-360 Popular | Heavy Duty | 360mm | 360mm | 6 / 8 / 12 kW | 12,000mm |
| TTC-520 Popular | Heavy Duty | 520mm | 520mm | 12 / 16 / 20 kW | 12,000mm |
| TTC-680/570 | Heavy Duty (Max) | 680mm | 570mm | 20 / 24 / 30 kW | 12,000mm |
TTC-520 Technical Specs
Specifications shown for TTC-520 (16kW) — a popular heavy-duty configuration. Full spec sheets for TTC-360/520/680-570 available on request.
Machine Body
| Model | TTC-520 |
| Laser Power | 12 / 16 / 20 kW |
| Max Tube Diameter | 520mm (round) |
| Max Square Section | 520×520mm |
| Bed Length | 12,000mm |
| Max Load Weight | 1,500 kg |
Performance
| Repeat Positioning Accuracy | ±0.05mm |
| Acceleration | ≈1.0G |
| Chuck Rotation | 360° continuous, synchronized |
| Chuck Count | 3 (triple chuck) |
| Profiles Supported | Round and square HSS sections, large structural profiles |
Note: on the flagship TTC-680/570 configuration, maximum square-chuck capacity (570mm) is lower than maximum round-chuck capacity (680mm) due to chuck-jaw stroke geometry at full extension.
Built for Heavy Structural Production
