UltraCut
Series
Fully enclosed dual-exchange fiber laser — 3 kW through 20 kW. The machine never waits for the operator. The operator never waits for the machine.
Up to 160 kW available on request — contact us for thick-plate configuration.
Engineered for
Continuous Production.
The UltraCut Series is Wavlon's flagship platform — a fully enclosed safety cabin paired with dual exchangeable shuttle tables, matched chiller, and industry-leading motion specs. Covers both the 3015 and 4020 frame in one platform.
Load while you cut — zero dead time between jobs. The only Wavlon sheet series with full dual-exchange production.
Class-1 optical enclosure, laser-rated viewing windows, interlocked access doors, and integrated dust/fume extraction.
Adaptive standoff, automatic focus adjustment, and rapid lens exchange — matched per power tier from 3 kW to 20 kW.
3015 (3080 × 1540 mm) or 4020 (4000 × 2000 mm) — one platform, two work envelopes, every power tier.

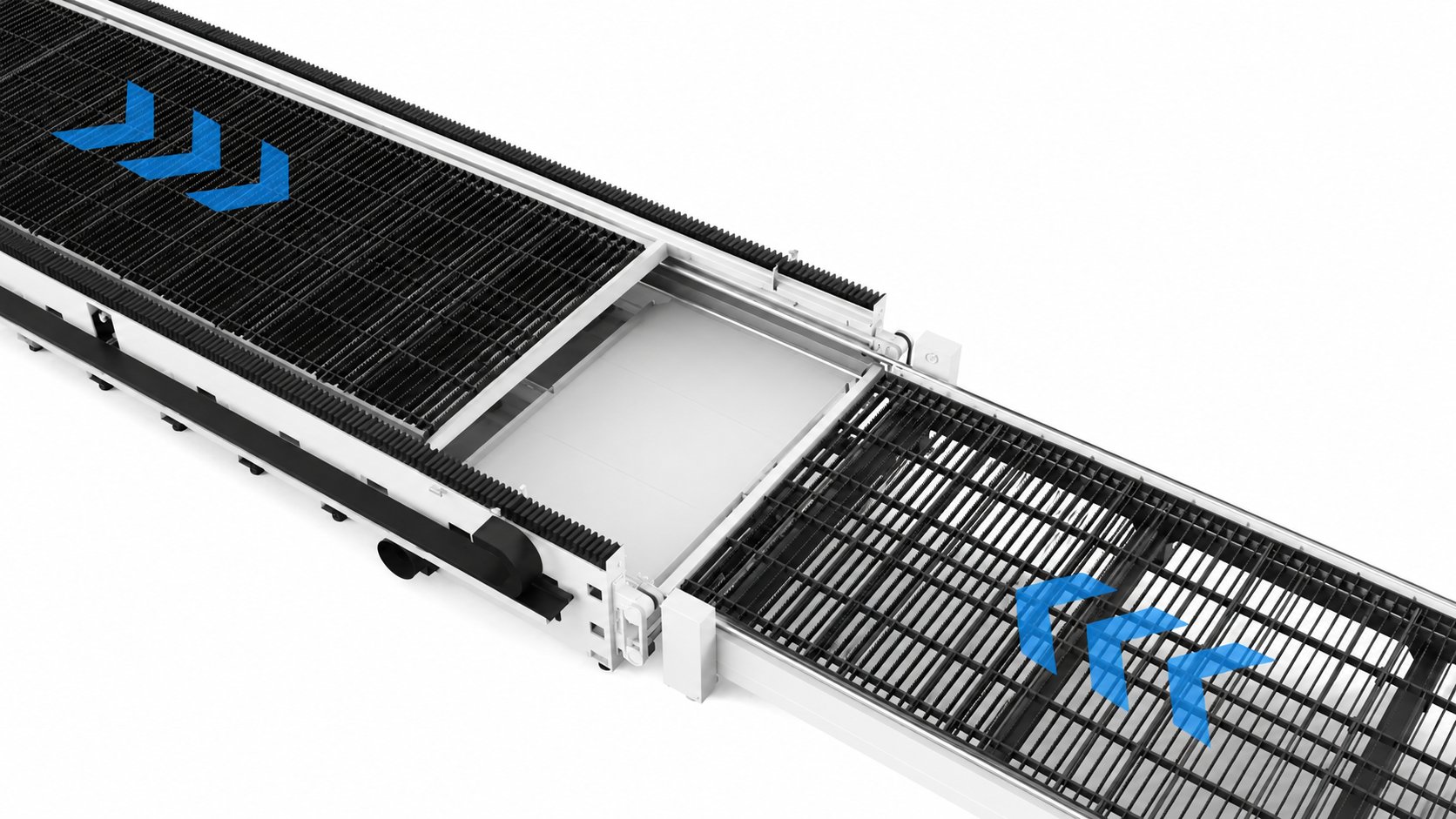

Dual Exchangeable
Shuttle Tables.
Two pallets. One cycle. While the laser cuts inside the fully enclosed cabin, the operator stages the next sheet on the second table outside — completely clear of the optical path. When the cut finishes, the tables exchange automatically and the next job begins immediately.
The result: load and unload time disappears from your cycle. The machine runs the way it was designed to — uninterrupted.
Cut inside the cabin
Sheet A is processed under the fully enclosed cabin with active fume extraction and full optical containment.
Load outside, in parallel
Sheet B is loaded onto the second table outside the cabin while the laser is still running — zero interference.
Exchange & resume
Tables swap pull-type. The next cut begins immediately. The operator unloads Sheet A for the next cycle.

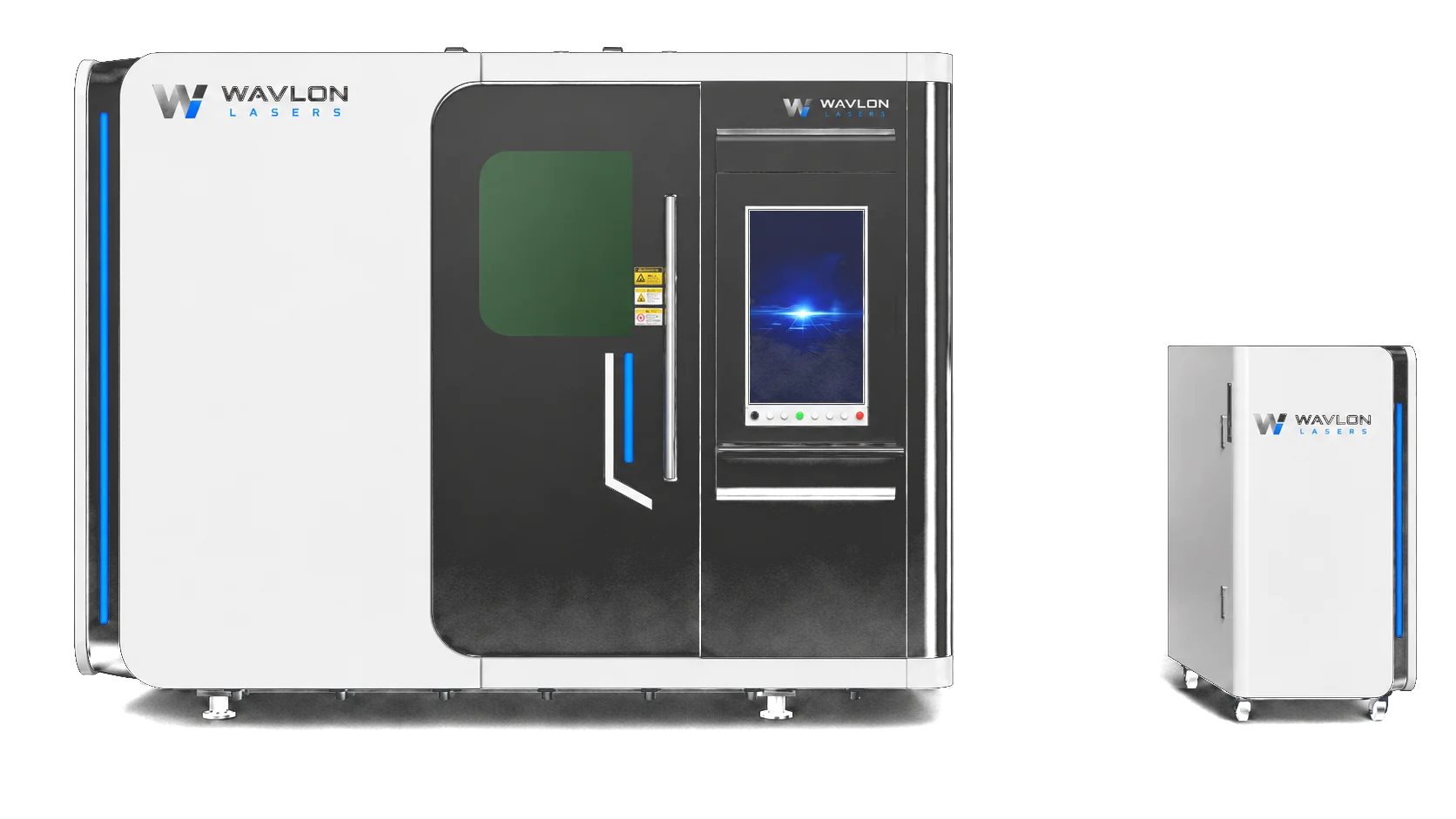

Fully Enclosed
Safety Cabin.
Complete optical enclosure — laser-rated viewing windows, interlocked access doors, and integrated dust and fume containment. Safe for operators, certified for the shop floor.
Laser-rated viewing
Tinted safety windows let operators monitor the cut without removing the enclosure.
27" internal console
Touch-screen Cypcut / Hypcut control mounted to the cabin door, operator-facing.
Blue accent lighting
Vertical accent strips flank the cabin doors — a Wavlon design signature on the UltraCut line.
Class-1 enclosure
Full optical containment with interlocked access doors. Safe for any production environment.
Integrated chiller cabinet
Process water chiller and dust collector ship with the machine as a matched, pre-wired system.
Fume & dust extraction
Integrated extraction ports keep the cabin clear of process particulate throughout the cut cycle.
Intelligent Monitoring & Light Safety Curtains.
Eyes on every cut. Guard rails on every load. UltraCut layers an electronic safety envelope around the operator — transparent inside, protected outside, without slowing the dual-exchange cycle.

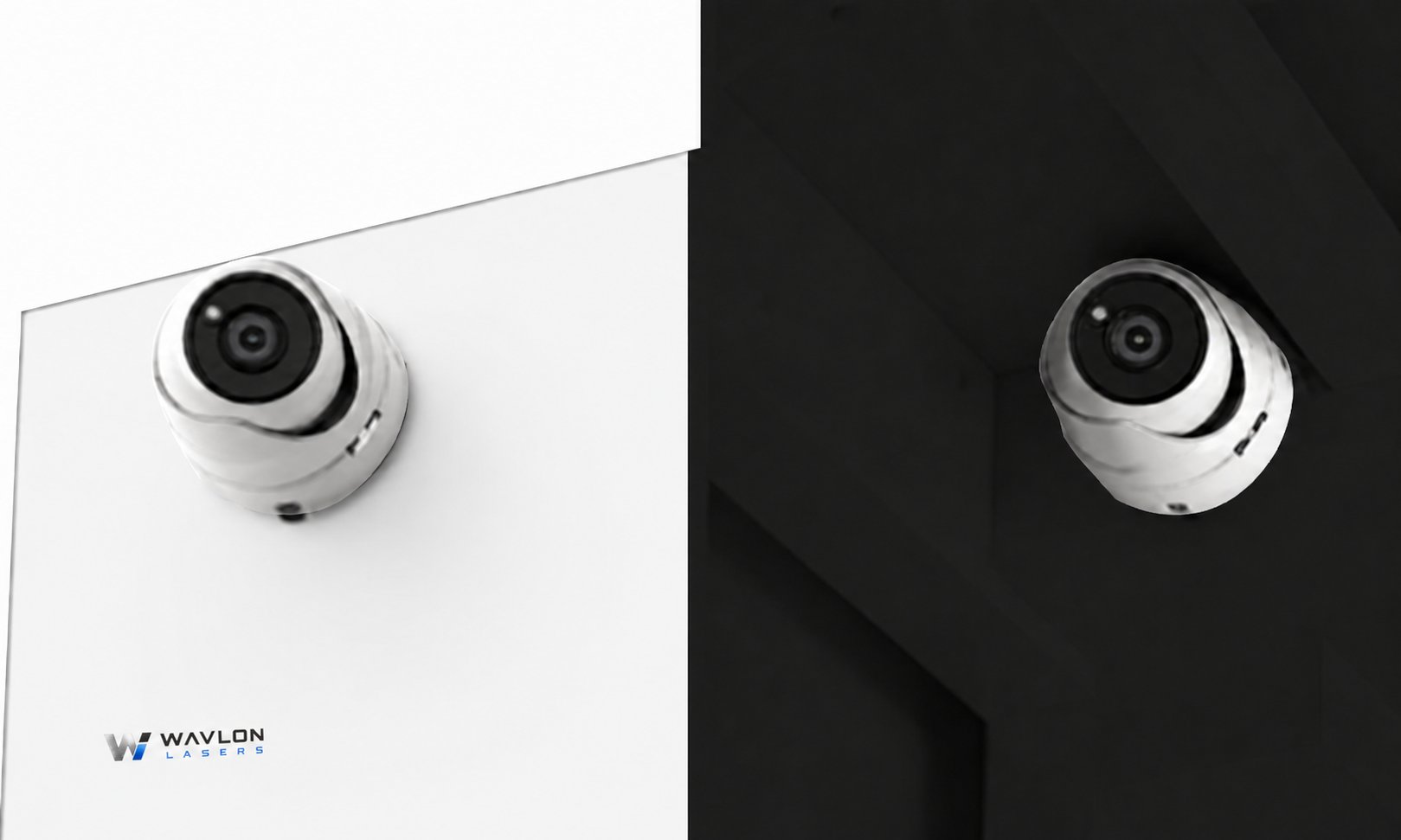

Intelligent Monitoring System.
UltraCut features an interconnected dual-screen system that lets operators monitor cutting in real time. Internal HD cameras stream a live feed from inside the fully enclosed cabin to the operator-facing console — every cut, fully visible without breaking enclosure.

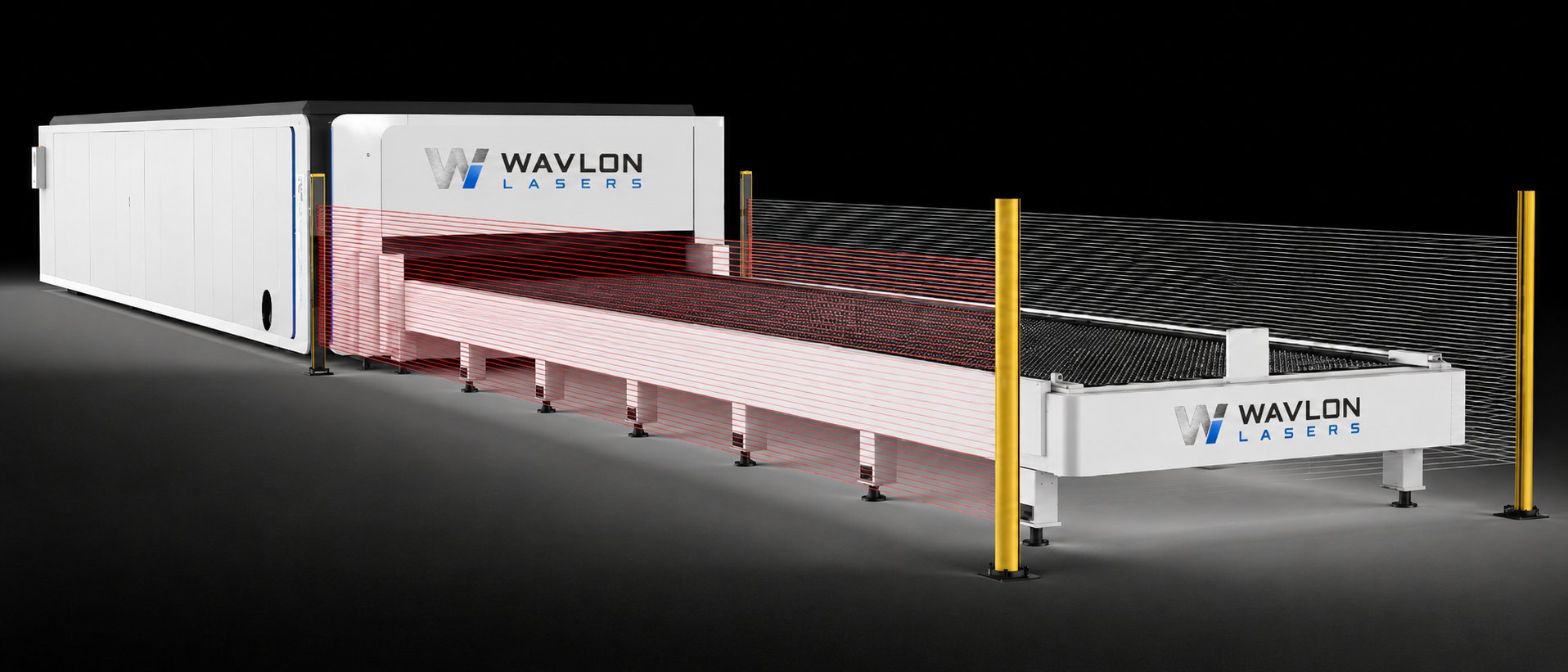

Light Safety Curtains.
Photoelectric light curtains form an invisible safety perimeter around the shuttle-table exchange envelope. If the beam grid is broken during auto-run, motion halts instantly — operators load and unload in parallel with confidence, and the dual-exchange cycle never compromises personnel safety.

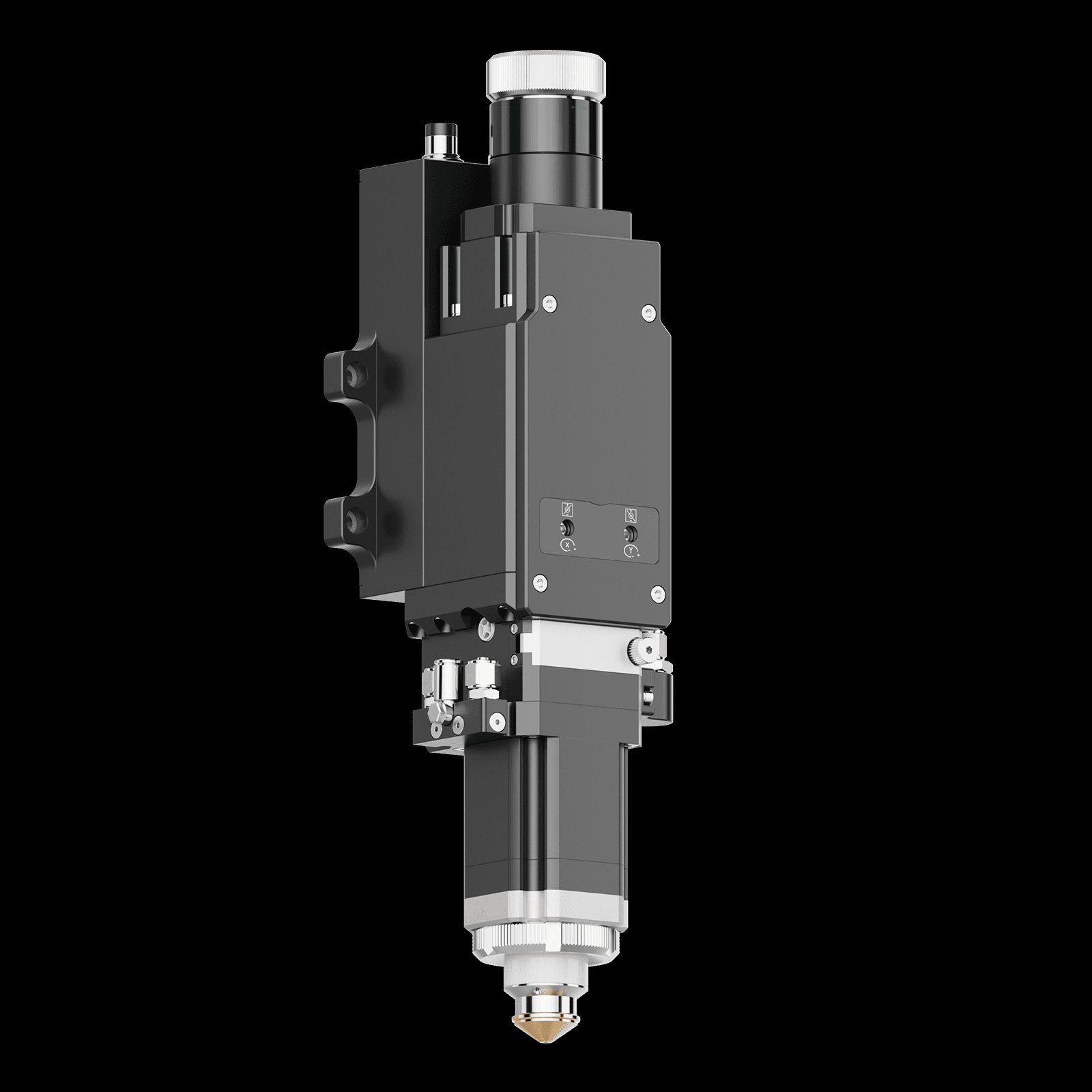

BOCI BLT Laser Heads.
Precitec optional.

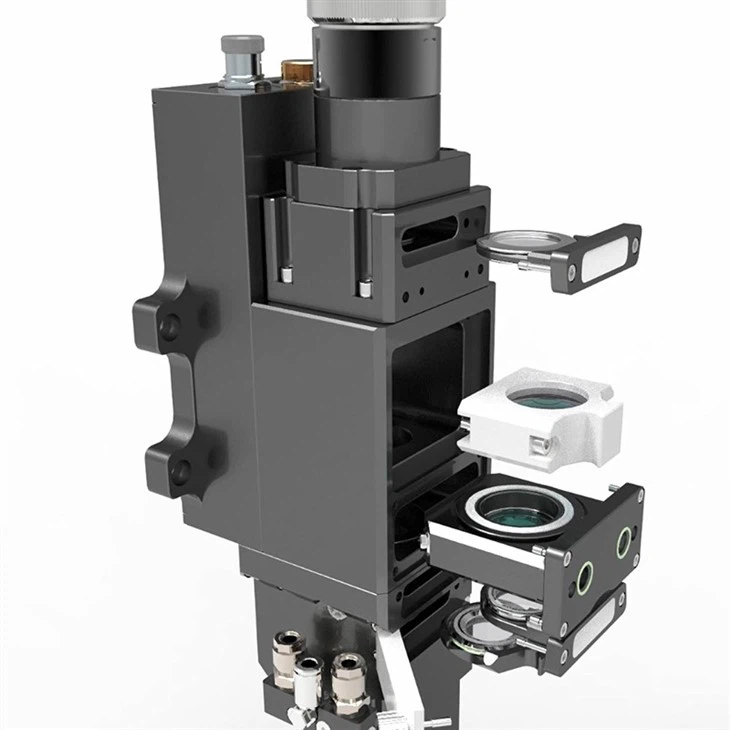

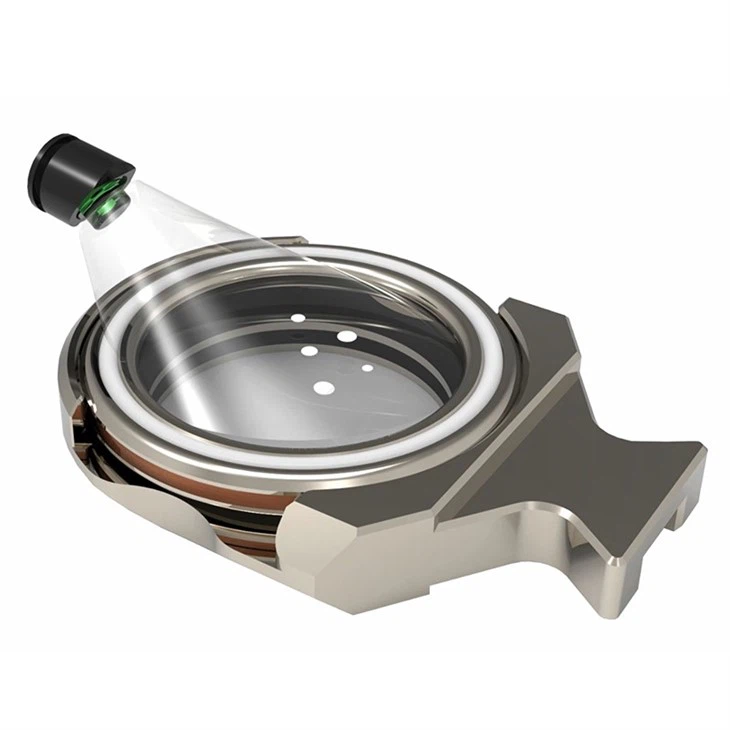

Four heads, one design language. Each UltraCut power tier ships standard with the matched BOCI BLT cutting head — precision adaptive standoff, automatic focus adjustment, and rapid lens exchange. Precitec head integration is available as an option for customers standardising on Precitec optics across their plant.
| Power | BLT Head | Notes |
|---|---|---|
| 3 kW | BLT-310 | Thin-gauge fidelity, fast focus |
| 6 kW | BLT-421S | Mid-range workhorse head |
| 12 kW | BLT-442 | Thick-plate, adaptive standoff |
| 20 kW | BLT-462 | Maximum cutting range, 40 mm steel |
| Optional | Precitec | Available on request POA |

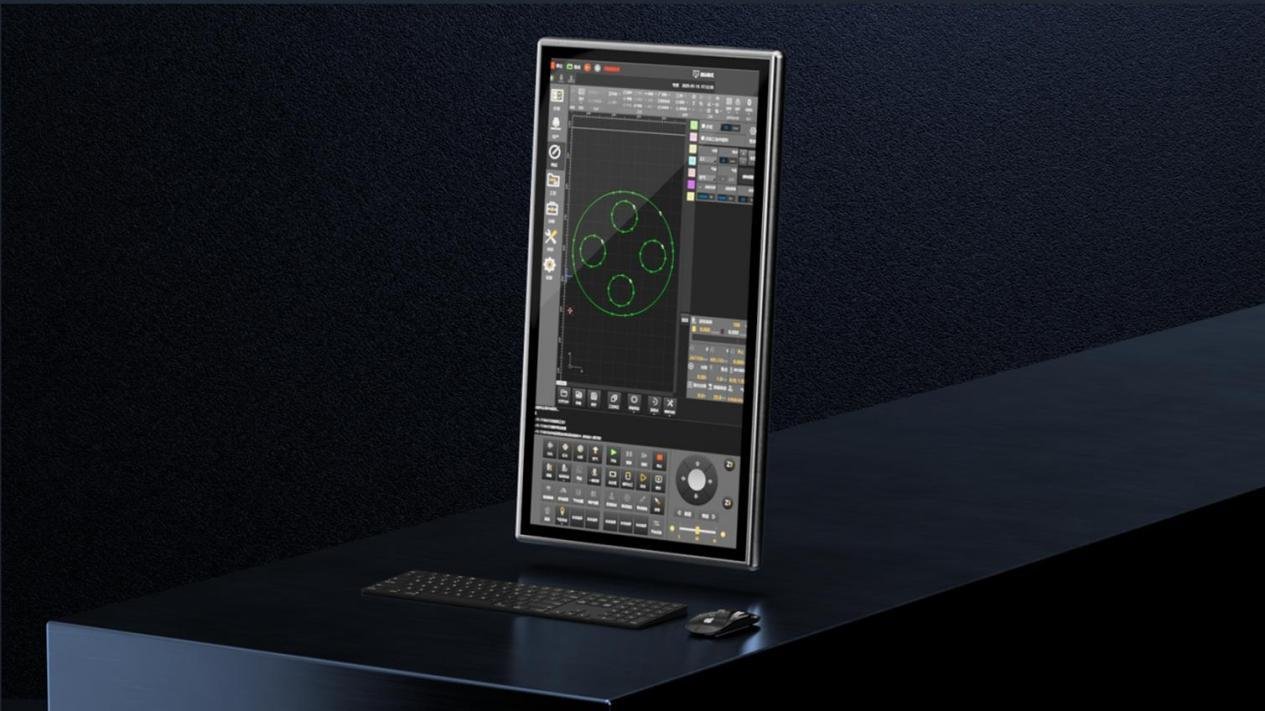

Cypcut & Hypcut
Control. 27" Console.
Industry-standard CNC software with a 27" internal-design console — nesting, edge searching, range checking, and live cut monitoring in one operator-facing interface, mounted directly to the cabin door.
Sourced internationally. Integrated in Canada.
Choose Your Power Tier
Eight standard models across two frames — 3015 and 4020 — in four power tiers. All share the same dual-exchange cabin, motion package, and component lineup.
Full Specification Sheet
All eight standard UltraCut models — 3015 and 4020 frames, 3 kW through 20 kW.
3015 Frame — Working Area 3080 × 1540 mm
| Spec | 3K | 6K | 12K | 20K |
|---|---|---|---|---|
| Laser Power | 3 kW | 6 kW | 12 kW | 20 kW |
| Steel Cutting Range | 0.5–16 | 0.5–22 | 2–35 | 3–40 mm |
| Laser Head | BLT-310 | BLT-421S | BLT-442 | BLT-462 |
| Control System | FSCUT2000E | FSCUT4000E | FSCUT8000 | FSCUT8000 |
| X-Axis Travel | 1540 mm | |||
| Y-Axis Travel | 3080 mm | |||
| Z-Axis Travel | 300 mm | |||
| Max Acceleration | 1.2 G | |||
| Max Speed | 120 m/min | |||
| Nesting Software | Optional | Optional | Cypnest std. | Cypnest std. |
4020 Frame — Working Area 4000 × 2000 mm
| Spec | 3K | 6K | 12K | 20K |
|---|---|---|---|---|
| Laser Power | 3 kW | 6 kW | 12 kW | 20 kW |
| Steel Cutting Range | 0.5–16 | 0.5–22 | 2–35 | 3–40 mm |
| Laser Head | BLT-310 | BLT-421S | BLT-442 | BLT-462 |
| Control System | FSCUT2000E | FSCUT4000E | FSCUT8000 | FSCUT8000 |
| X-Axis Travel | 4050 mm | |||
| Y-Axis Travel | 2010 mm | |||
| Z-Axis Travel | 300 mm | |||
| Max Acceleration | 1.2 G | |||
| Max Speed | 120 m/min | |||
| Nesting Software | Optional | Optional | Cypnest std. | Cypnest std. |
Common Specifications — All UltraCut Models
| Laser Source | MAX Fiber Laser | Servo Motor | Yaskawa (Japan) |
| Linear Guide Rail | ROUST (Germany) | Helical Rack | Eblun (Taiwan) |
| Electrical | Schneider & ABB (France) | Reducer | TECHMECH |
| Pneumatic / Gas | SMC | Water Chiller | S&A |
| Enclosure | Full enclosed cabin | Table Type | Dual exchange (pull-type) |
| Operating Voltage | 380 V / 3-ph / 60 Hz | Screen | 27" internal console |
| Certification | FDA & CE / CSA | Software | Cypcut / Hypcut |
| Positioning Precision | ±0.03 mm / 1000 mm | Repeat Precision | ±0.02 mm / 1000 mm |
ProCut vs PowerCut vs UltraCut
| Specification | ProCut | PowerCut | UltraCut ✓ |
|---|---|---|---|
| Power Range | 3–12 kW | 3–12 kW | 3–20 kW (160 kW POA) |
| Max Steel (20 kW) | — | — | 40 mm |
| Max Acceleration | 1.0 G | 1.2 G | 1.2 G |
| Max Speed | 100 m/min | 120 m/min | 120 m/min |
| Enclosure | Gantry beam, open bed | Full enclosed cabin | Full enclosed cabin |
| Table Type | Open single table | Single auto pull-out | Dual exchange shuttle |
| Frame Options | 3015 / 4020 | 3015 only | 3015 / 4020 |
| Best For | Entry-level job shops | Mid-tier with safety | Flagship production |
