Laser cutting head optionProCutter Thunder
Stable, economical 2D and 3D cutting in the medium-power range.
Review the official Precitec product page ↗

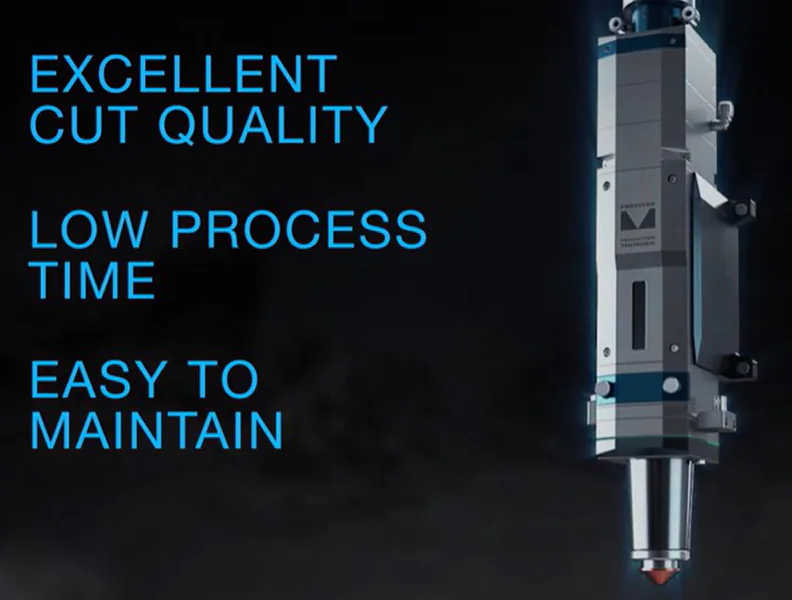

Designed for Stable Industrial Cutting
Feature descriptions are summarized from Precitec’s current official product information and presented for configuration guidance.
Stable distance sensing
A low-drift distance sensor supports clean, reproducible cuts during high machine acceleration.
Tool-free service access
Protective lenses are designed for quick access and tool-free replacement to reduce service time.
Flexible machine integration
One platform supports flatbed, tube, profile and 3D free-form cutting configurations.

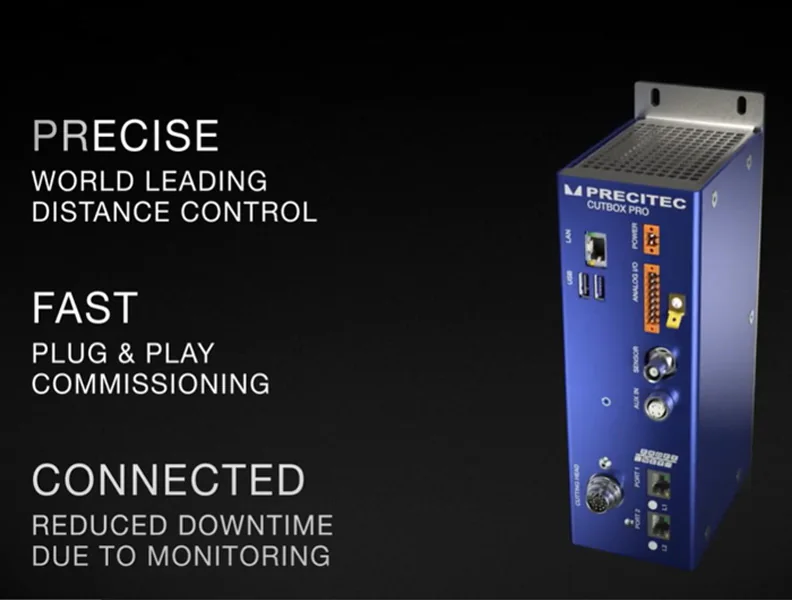

CutBox Pro connectivity
Fieldbus communication brings focus control and process-data signals into the machine PLC environment.
Integrated cooling
Cooling and process-protection-glass monitoring support stable results during continuous operation.
Dynamic focus drive
The focus system is designed for short non-productive time across defined industrial processes.
ProCutter Thunder specifications
Use these published values for initial evaluation. Final Wavlon engineering review confirms the production configuration.
| Maximum laser power | 6.6–12 kW |
|---|---|
| Applications | 2D flatbed cutting · Tube and profile cutting · 3D free-form cutting |
| Collimating focal length | 100 mm |
| Focusing focal lengths | 2D: 150 / 200 mm · 3D: 200 mm |
| Maximum NA | 0.12 max. |
| Dimensions | 116 × 113 mm (W × D) |
| Weight | Not published on the reviewed product page |
| Wavelength | Confirm for selected laser-source configuration |
Match the entire optical path
Wavlon reviews the source fiber, connector, head optics, focus range, cooling, controller and machine kinematics together.
- Laser-source power, wavelength and beam delivery
- Material family, thickness range and assist gas
- Flatbed, tube, profile, 3D or bevel motion
- Piercing strategy, monitoring and maintenance goals
ProCutter Thunder Gallery
Locally hosted, optimized copies of the official product images support faster browsing and reliable product presentation.
Configure ProCutter Thunder with the right source and controller.
Our team will confirm compatibility, options, lead time and the complete machine specification.
