TubeCut Double Chuck Tube Laser
1,500W – 12,000W · Four Models · ⌀120mm – 360mm

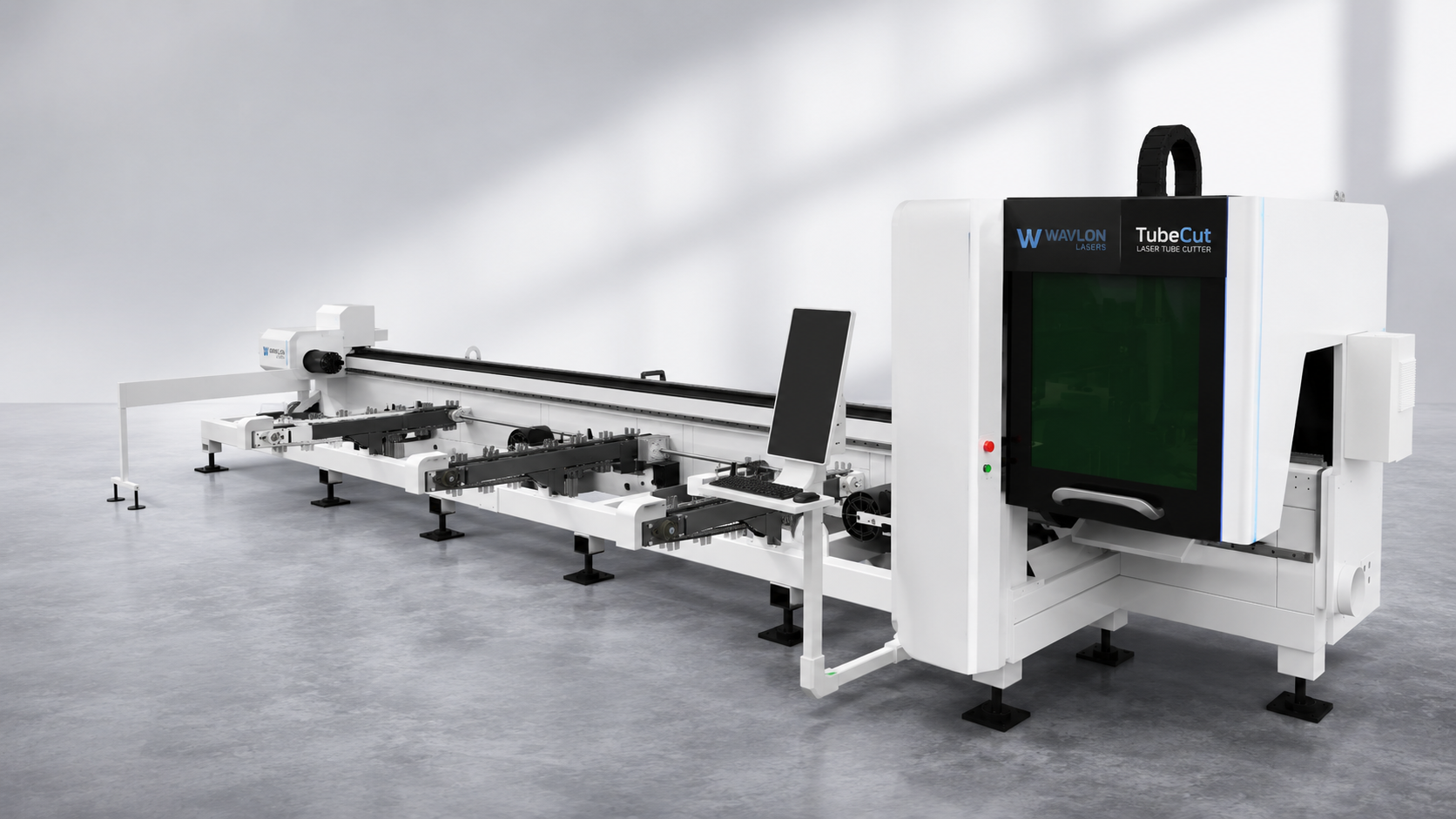

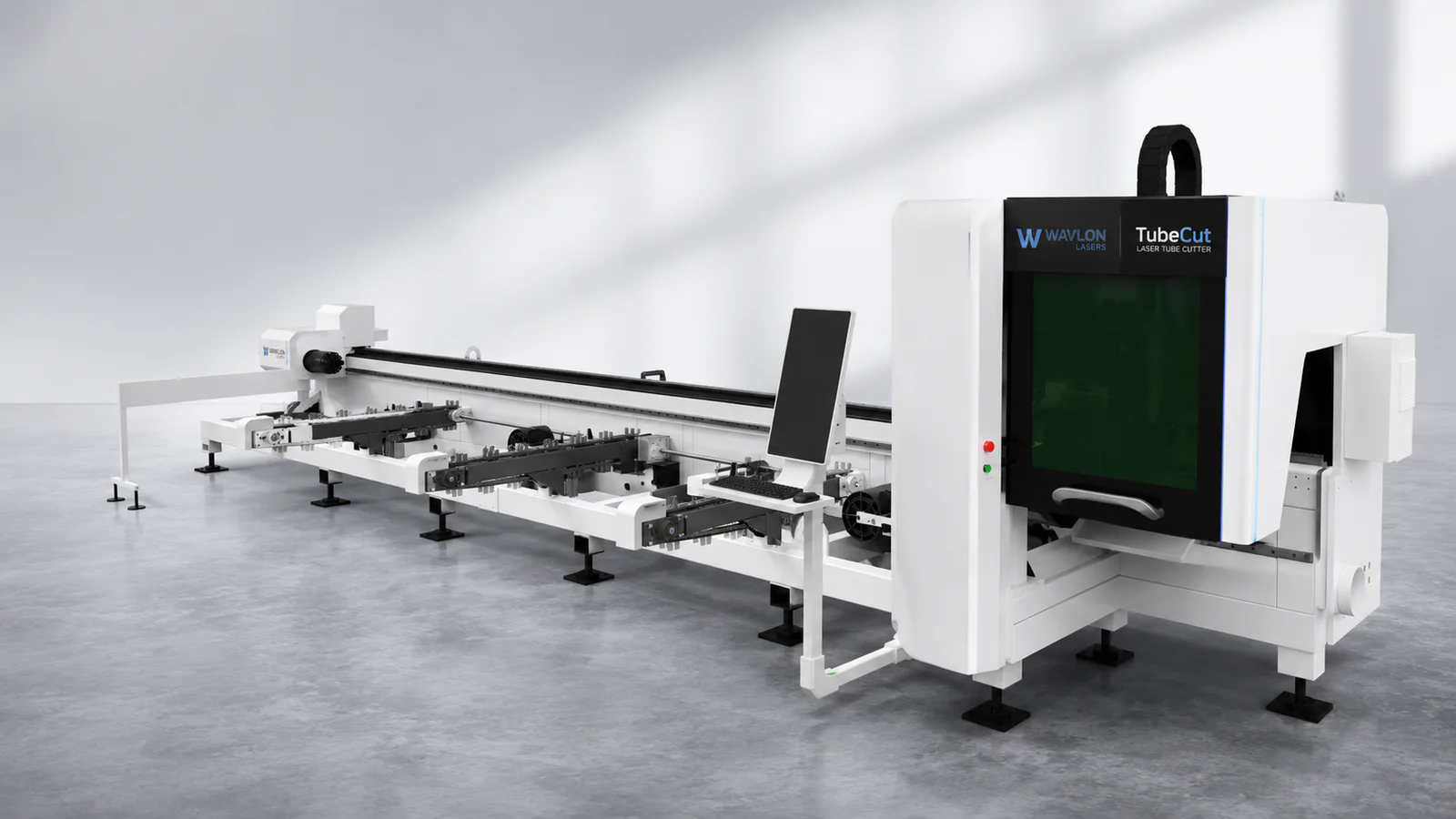

TubeCut Double Chuck is Wavlon's entry-to-intermediate fiber laser tube cutting platform, built around a precision double-chuck design. Four models — TDC-120, TDC-160, TDC-240, and TDC-360 — cover round, square, and rectangular profiles on a 6,000mm bed, scaling from small job-shop entry points up to growing fabrication shop throughput.

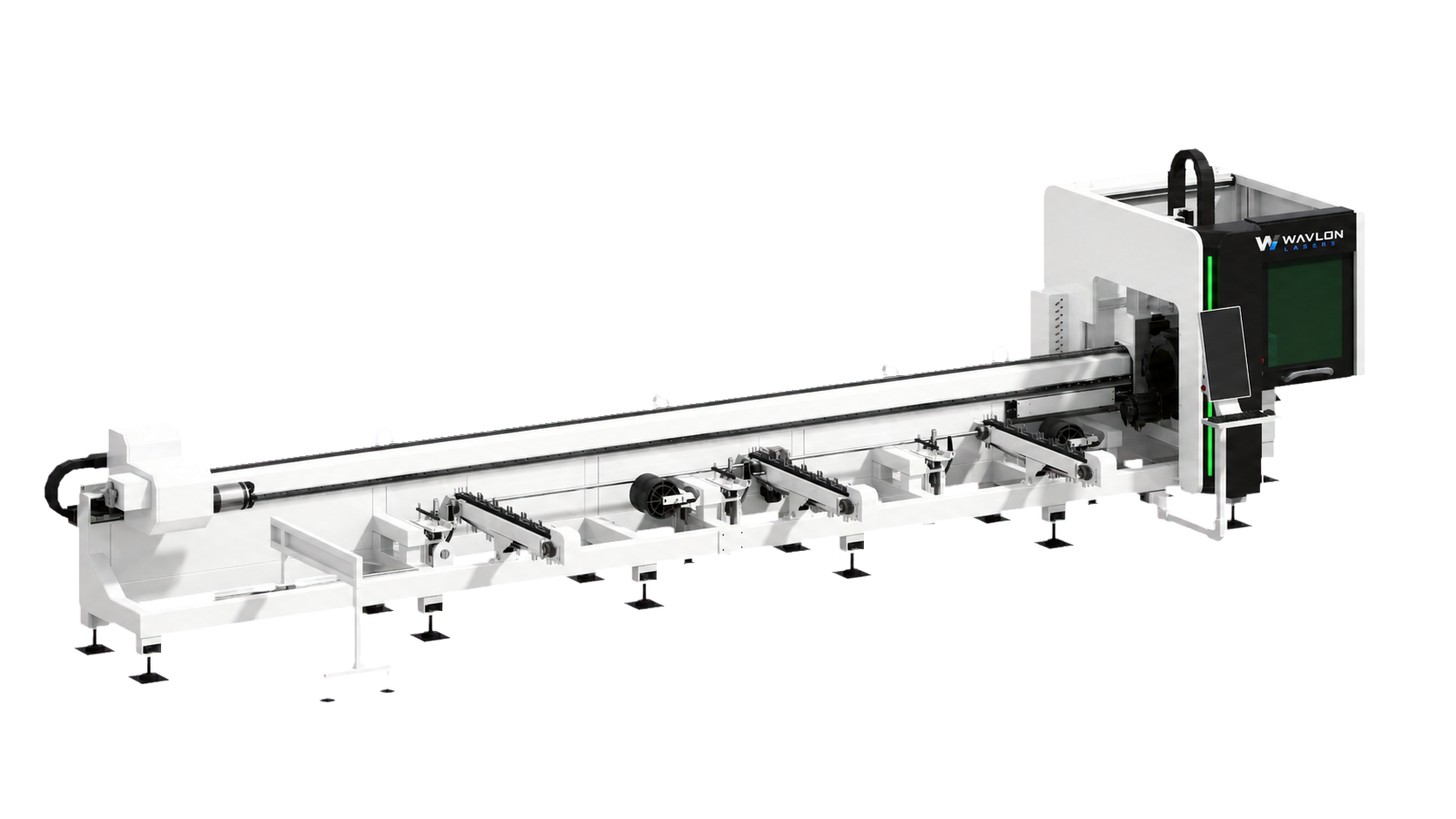

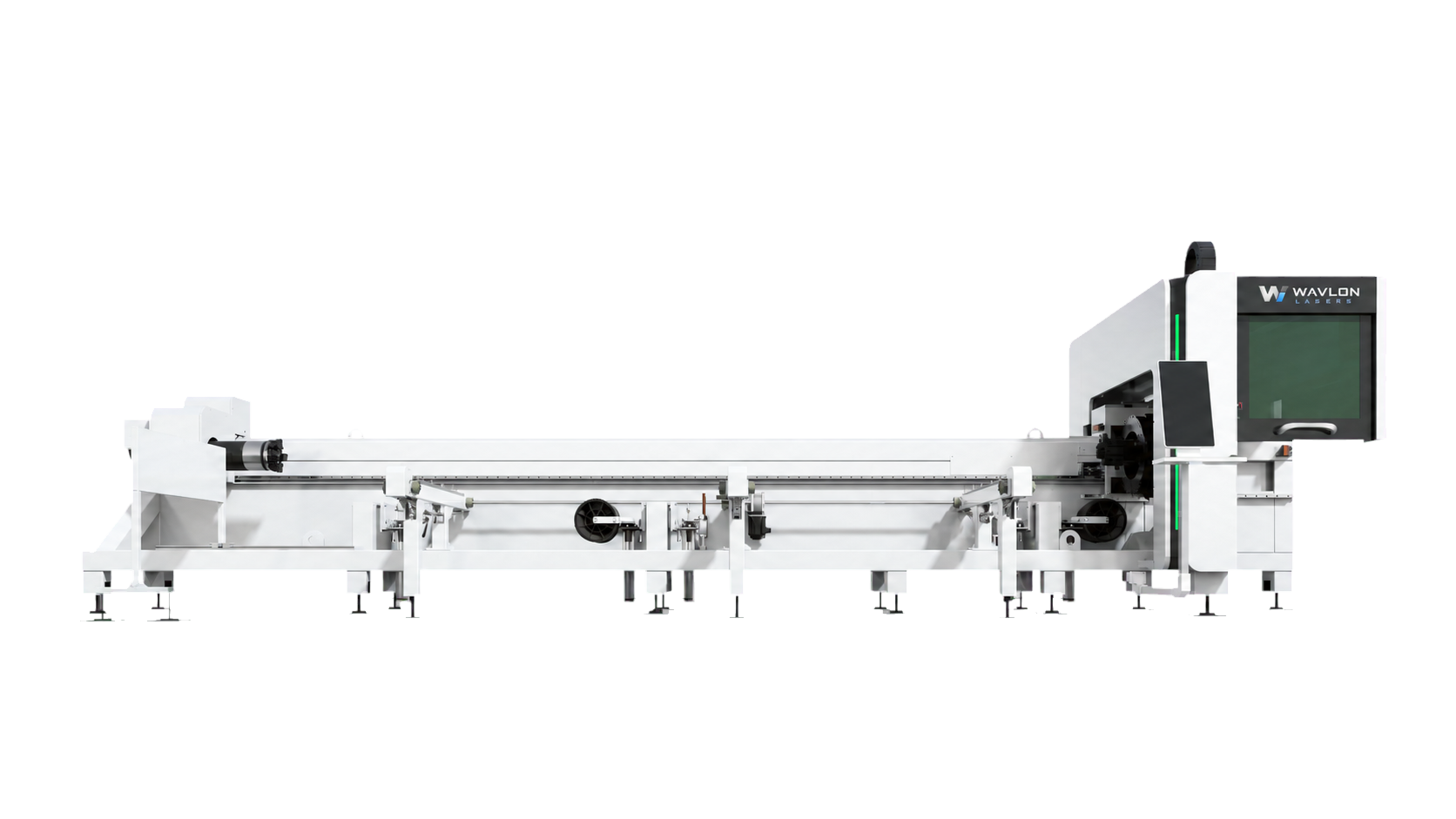

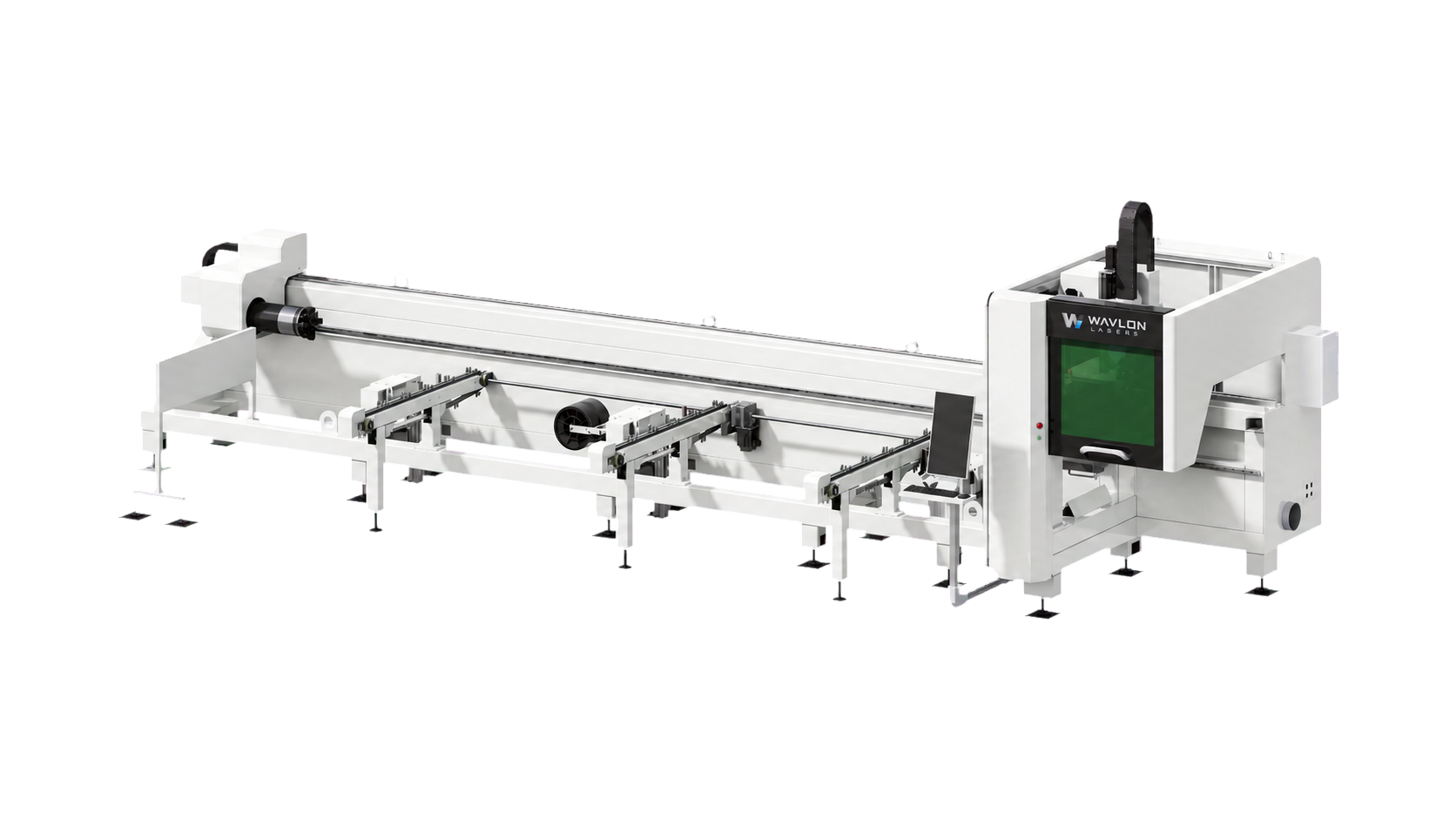

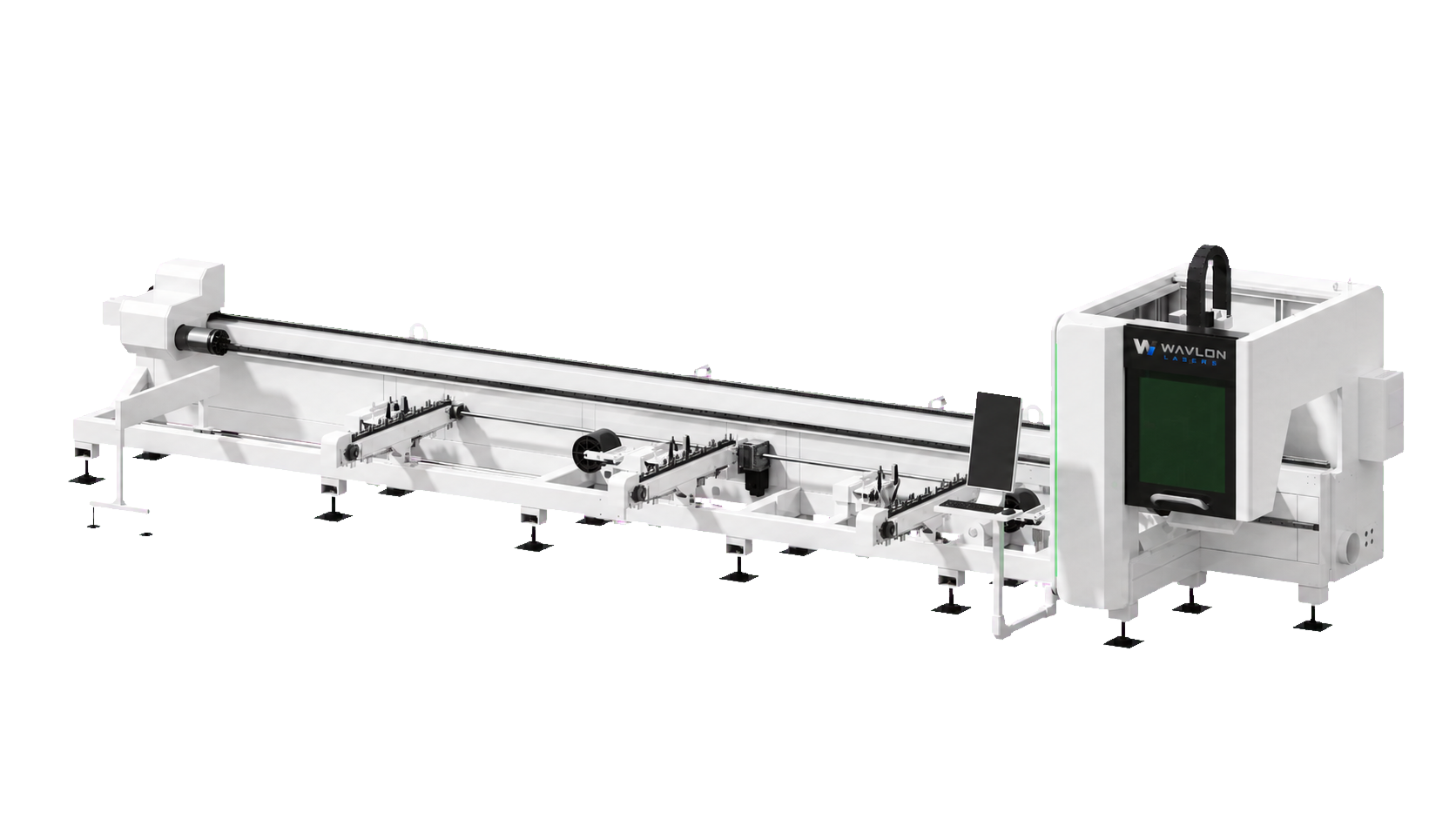

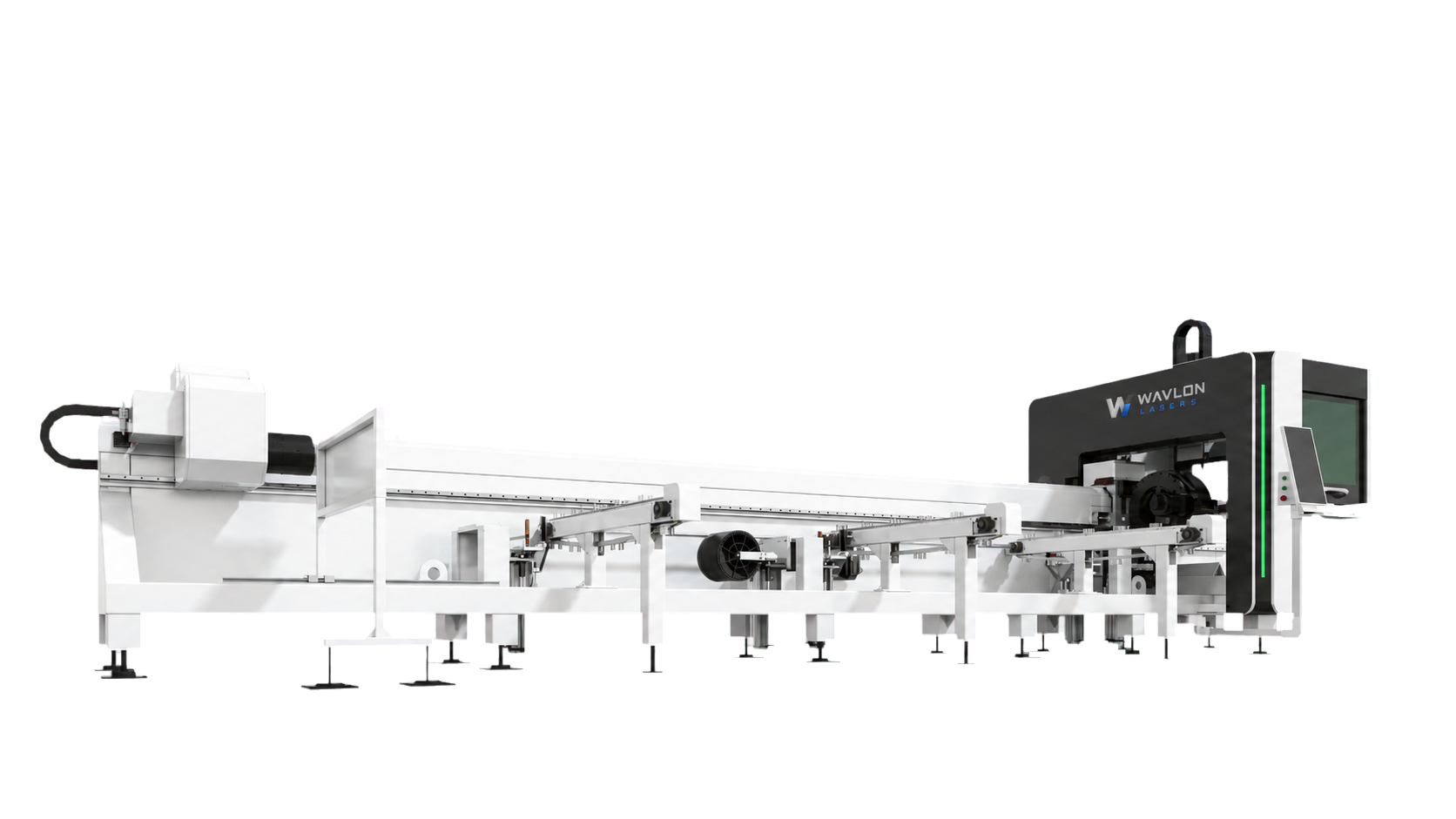

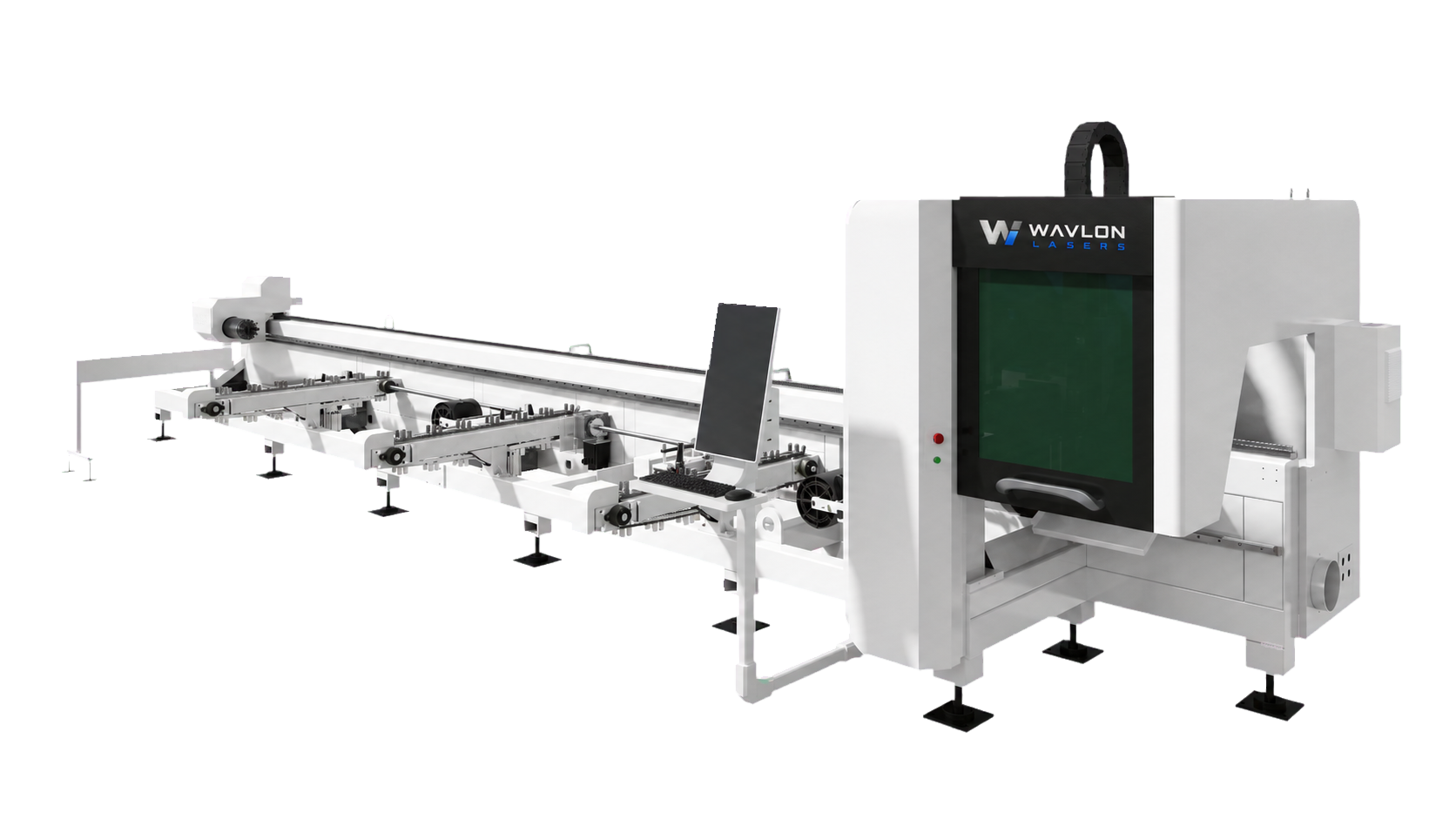

TubeCut Double Chuck From Every Angle
Explore the machine platform, cutting enclosure, chuck system, material supports, and operator station.
Four Models, Two Tiers
Entry tier for first-time tube laser buyers, Intermediate tier for shops scaling diameter capacity and throughput.
| Model | Tier | Max ⌀ Round | Max ⌀ Square | Power Options | Bed Length |
|---|---|---|---|---|---|
| TDC-120 | Entry | 120mm | 120mm | 1.5 / 2 / 3 kW | 6,000mm |
| TDC-160 Popular | Entry | 160mm | 160mm | 2 / 3 / 4 / 6 kW | 6,000mm |
| TDC-240 Popular | Intermediate | 240mm | 240mm | 4 / 6 / 8 kW | 6,000mm |
| TDC-360 | Intermediate | 360mm | 360mm | 6 / 8 / 12 kW | 6,000mm |
TDC-240 Technical Specs
Specifications shown for TDC-240 (8kW) — a popular mid-line configuration. Full spec sheets for TDC-120/160/240/360 available on request.
Machine Body
| Model | TDC-240 |
| Laser Power | 4 / 6 / 8 kW |
| Max Tube Diameter | 240mm (round) |
| Max Square Section | 240×240mm |
| Bed / Pipe Loading Length | 6,000mm |
| Max Load Weight | 250 kg |
Performance
| Repeat Positioning Accuracy | ±0.05mm |
| Acceleration | ≈1.2G |
| Min. Tail Length | ≈40mm |
| Chuck Rotation | 360° continuous |
| Chuck Count | 2 (double chuck) |
| Profiles Supported | Round, square, rectangular, custom |
Built for Job Shops & Growing Fabricators
Is a double chuck tube laser right for your parts?
A double chuck tube laser holds and rotates tube stock for programmed cutting. Wavlon’s TDC range offers several configurations; select by your profile geometry, wall thickness, stock length, weight and finished-part handling needs. A round-tube diameter limit does not establish the capacity for every rectangular or custom profile.
Which TDC model should I request?
Use the model table above to shortlist a capacity, then send your actual section drawing. Confirm rectangular dimensions, corner geometry, stock weight and loading arrangements for the proposed model. Power, chuck capacity and supported stock weight are separate limits, so review them together.
| Input | What to specify | Why it matters |
|---|---|---|
| Profile | Round diameter or rectangular width and height; grade and wall thickness | Chuck clearance, gripping, support and cutting configuration |
| Stock | Raw length and weight per tube; straightness and surface requirements | Loading, rotation and support review |
| Finished parts | Part length, holes, joints, tolerances and downstream fit | Cutting geometry and unloading requirements |
| Production | Batch mix, required output and acceptable remnant | Nesting, handling time and double-versus-triple-chuck evaluation |
When should I compare a triple chuck machine?
Compare the triple chuck platform when support during transfer, long or heavy parts, unloading control or remnant reduction is a significant part of the business case. Chuck count alone does not establish output or usable yield. Request a review of the same representative jobs on both proposed configurations.
Can I use the minimum tail length as a guaranteed production yield?
No. The specification is configuration-dependent, and the usable remnant also depends on gripping, nesting and part geometry. Ask for the expected remnant and acceptable-part yield for your own stock and job layout before using them in a cost calculation.
Are bevel cutting and automatic loading included?
Confirm the exact cutting-head, motion, software and loading package in the quotation. A profile-cutting demonstration does not establish that every bevel or unattended-loading requirement is included. Describe the joints and handling sequence you need, then agree on how they will be demonstrated.
