Laser cutting head optionProCutter 2.0
Automated high-power cutting for flatbed, tube and bevel systems.
Review the official Precitec product page ↗
Designed for Stable Industrial Cutting
Feature descriptions are summarized from Precitec’s current official product information and presented for configuration guidance.
Up to 85 kW
A high-load thermal and optical design supports industrial cutting configurations up to 85 kW.
Consistent cut quality
The optical and sensor platform is designed for around-the-clock cutting at high laser power.
Intelligent sensors
Integrated monitoring tracks critical components and process parameters for planned maintenance.
PierceTec support
Automated piercing control is designed to improve hole quality and reduce cycle time and rework.
Broad source compatibility
Precitec states compatibility with laser sources in the field; Wavlon validates the final source-head pairing.
Connected diagnostics

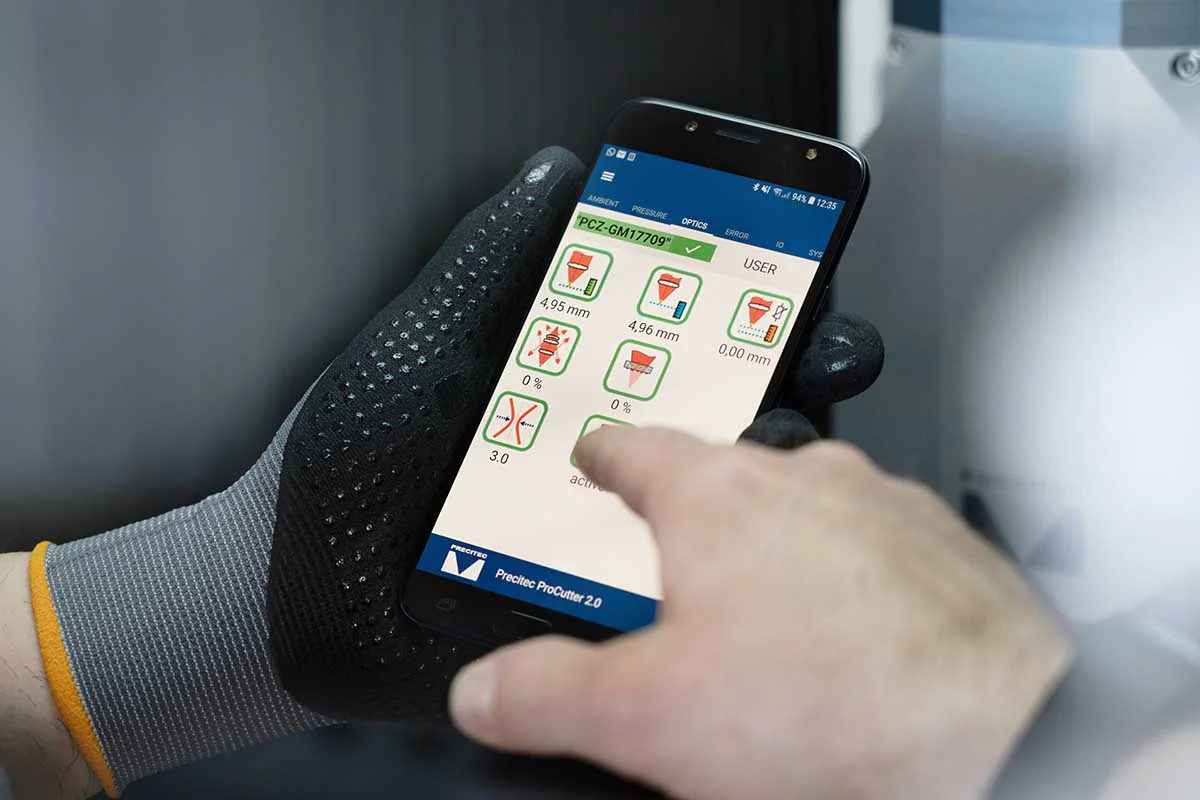

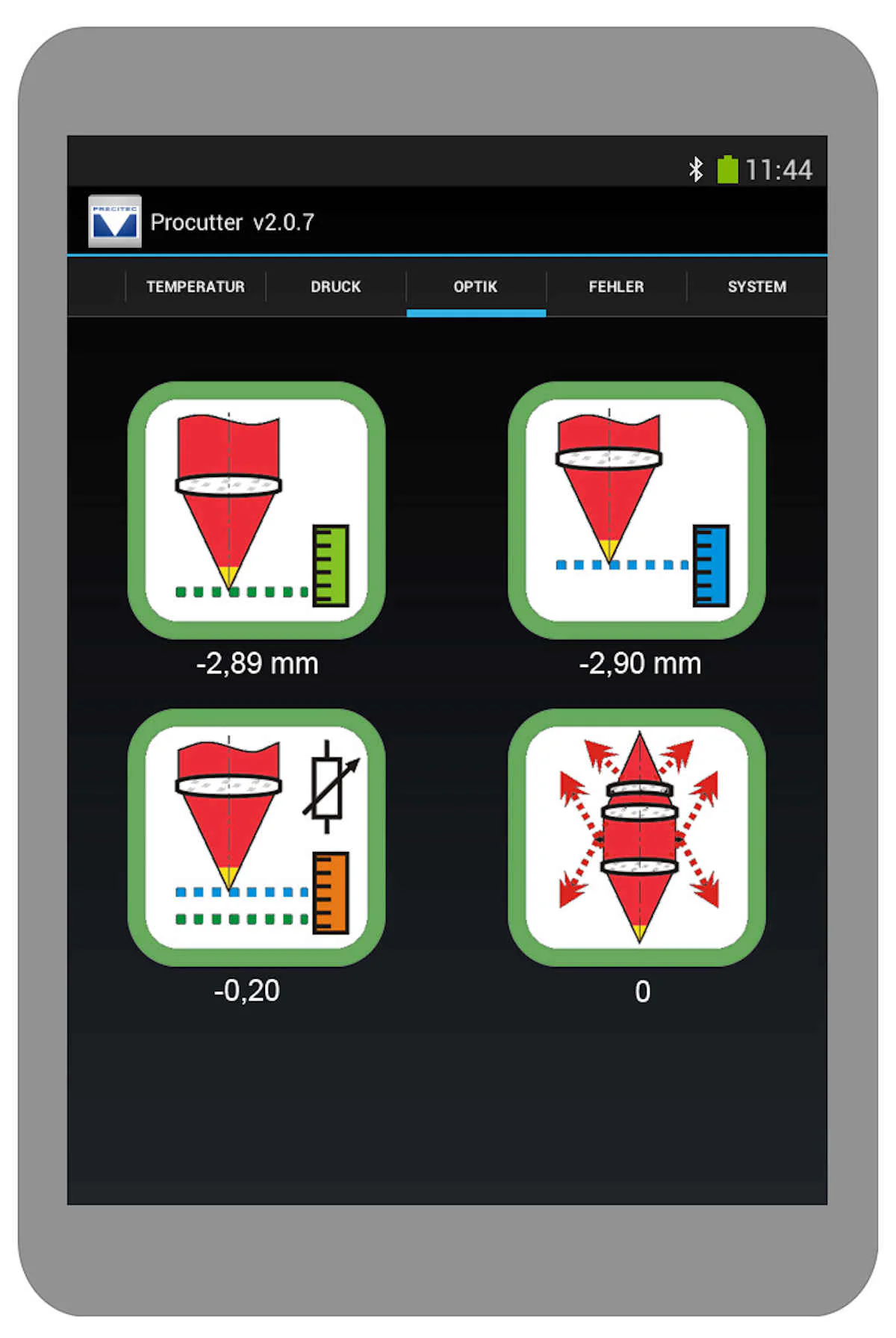

Status and error information can be surfaced through the ProCutter app and machine integration.
ProCutter 2.0 specifications
Use these published values for initial evaluation. Final Wavlon engineering review confirms the production configuration.
| Maximum laser power | Up to 85 kW |
|---|---|
| Applications | 2D flatbed cutting · Tube cutting · Bevel cutting |
| Collimating focal length | 100 mm |
| Focusing focal lengths | 150 / 200 / 250 / 300 mm by power level |
| Maximum NA | 0.13 / 0.16 |
| Dimensions | 96 × 134 mm (W × D) |
| Weight | 6.9 kg (M 3.0) |
| Wavelength | 1030–1090 nm |
Match the entire optical path
Wavlon reviews the source fiber, connector, head optics, focus range, cooling, controller and machine kinematics together.
- Laser-source power, wavelength and beam delivery
- Material family, thickness range and assist gas
- Flatbed, tube, profile, 3D or bevel motion
- Piercing strategy, monitoring and maintenance goals

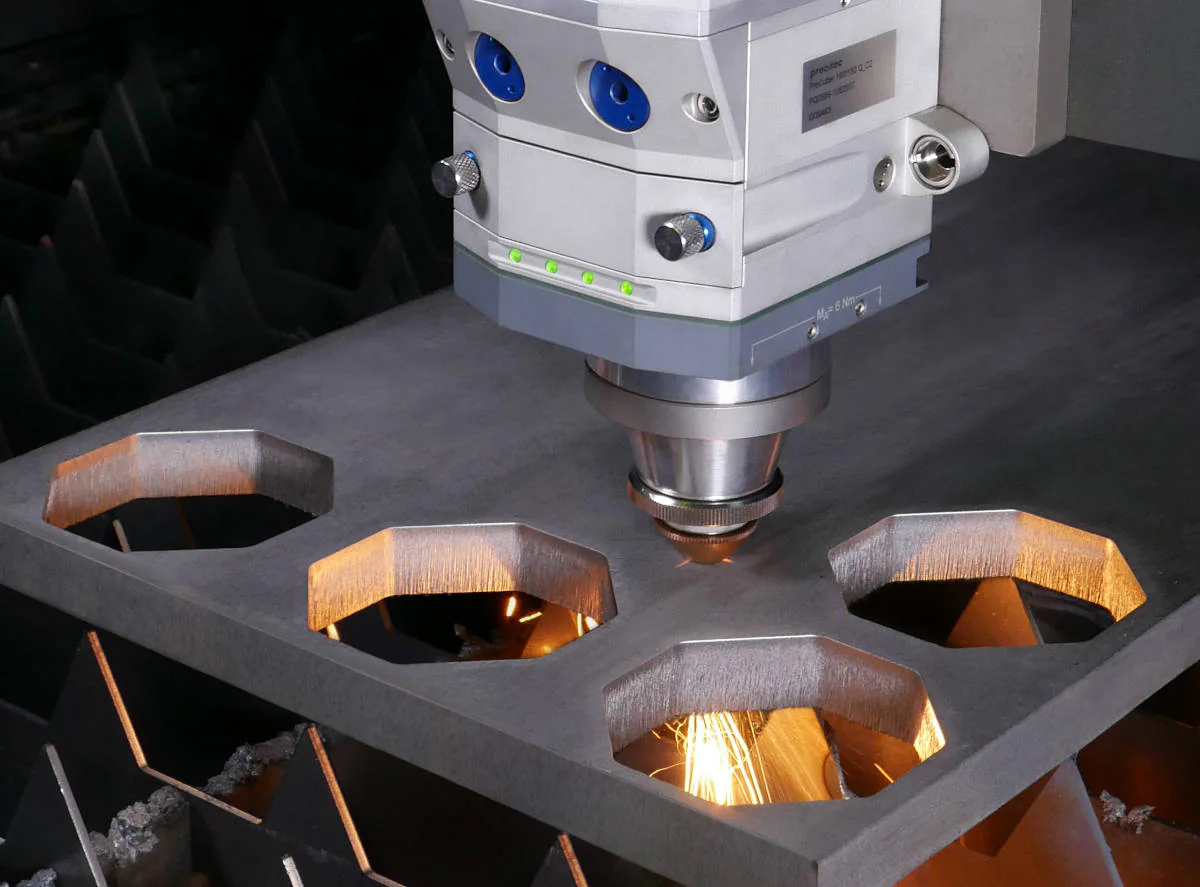

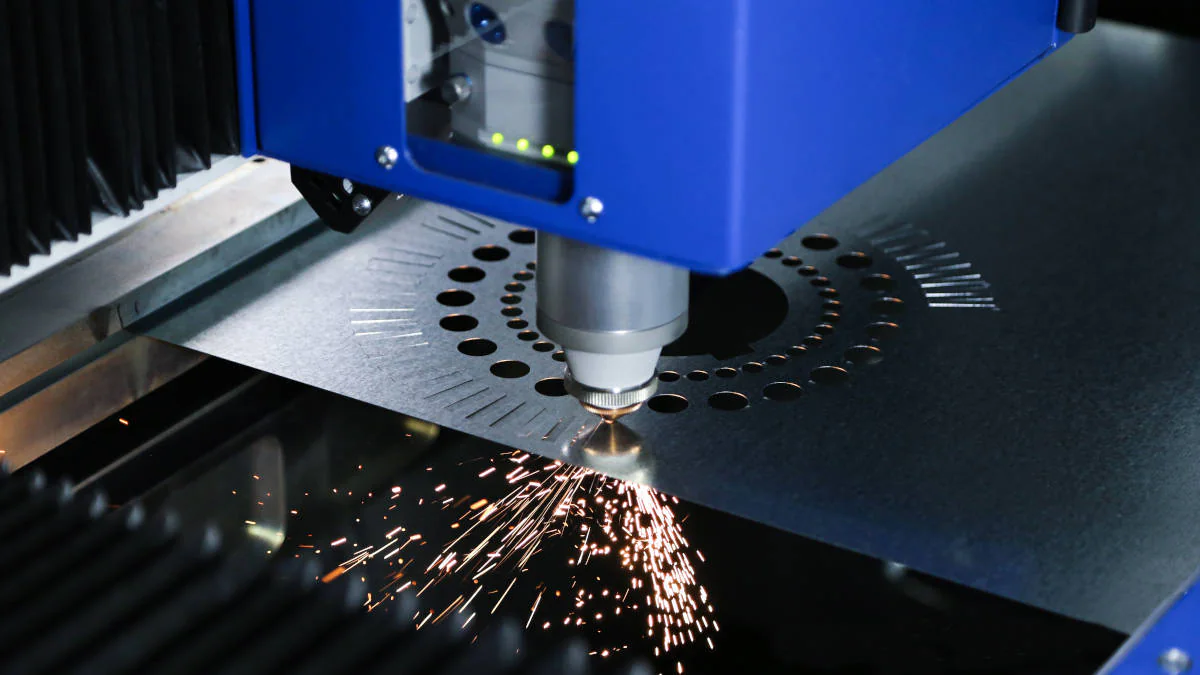

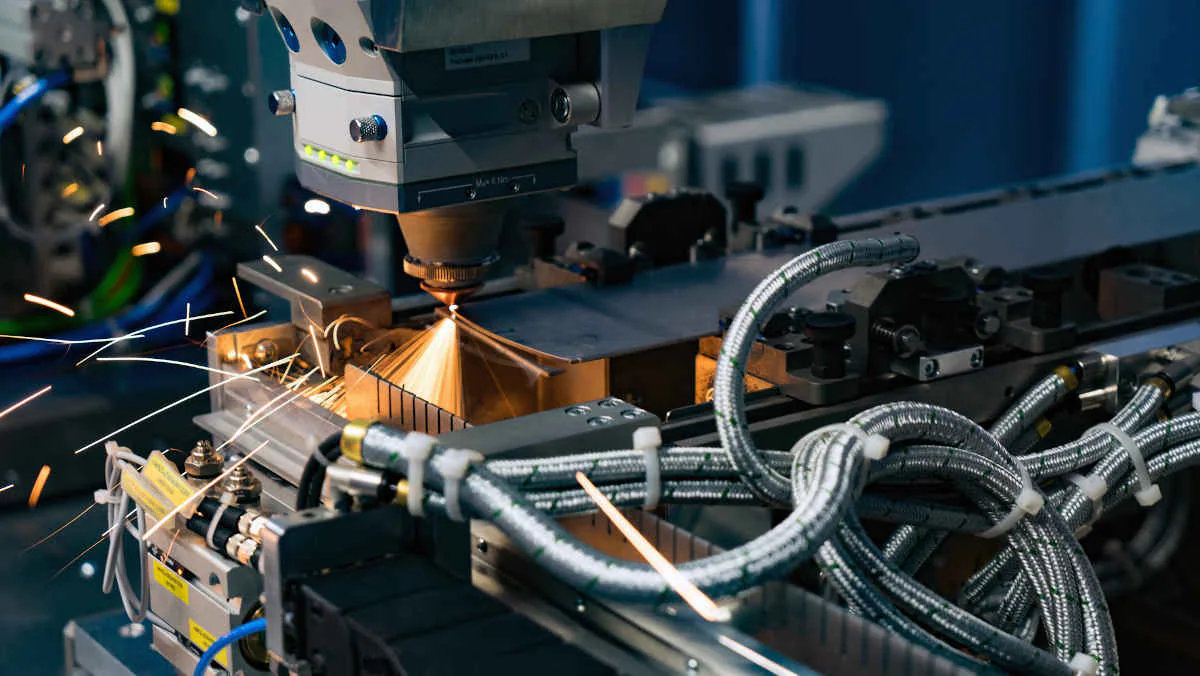

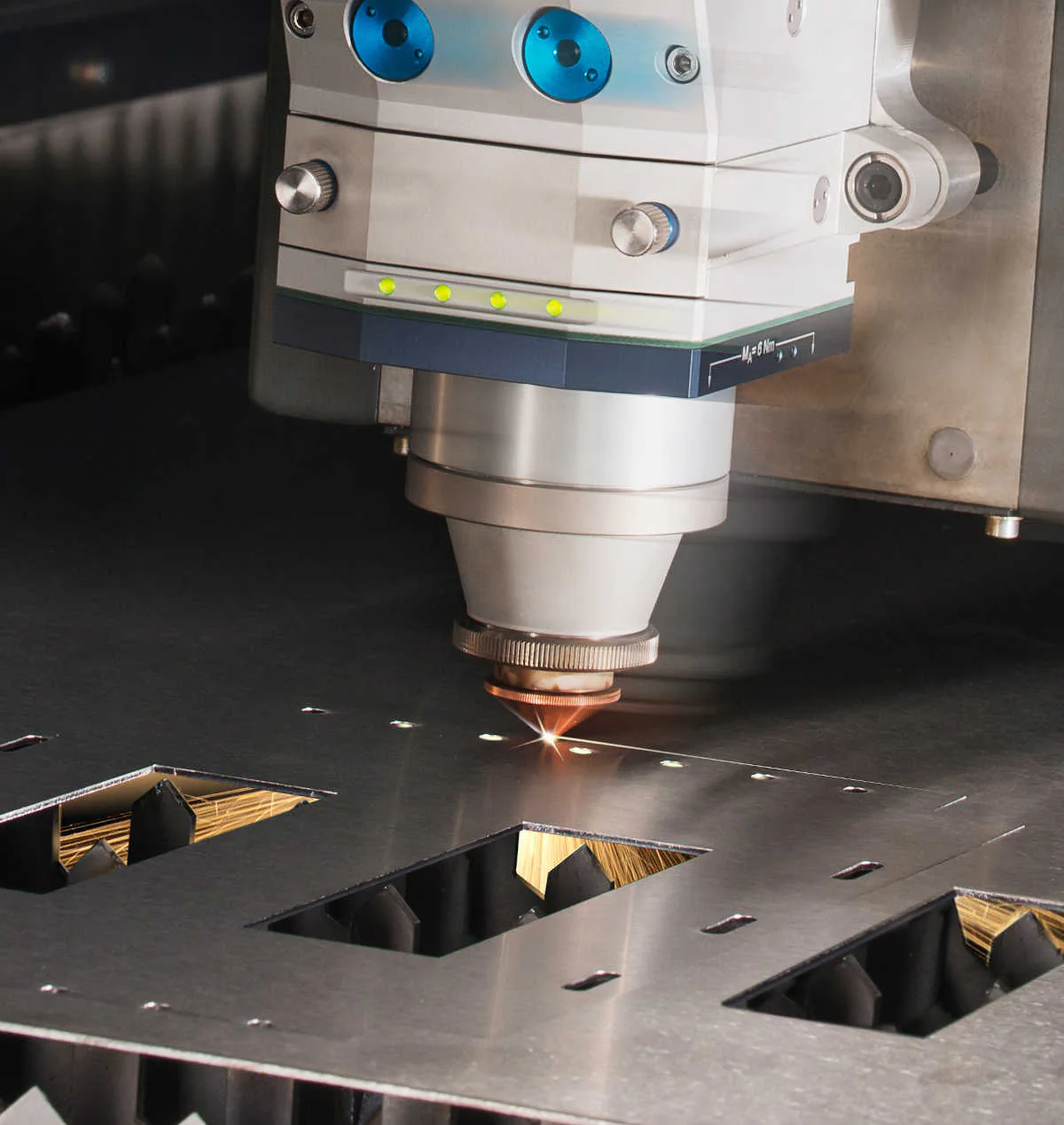

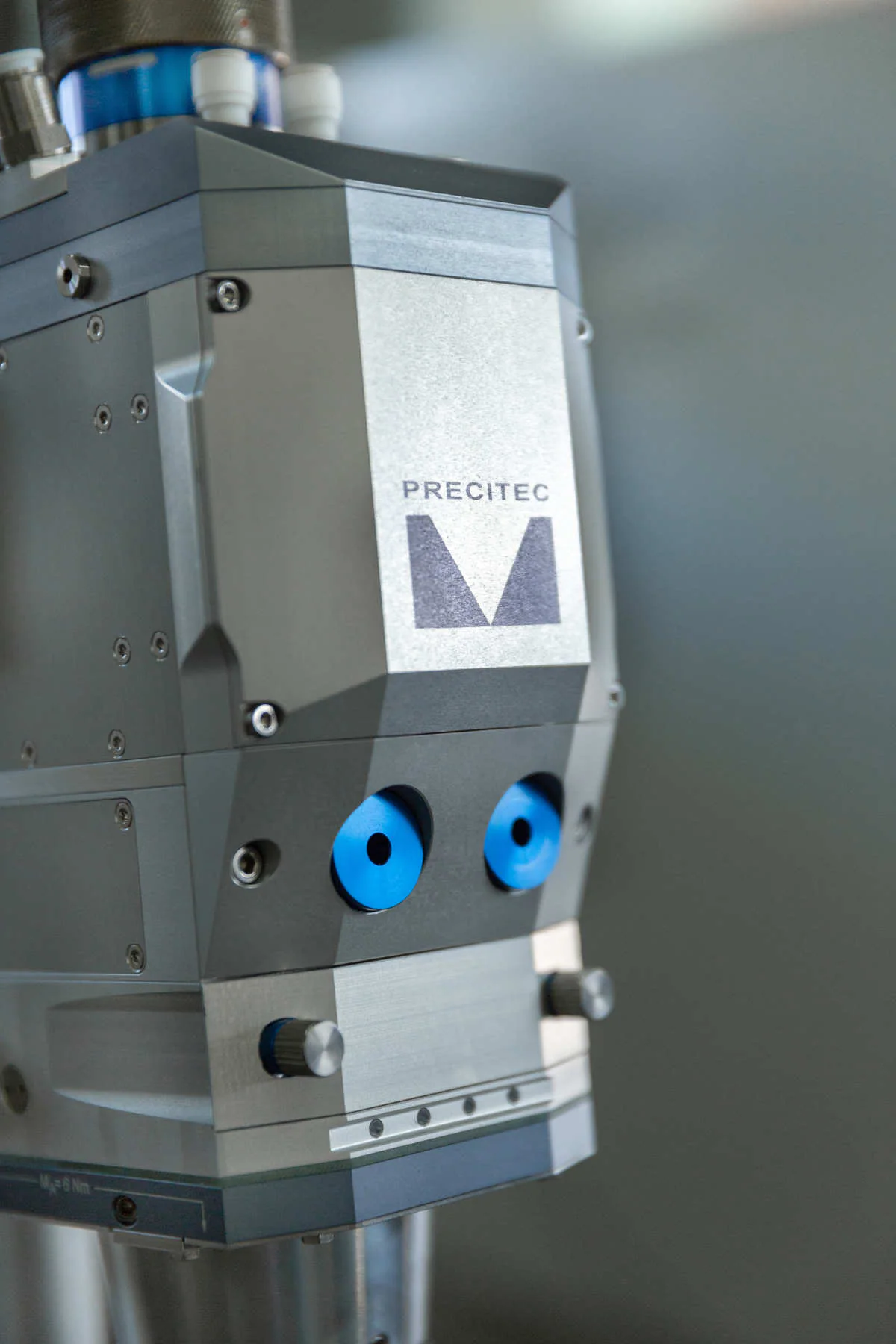

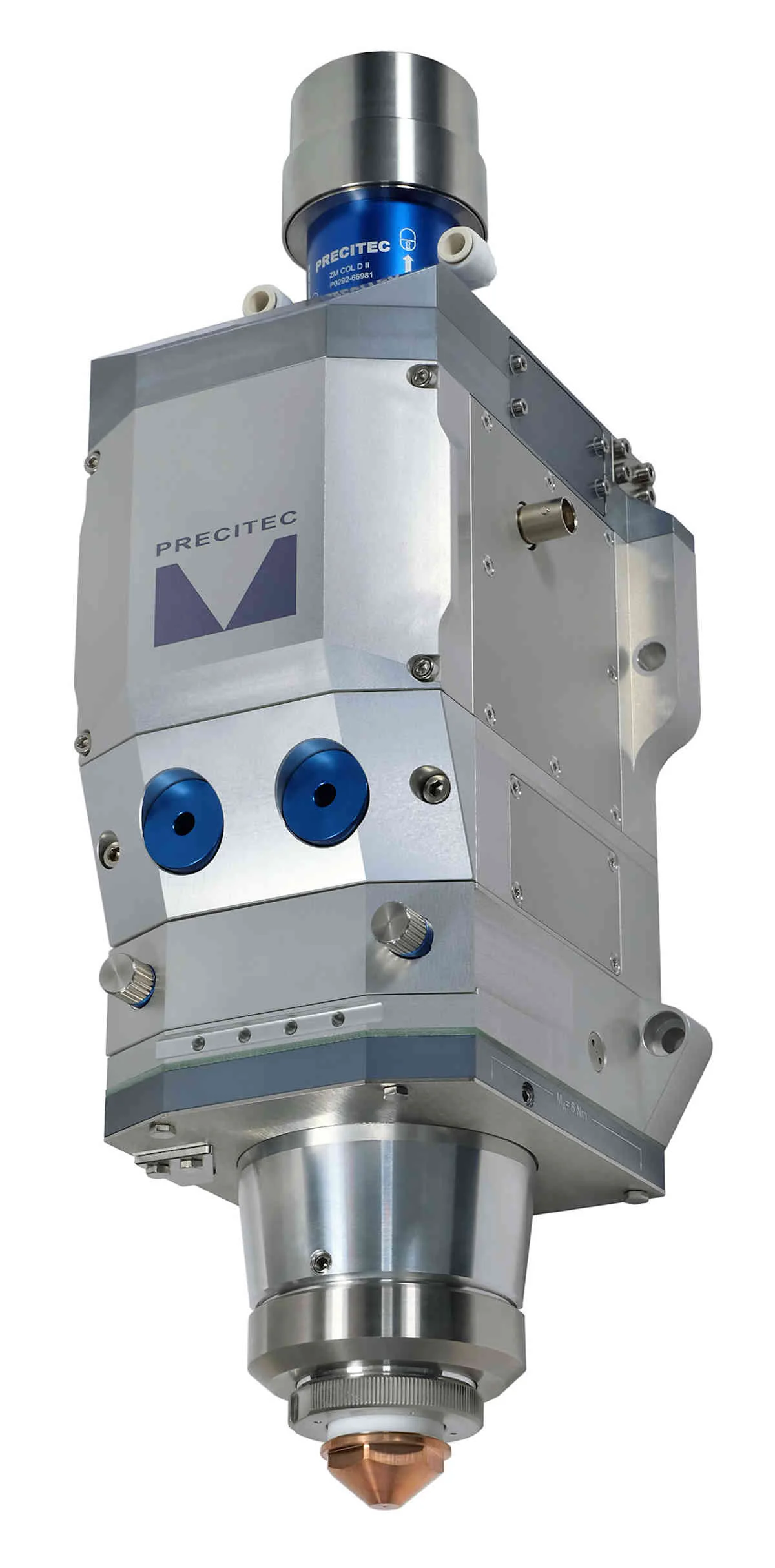

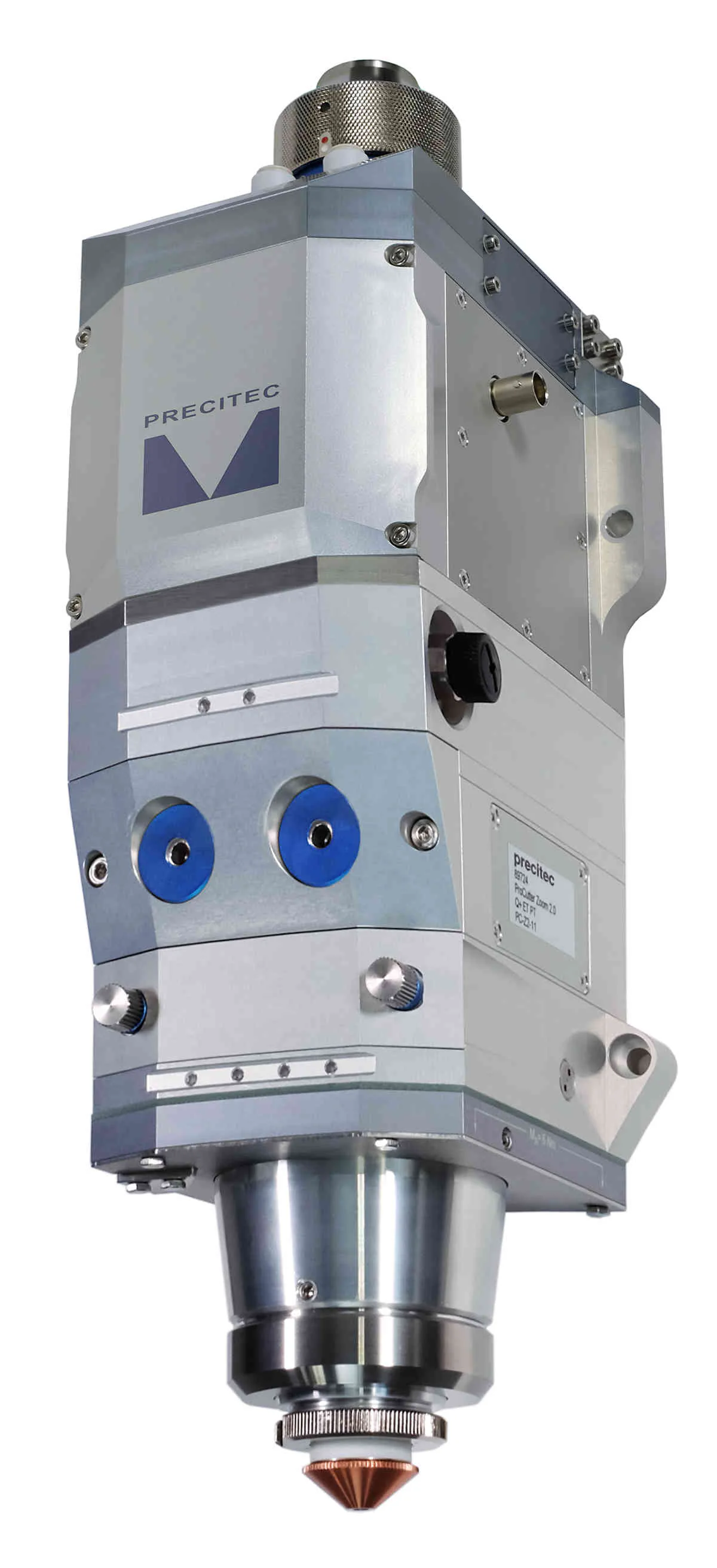

ProCutter 2.0 Gallery
Locally hosted, optimized copies of the official product images support faster browsing and reliable product presentation.
Configure ProCutter 2.0 with the right source and controller.
Our team will confirm compatibility, options, lead time and the complete machine specification.
