Fully Enclosed Fiber Laser Sheet Cutting

PowerCut Enclosed Fiber Laser Cutter

WL-3015F · WFC Series

A fully enclosed, single-table fiber laser cutter built for shops that need optical safety, faster cycle times, and a cleaner environment — without the complexity of dual-exchange tables.

12kW
Max Power
120m/min
Traverse Speed
1.2G
Acceleration
35mm
Max Steel
±0.03mm
Accuracy
Request a Quote → Watch in Action View Full Specs

Before you request a quote

Is PowerCut the right fit for your work?

Enclosed cabin. Sheet work where an enclosed cutting area is a priority. Review bed access, loading sequence and extraction requirements. Share your material grade, typical thickness, largest sheet size and production volume so the proposed configuration can be assessed against your work.

For a useful comparison, ask for cutting conditions and part-quality criteria alongside the machine specification. Include your delivery location and target purchase timing if known.

Watch It Work

PowerCut Series — In Action

See the WL-3015F fully enclosed fiber laser cutting machine in a real production environment.

Machine Overview

The WL-3015F Enclosed Platform

Three angles of the PowerCut Series — a compact, professional-grade fully enclosed fiber laser cutter designed for mid-tier job shops and production facilities.

PowerCut WL-3015F front view
Front View

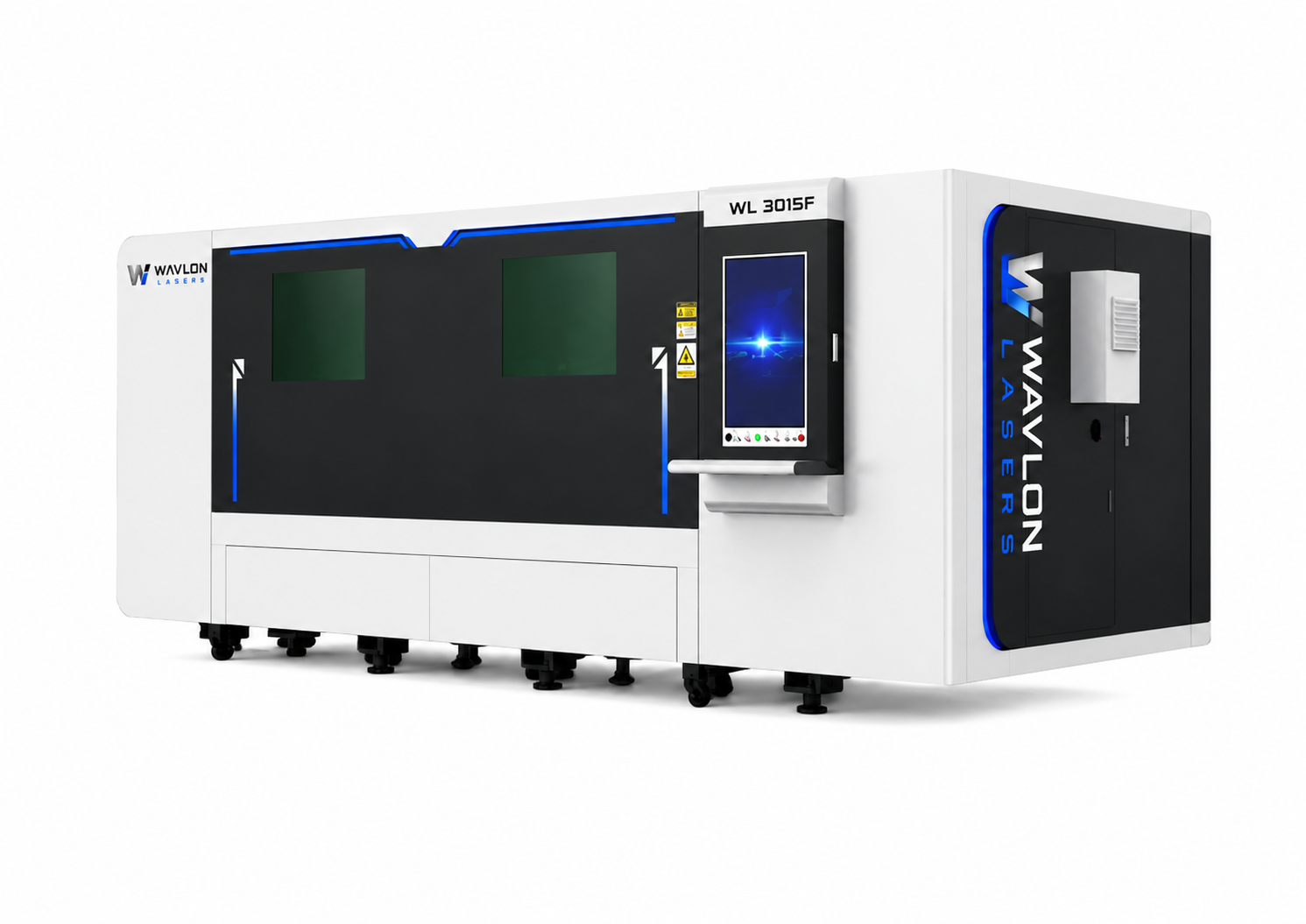

PowerCut WL-3015F right-hand side
Right Side

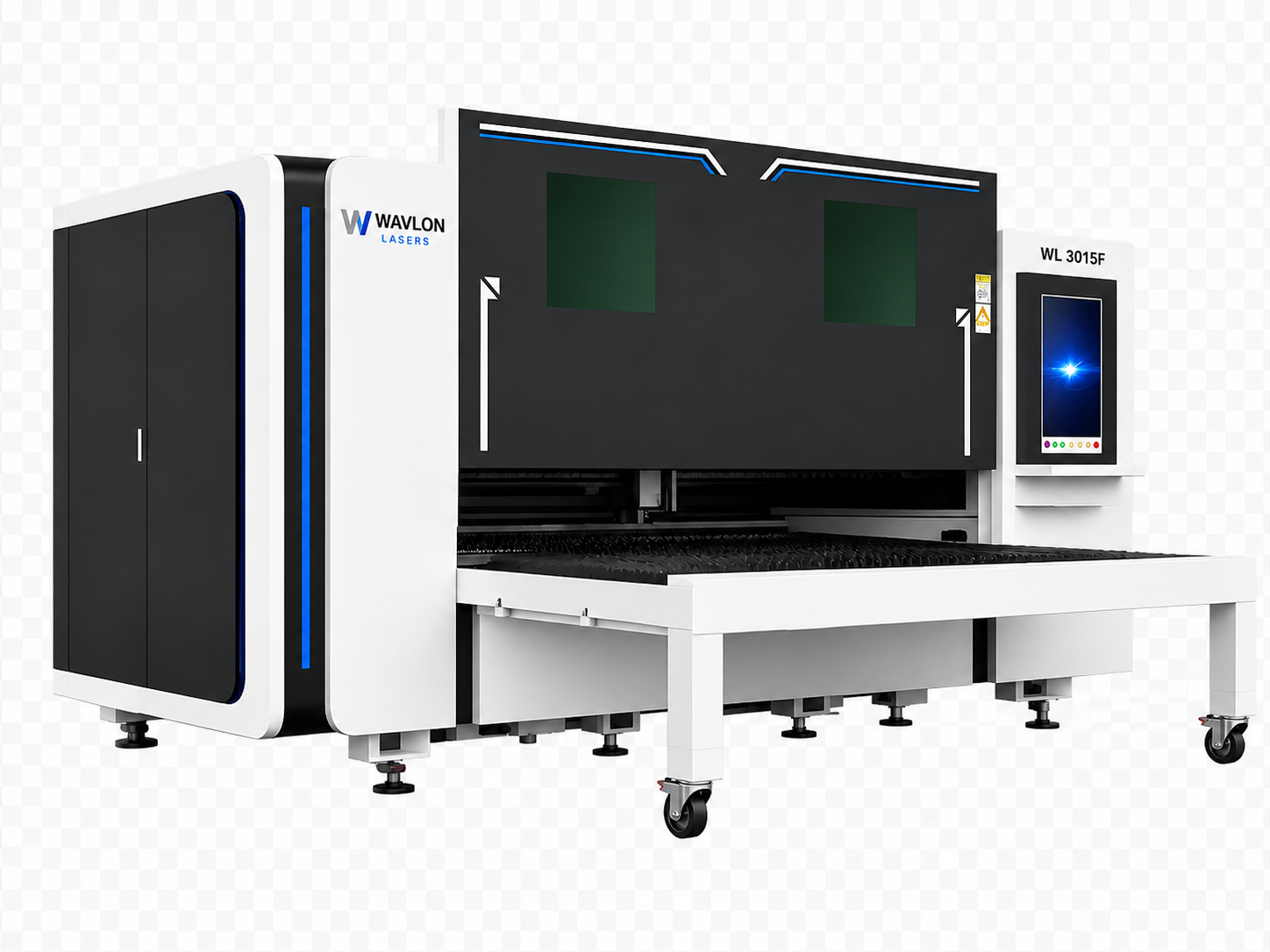

PowerCut WL-3015F left-hand side
Left Side
Power Options

Choose Your Model

Three power levels on the same WL-3015F platform — 3080 × 1540 mm working area on all models.

3 kW
Entry Level
WFC-3015-3K
Carbon Steelup to 16 mm
Stainless Steelup to 8 mm
Aluminumup to 6 mm
Laser HeadBLT-310
Speed120 m/min
Acceleration1.2 G
Get a Quote
6 kW
Most Popular
WFC-3015-6K
Carbon Steelup to 22 mm
Stainless Steelup to 12 mm
Aluminumup to 10 mm
Laser HeadBLT-421S
Speed120 m/min
Acceleration1.2 G
Get a Quote
12 kW
High Performance
WFC-3015-12K
Carbon Steelup to 35 mm
Stainless Steelup to 20 mm
Aluminumup to 16 mm
Laser HeadBLT-442
Speed120 m/min
Acceleration1.2 G
Get a Quote

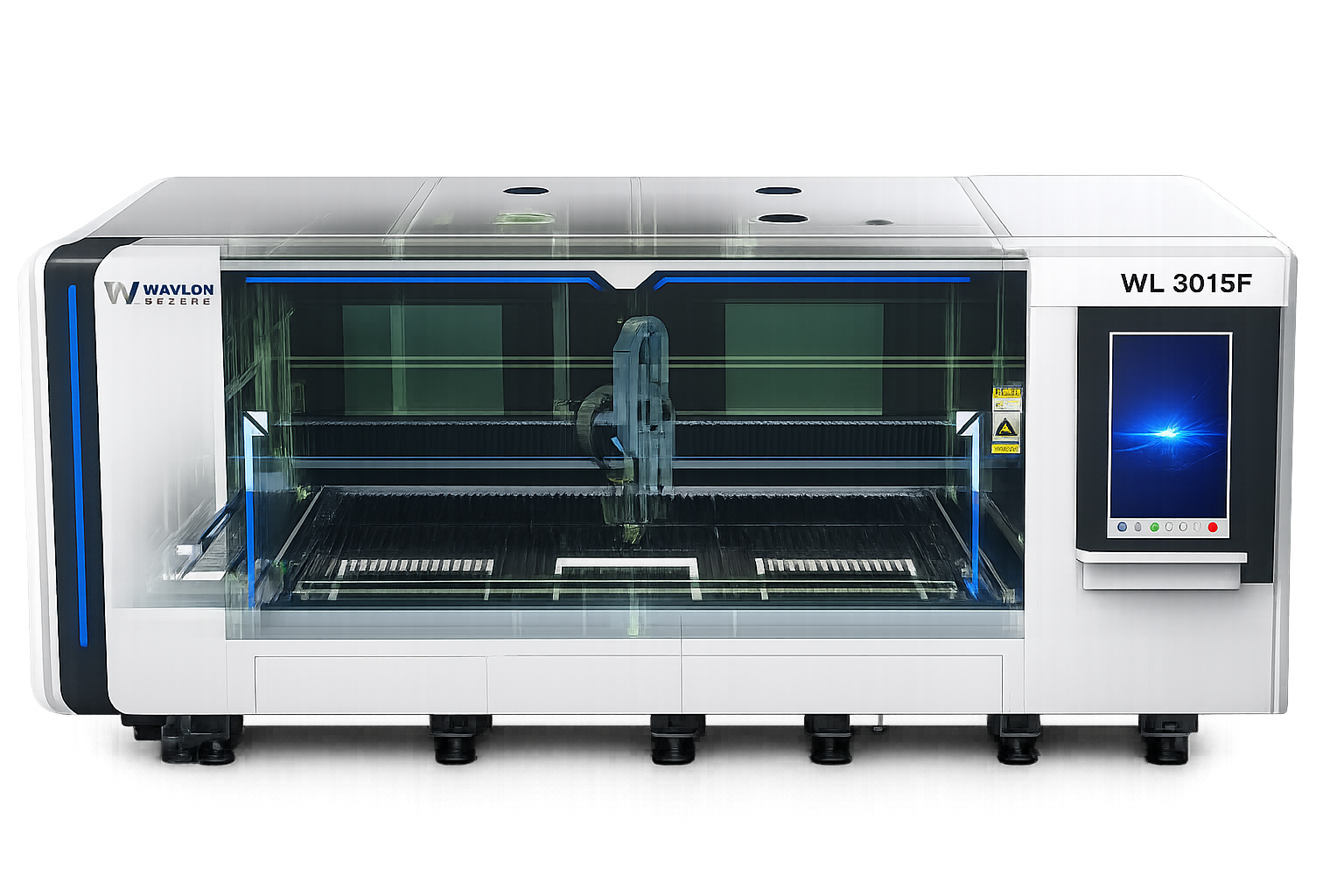

PowerCut fully enclosed safety cabin — sectioned view
Full Optical Enclosure

Enclosed Cutting — Plan Safety for the Installed System

The PowerCut uses a full-perimeter cutting cabin. Confirm the laser safety classification, interlocks, extraction requirements and applicable approvals for the quoted configuration and completed installation. An enclosure alone does not establish compliance for your facility.

Full optical enclosure on all four sides — no exposed beam paths
Laser-safe viewing windows with auto-darkening protection
Fume and dust contained inside — cleaner shop environment
Reduced noise levels vs. open-gantry machines
Interlock system halts cutting when doors open mid-cycle

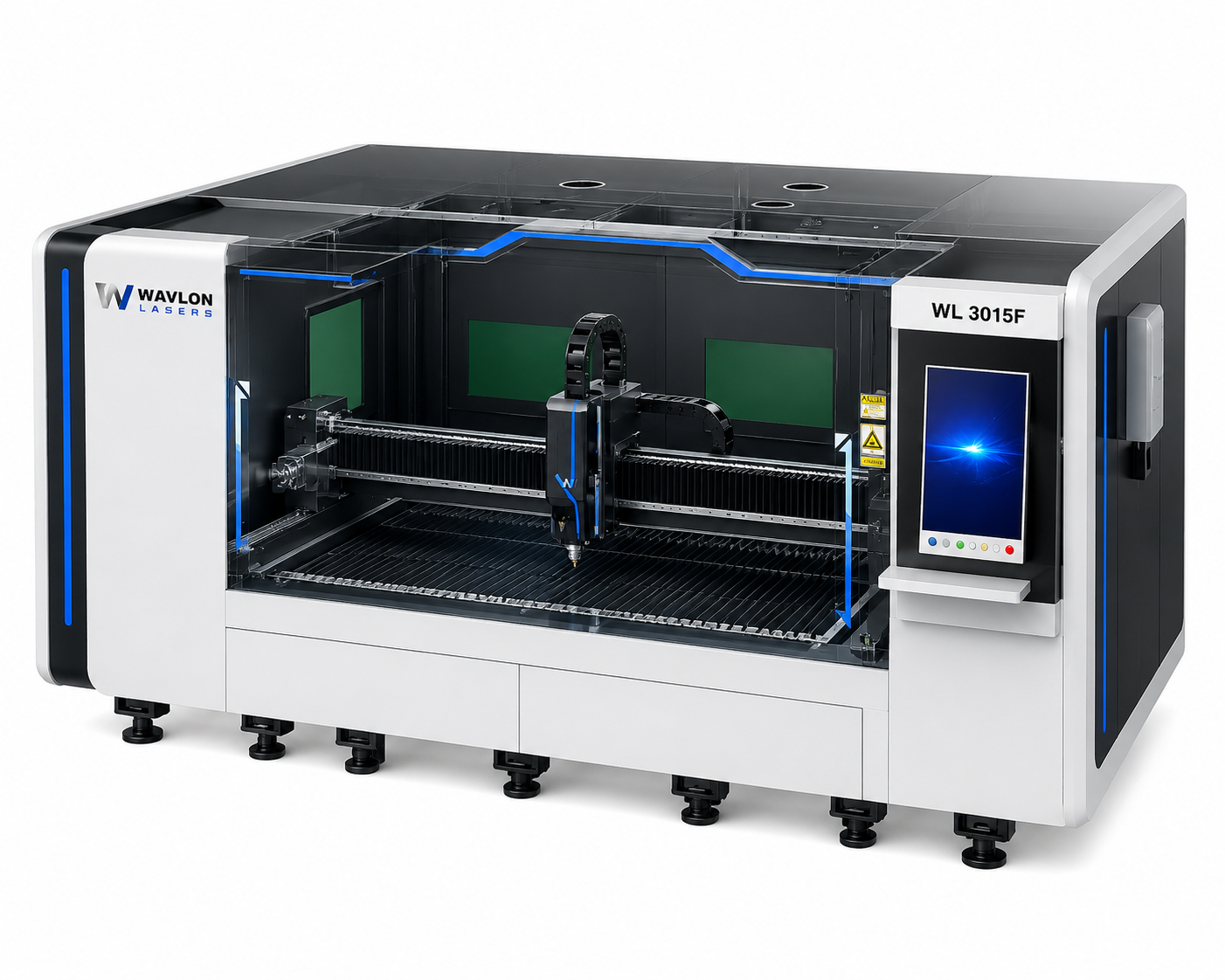

PowerCut WL-3015F interior — cross section
Precision-Built Interior

Every Component Placed for Performance

The WL-3015F internal layout is engineered for rigidity, thermal stability, and serviceability. The crossbeam travels on heavy German ROUST linear rails. The cutting table and slat system handle full 3015 sheets. Everything is accessible via large service panels for fast maintenance.

Heavy steel plate welded machine bed — vibration damping for accurate cuts
ROUST (Germany) linear guide rails on X and Y axes
Eblun (Taiwan) helical rack and pinion — smooth, backlash-free motion
Techmech precision reducers on all servo axes
Full-access service panels on all sides

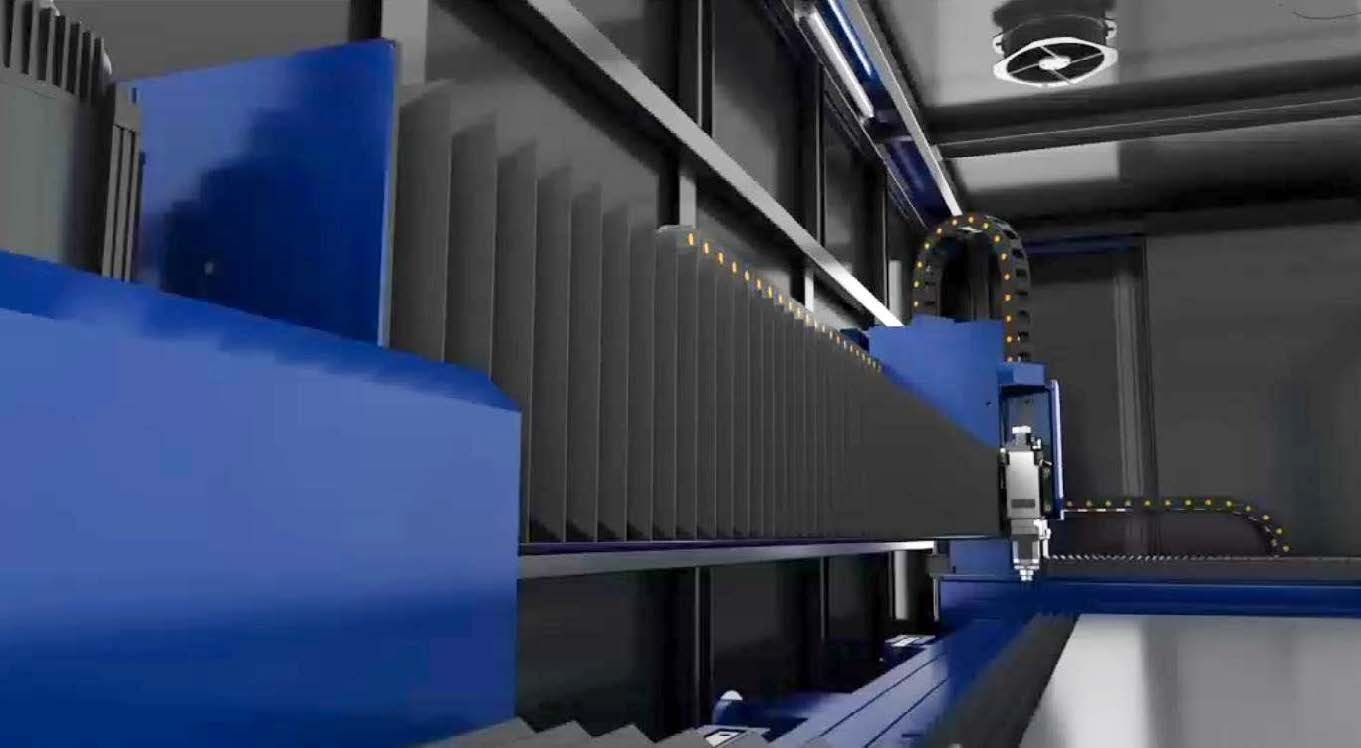

WL-3015F cross beam and BOCI BLT laser head
Cutting Head System

BOCI BLT Laser Heads — Auto-Focus, Auto-Calibrate

Every PowerCut ships with a BOCI BLT series cutting head matched to the laser power. The BLT-310 (3 kW), BLT-421S (6 kW), and BLT-442 (12 kW) all feature automatic focus positioning, IP65 protection, and built-in collision protection to keep the nozzle safe if it contacts material.

Auto-focus: no manual nozzle height adjustment between materials
IP65 rated — protected from fumes, slag dust, and moisture
Collision protection system — head retracts on contact impact
Optical path sealed and pressurized — no contamination of optics
Compatible with optional Precitec ProCutter upgrade head

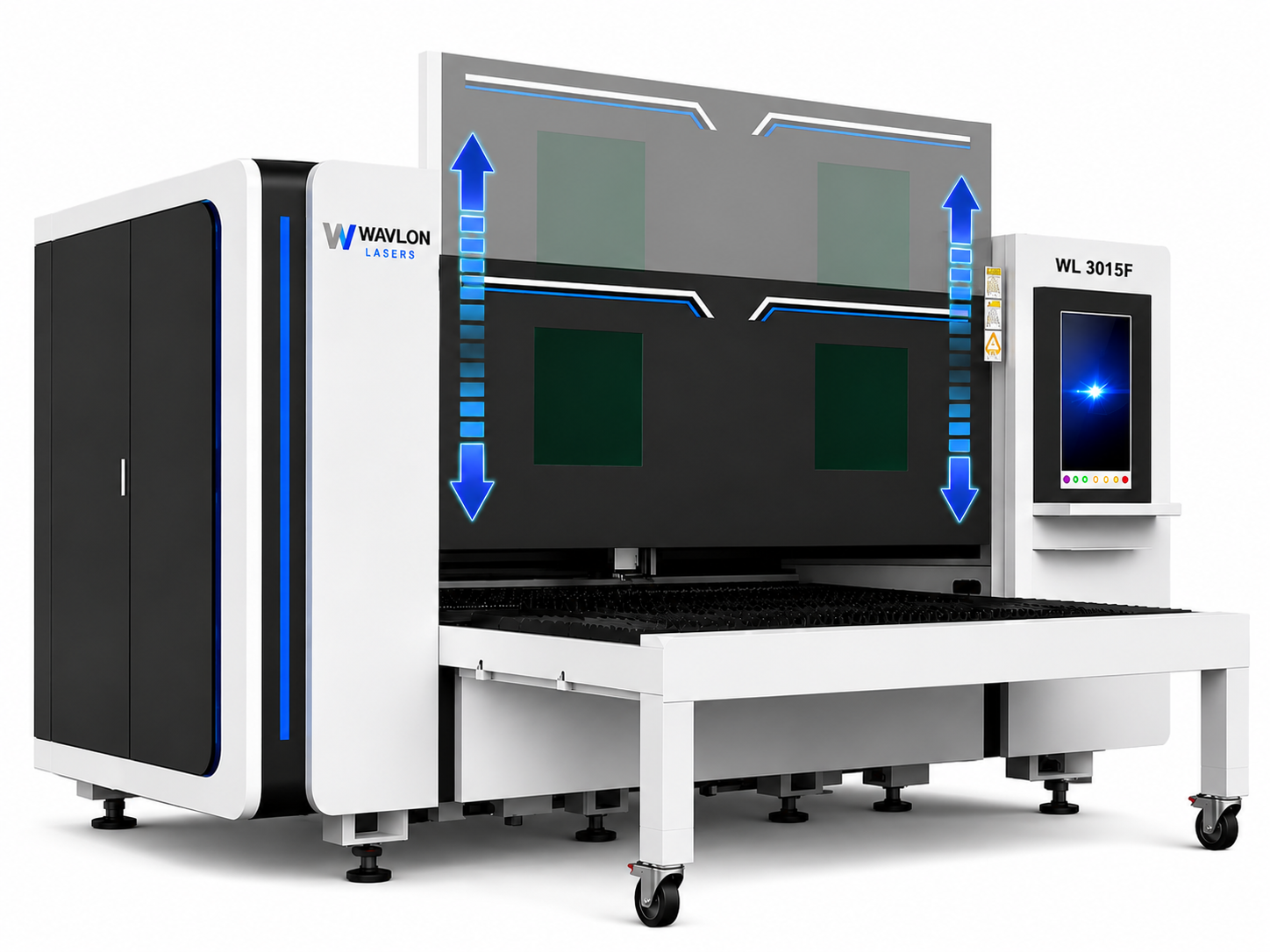

PowerCut automatic pull-out table and door operation
Loading System

Automatic Pull-Out Table — Load Outside, Cut Inside

When a job finishes, the cutting table automatically slides out of the cabin for unloading. Load your next sheet outside — then slide the table back in and start cutting. Operators never reach inside an active cutting zone, improving both safety and workflow efficiency.

Motorized pull-out and pull-in — one-button table exchange
Full 3015 sheet (3080 × 1540 mm) loads from outside the cabin
Interlock prevents cutting until table is fully retracted and doors closed
Slat table design — easy slag removal and cleaning
Integrated front and rear access doors for large part removal

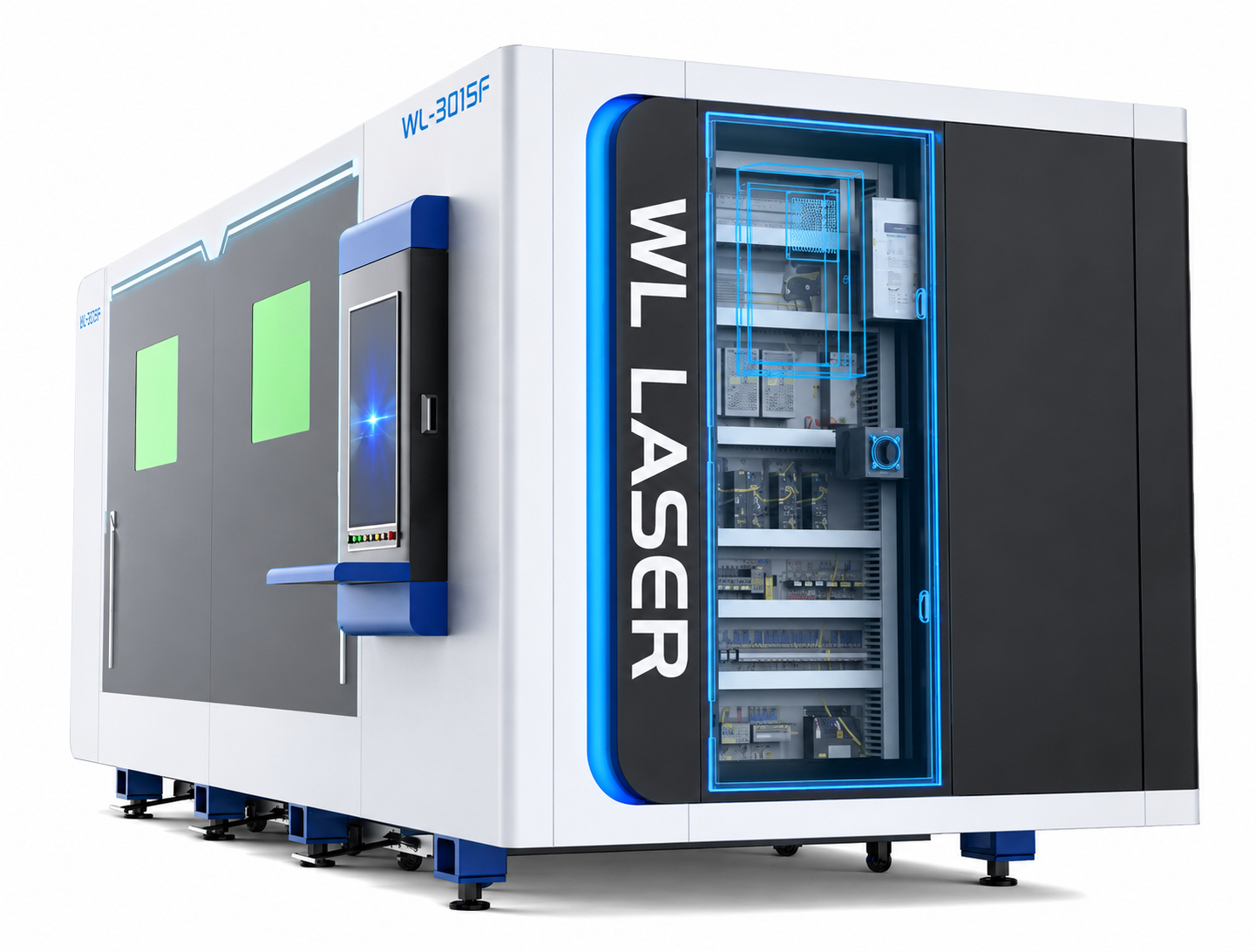

WL-3015F electrical cabinet — Schneider Electric components
Electrical System

Schneider Electric & ABB — European-Grade Electrics

The electrical cabinet is populated with Schneider Electric and ABB components — PLCs, inverters, breakers, and contactors. Every wire is labeled. Every circuit is protected. Confirm supply voltage, frequency, transformer requirements and applicable electrical approvals against your facility and the final quotation.

Schneider Electric & ABB components — PLCs, VFDs, and breakers
Confirm component certifications and any local electrical inspection requirements
Listed supply: 380V / 3-phase / 60Hz — verify compatibility and transformer requirements
Yaskawa servo drives on all linear axes — precise motion control
S&A water chiller integrated for laser source cooling
All wiring labeled with ferrules — fast troubleshooting and service

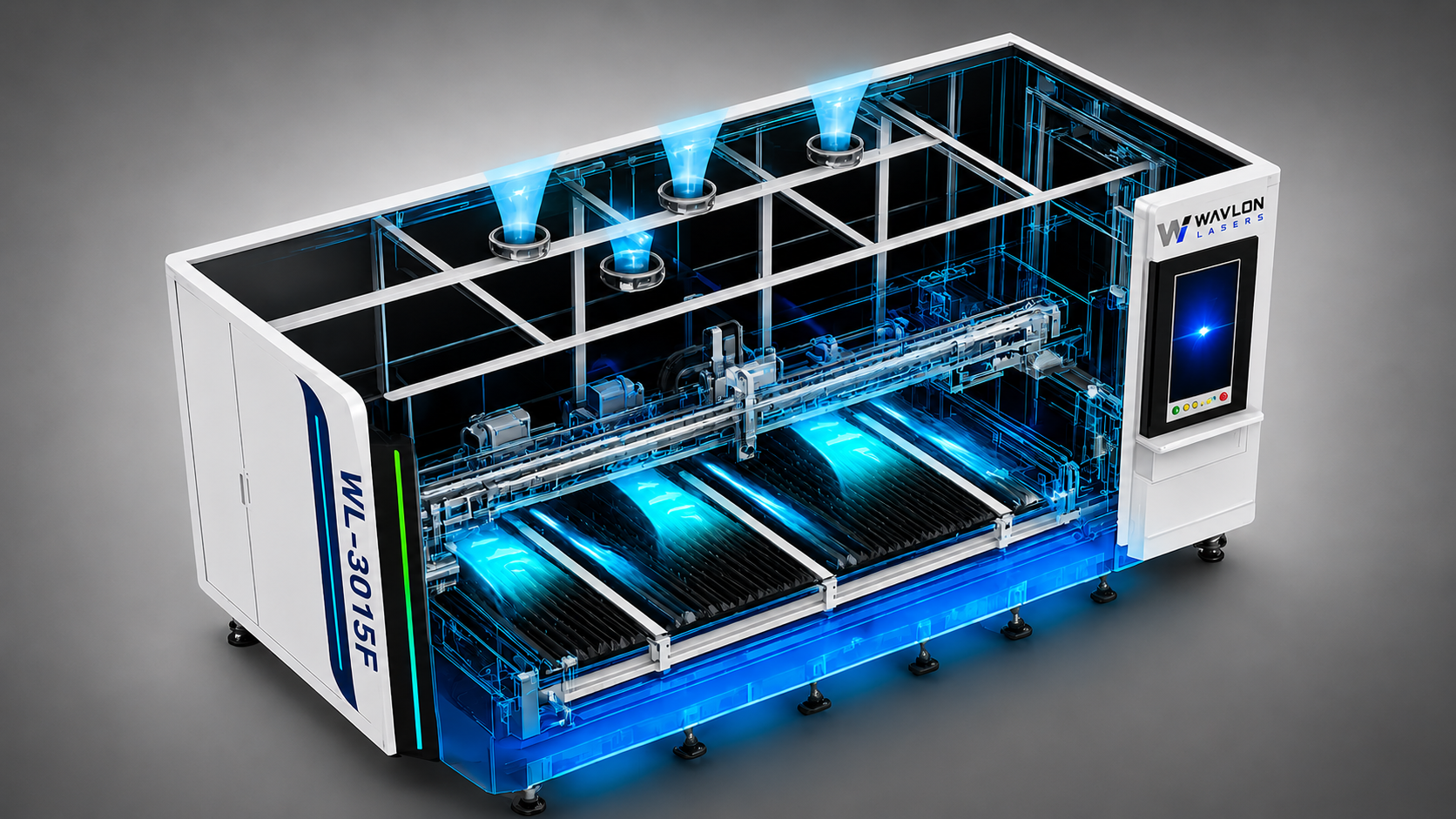

WL-3015F zone smoke extraction system
Fume Management

Zone-Based Smoke Extraction — Active Cutting Zone Only

Unlike machines that extract from the full table area, the PowerCut uses a zone-based extraction system that activates only in the region where the laser head is actively cutting. This concentrates suction at the fume source, dramatically improving extraction efficiency and reducing the load on your dust collector.

Zone smoke extraction follows the cutting head position in real time
Significantly lower CFM requirement vs. full-table extraction
Reduces dust collector filter load and extends filter life
Integrated extraction ports — size compatible extraction for the materials and installation
Compatible with Wavlon fume extraction packages (optional)

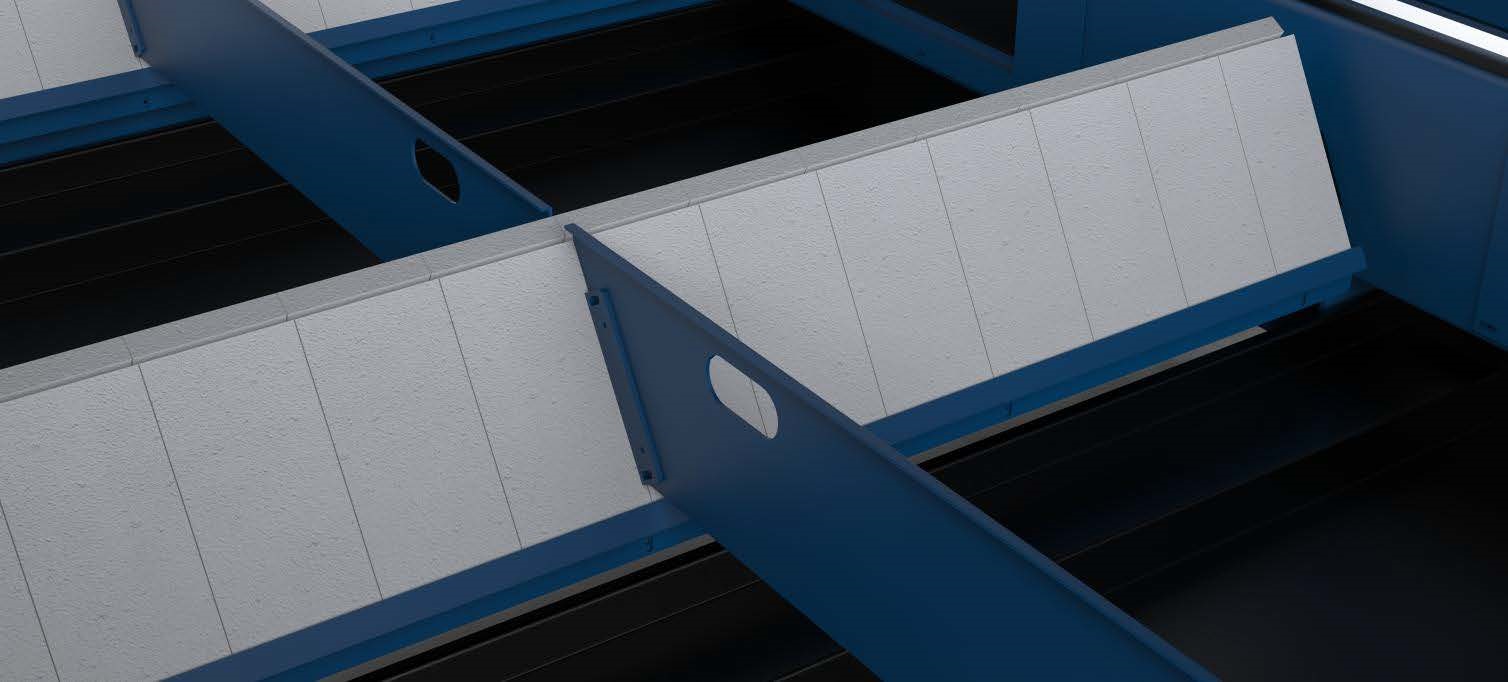

WL-3015F refractory brick cutting bed — slag protection
Cutting Bed

Refractory Brick Slag Pan — No Splash-Back

Beneath the slat table, the PowerCut uses refractory brick lining in the slag collection pan. Unlike bare steel pans, refractory bricks absorb slag impact and heat, preventing molten metal splash-back onto the underside of sheets and dramatically extending the life of the pan and surrounding structure.

Refractory brick lining — rated for sustained high-temperature slag
No metal splash-back onto sheet undersides — cleaner cut faces
Extends pan structure life vs. bare steel alternatives
Easy slag removal via front-access drawer on 3015 frame
Technical Specifications

Full Specification Sheet

All three PowerCut models — 3015 frame (3080 × 1540 mm working area).

Model Comparison — WFC-3015 Series

SpecificationWFC-3015-3KWFC-3015-6KWFC-3015-12K
Laser Power3 kW6 kW12 kW
Working Area (X × Y)3080 × 1540 mm (3015 frame)
Carbon Steel Range0.5–16 mm0.5–22 mm2–35 mm
Stainless Steel Range0.5–8 mm0.5–12 mm1–20 mm
Aluminum Range0.5–6 mm0.5–10 mm1–16 mm
Brass / Copper0.5–3 mm0.5–6 mm1–10 mm
Laser HeadBOCI BLT-310BOCI BLT-421SBOCI BLT-442
Max Speed120 m/min
Max Acceleration1.2 G
Nesting SoftwareOptionalOptionalCypnest (included)

Common Specifications (All PowerCut Models)

Z-Axis Travel300 mm
Positioning Precision±0.03 mm / 1000 mm
Repeat Precision±0.02 mm / 1000 mm
Laser SourceMAX Photonics / IPG / Raycus
Servo MotorYaskawa (Japan)
ReducerTechmech
Linear Guide RailROUST (Germany)
Helical RackEblun (Taiwan)
Electrical ComponentsSchneider Electric & ABB
Pneumatic / GasSMC (Japan)
Water ChillerS&A
Machine FrameHeavy steel plate welded construction
EnclosureFull enclosed cabin
Table TypeSingle table, automatic pull-out / pull-in
Slag CollectionRefractory brick-lined pan
Smoke ExtractionZone-based (follows cutting head)
Operating Voltage380V / 3-phase / 60Hz
Control SoftwareCypcut / Hypcut (Windows)
Screen27-inch internal-design console
CalibrationAutomatic
ApprovalsConfirm machine and component documentation for the quoted configuration and local requirements
Frame Option3015 only

PowerCut Series — Full Product Catalog

Complete specifications, dimensional drawings, cutting data tables, and component details.

Compare Series

ProCut vs PowerCut vs UltraCut

Find the right machine for your production volume, safety requirements, and budget.

FeatureProCutPowerCut ✓UltraCut
Power Range3–12 kW3–12 kW3–20 kW
Frame Options3015 / 40203015 only3015 / 4020
Max Steel (12 kW)25 mm35 mm35 mm
Max Speed100 m/min120 m/min120 m/min
Acceleration1.0 G1.2 G1.2 G
EnclosureOpen gantryFull enclosed cabinFull enclosed cabin
Table SystemOpen single tableSingle auto pull-outDual shuttle exchange
Table Change TimeManual~60 sec (auto)Near zero (dual)
Smoke ExtractionOpen / externalZone-based (built-in)Zone-based (built-in)
HD CamerasNoNoYes
Safety Light CurtainsNoDoor interlocksFull curtain system
Best ForEntry-level job shopsMid-tier / safety-focusedHigh-volume production
View ProCut Series → View UltraCut Series →

Choosing an enclosed sheet laser for your shop

PowerCut is Wavlon’s enclosed sheet-cutting platform with a pull-out table. Choose a configuration around your recurring material, sheet size and loading workflow. The listed laser power range alone does not establish finished-part quality or production output.

How do I compare PowerCut with ProCut and UltraCut?

Start with the way your team loads, cuts and unloads sheets. Compare ProCut for its open-table workflow, PowerCut when an enclosed cutting area and pull-out table suit the job, and UltraCut when a dual-exchange-table workflow is worth evaluating. Compare total cycle time on the same part nest, including handling and finishing.

What to confirm in your PowerCut quotation
DecisionBring to the reviewAsk Wavlon to confirm
Cutting applicationMaterial grade, normal and occasional maximum thickness, drawings and finish requirementsProposed power, assist gas and representative sample-cut conditions
Sheet handlingLargest sheet size, loading equipment and operator workflowUsable bed, table travel, access and loading/unloading sequence
InstallationDelivery location, floor plan and available utilitiesMachine layout, extraction, electrical requirements and installation scope
Purchase scopeBudget currency, target timing and training needsIncluded equipment, freight, commissioning, training and warranty terms

What laser power do I need for stainless steel or aluminum?

Supply the actual grade, thickness range, required edge finish and production target. Ask for a proposed configuration and a trial on representative parts. Do not use a maximum cutting-thickness claim as a substitute for an agreed production-quality result. Our laser power selection guide explains how to organize the comparison.

Does the enclosure settle every installation requirement?

No. Confirm the documentation and requirements for the exact delivered configuration, including enclosure and interlock design, extraction, electrical connection and local site requirements. Review these with the responsible site professionals before installation.
