CypCut · HypCut · HypCutRevo
2D Sheet Cutting Controllers
— FSCUT Series
From mid-power 1.5kW job shop work to ultra-high-power 60kW production — four FSCUT controllers covering the full 2D sheet cutting spectrum.
Mid Power · 1.5–8kW
FSCUT4000E
Hardware

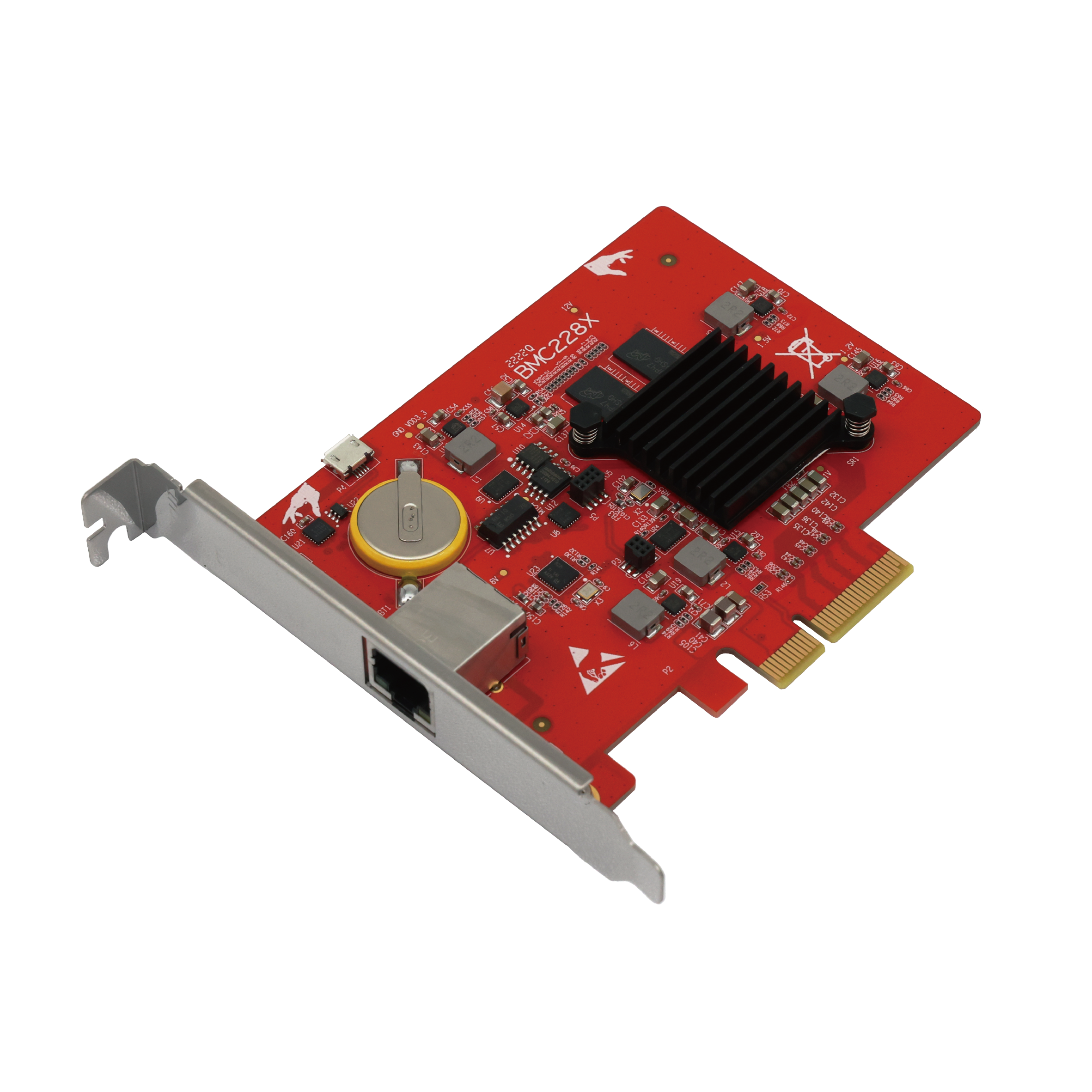

Control BoardBMC228B
Drive UnitBCL4568E
ConsoleWKB-V6
SoftwareCypCutE
Power Range1.5–8kW
Smart Functions
Ultra Dynamic Cutting — accelerates thin plate cycle times with dynamic motion optimization
Smooth MicroJoint — clean MicroJoint finish for batch part unloading without snapping
Circle Center — auto-detects and cuts precisely to circle center for hole patterns
One-Path FlyCut — single-path cutting of scattered small parts without lifting
Scan In — import cutting programs via QR code scan from any mobile device
Best For: Sheet metal fabrication, kitchenware, light fixtures, and general job shop 2D cutting at 1.5–8kW.
CypCutE Software
High Power · 6kW+
FSCUT6000
Hardware

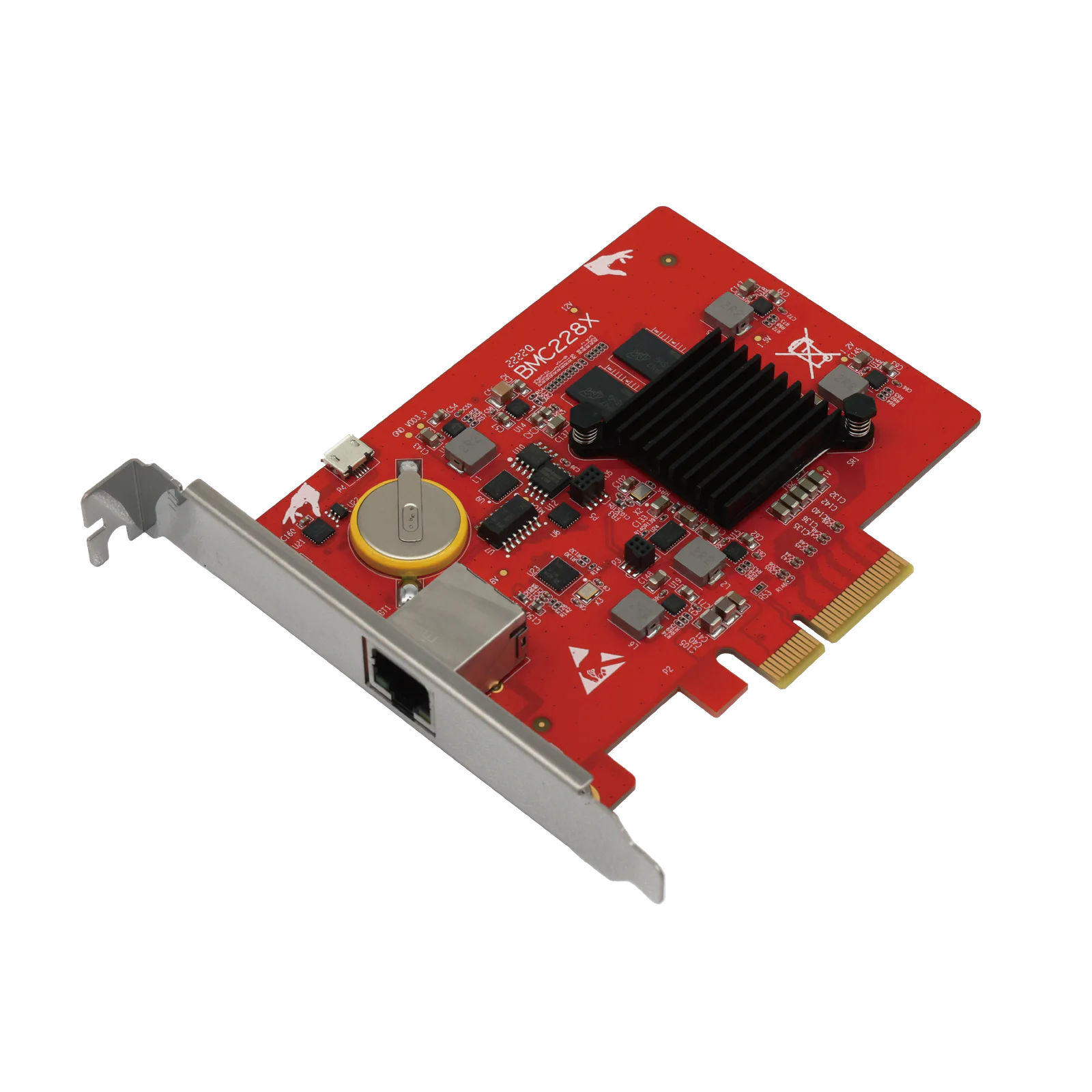

Control BoardBMC228B
Drive UnitBCL4568E
ConsoleWKB
SoftwareCypCutPro
Power Range6kW+
Smart Functions
Smooth Piercing — gradual power ramp for clean pierce holes on medium–thick plate
Flash Piercing — frequency conversion piercing for faster breakthrough on thick plate
Deslag Piercing — removes slag from pierce holes before cutting begins — cleaner path start
Self-Adjust Vibration Suppression — auto-compensates for high-speed motion vibration
Differentiation vs 4000E: The FSCUT6000 adds advanced piercing modes for medium to thick plate (6–25mm). Deslag Piercing alone significantly reduces rework on thick structural steel.
High Power · 8kW+ Intelligent
FSCUT8000
Hardware Variants
FSCUT8000APLUS+ — All-in-one integrated unit
FSCUT8000B — EtherCAT with HypTronic3
FSCUT8000C — BMC228B board variant
Software: HypCut
Smart Functions
Intelligent Remnant Reuse — auto-maps remaining sheet material for follow-on nest programs
Stage-9 Piercing — 9-stage power ramp for ultra-thick plate >30mm — eliminates spatter and blow-outs
Smart LaserOff — optimized laser power at start/end of each contour for clean cuts
Auto Recut — automatically reruns failed cuts without operator intervention
Smart Piercing — real-time pierce monitoring, auto-adjusts based on feedback
Differentiation vs 6000: The FSCUT8000 adds the full intelligence suite — remnant reuse, Stage-9 piercing for 30mm+, and Auto Recut. Designed for high-volume production on heavy structural plate.
HypCut
HypCut Software Highlights
Remnant Intelligence
Auto-identifies and programs usable remnants — reduces material waste on high-cost plates.
Stage-9 Piercing
9-stage power ramp — proven on 40–60mm carbon and stainless without blowout.
Auto Recut
Failed cuts trigger automatic re-run — no operator needed for cut failures.
High Power · Vision-Enabled

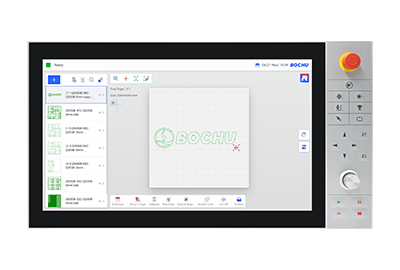

FSCUT8000REVO
Hardware
ConsoleHyPanel2_IAC2822W3
KeypadWKB-V8
SoftwareHypCutRevo
VisionIntegrated Camera
Smart Functions

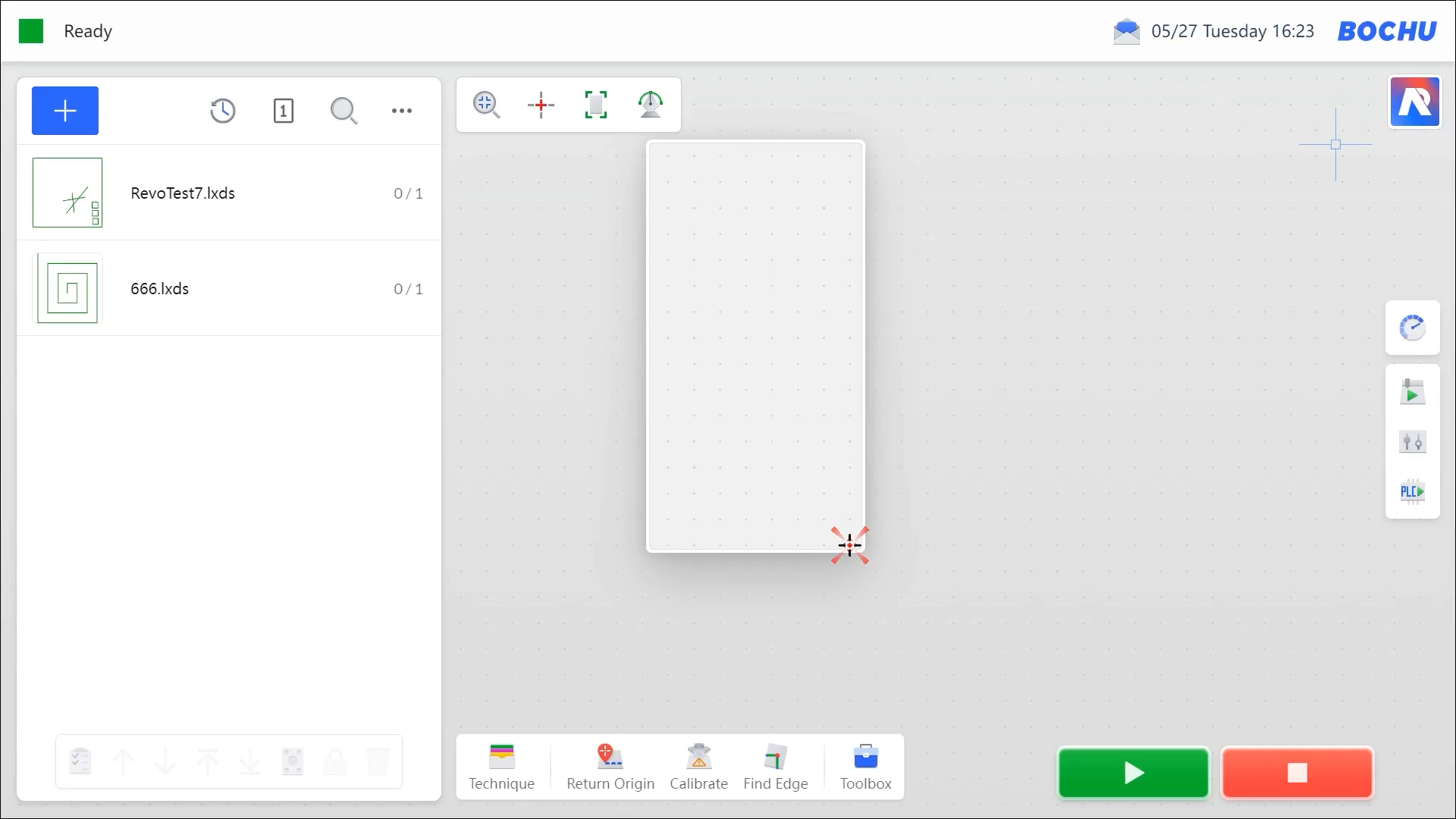

Smart Vision — overhead camera automatically identifies sheet position and remnant outlines without manual setup

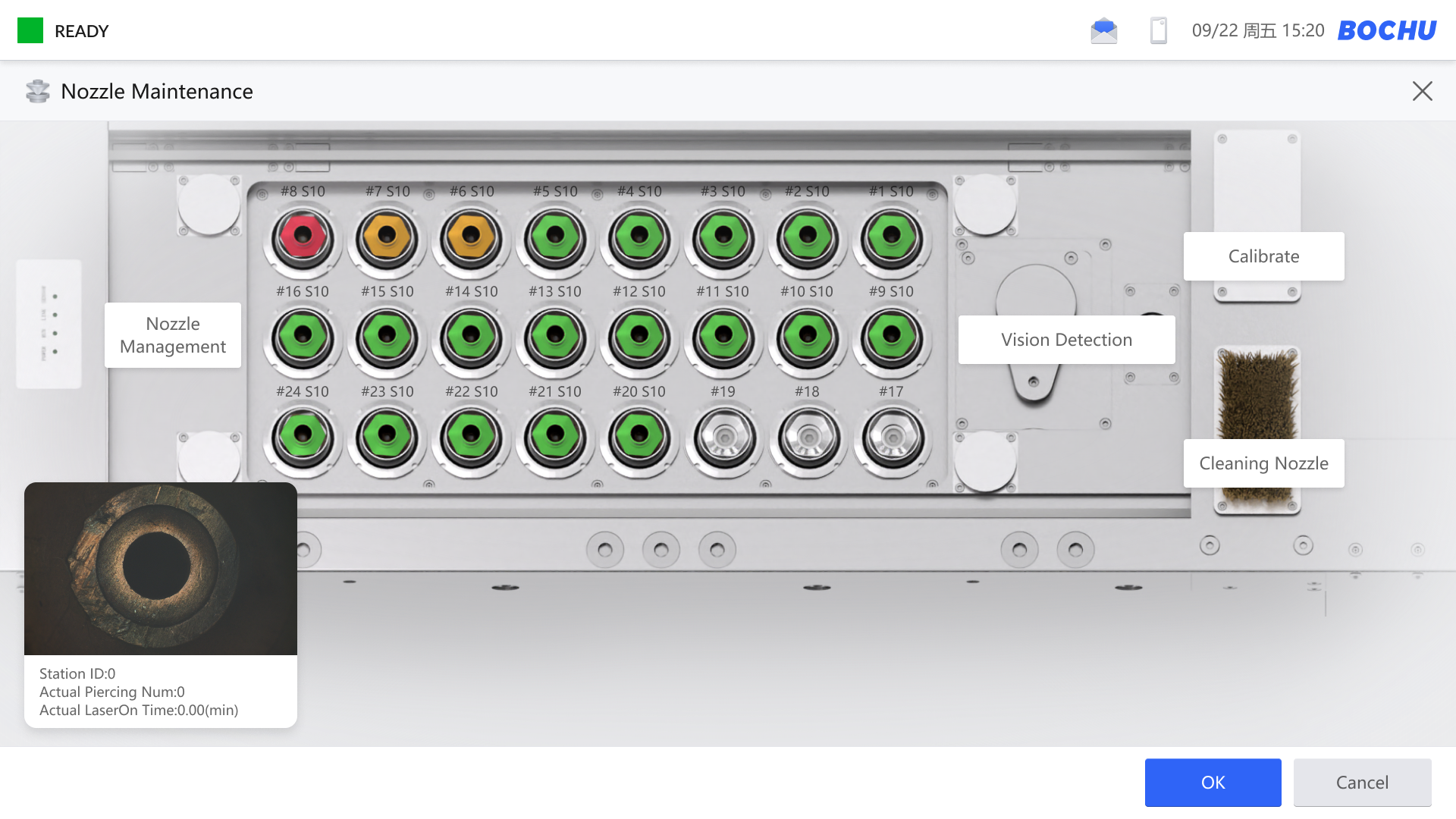

Auto Nozzle Change — robotic nozzle magazine swaps nozzles automatically for different materials/thicknesses
Smart Frame — auto-detects sheet/remnant boundary with the BLT6 head sensor
All FSCUT8000 functions: Stage-9 Piercing, Auto Recut, Smart Piercing, Remnant Reuse
Differentiation vs 8000: The REVO adds machine vision for fully automated sheet recognition and robotic auto nozzle change — reducing operator intervention to near zero on unmanned cutting cells.
Full Comparison
FSCUT Controllers Side by Side
| Feature | FSCUT4000E | FSCUT6000 | FSCUT8000 | FSCUT8000REVO |
|---|---|---|---|---|
| Software | CypCutE | CypCutPro | HypCut | HypCutRevo |
| Power Range | 1.5–8kW | 6kW+ | 8kW+ | 8kW+ |
| Ultra Dynamic Cutting | ✓ | ✓ | ✓ | ✓ |
| Smooth MicroJoint | ✓ | ✓ | ✓ | ✓ |
| Circle Center | ✓ | ✓ | ✓ | ✓ |
| Advanced Piercing Modes | — | ✓ (3 modes) | ✓ (Stage-9) | ✓ (Stage-9) |
| Vibration Suppression | — | ✓ | ✓ | ✓ |
| Intelligent Remnant Reuse | — | — | ✓ | ✓ |
| Auto Recut | — | — | ✓ | ✓ |
| Smart LaserOff | — | — | ✓ | ✓ |
| Smart Vision Camera | — | — | — | ✓ |
| Auto Nozzle Change | — | — | — | ✓ |
| Smart Frame (Edge Sensing) | — | — | — | ✓ |
