TubePro · TubesT · FSCUT5000 & FSCUT3000
Tube Cutting Controllers
— FSCUT Series
FSCUT5000A for heavy 3-chuck tube and structural profiles, FSCUT5000B for standard 2-chuck tube, and FSCUT3000 series for entry and small tube applications.
Production Grade · TubePro + TubesT
FSCUT5000 Series
The production-grade tube cutting controller family — FSCUT5000A for heavy 3-chuck and structural applications, FSCUT5000B for standard 2-chuck tube lines. Both run TubePro + TubesT software.
| Feature | FSCUT5000A | FSCUT5000B |
|---|---|---|
| Application | Heavy tube, H/U/L-beam, structural | Standard 2-chuck tube |
| Chuck Configuration | 3-chuck, 4-chuck | 2-chuck |
| Pulling / Zero-Tail | ✓ | — |
| 7-Axis Pulling | ✓ | — |
| H/U/L-Beam Profiles | ✓ | Optional |
| Bevel Cutting | ✓ | — |
| Holder Follow | — | ✓ |
| Dual Y Cutting | — | ✓ |
| Dodge Function | — | ✓ |
| Software | TubePro + TubesT | TubePro + TubesT |
FSCUT5000A — Heavy Tube

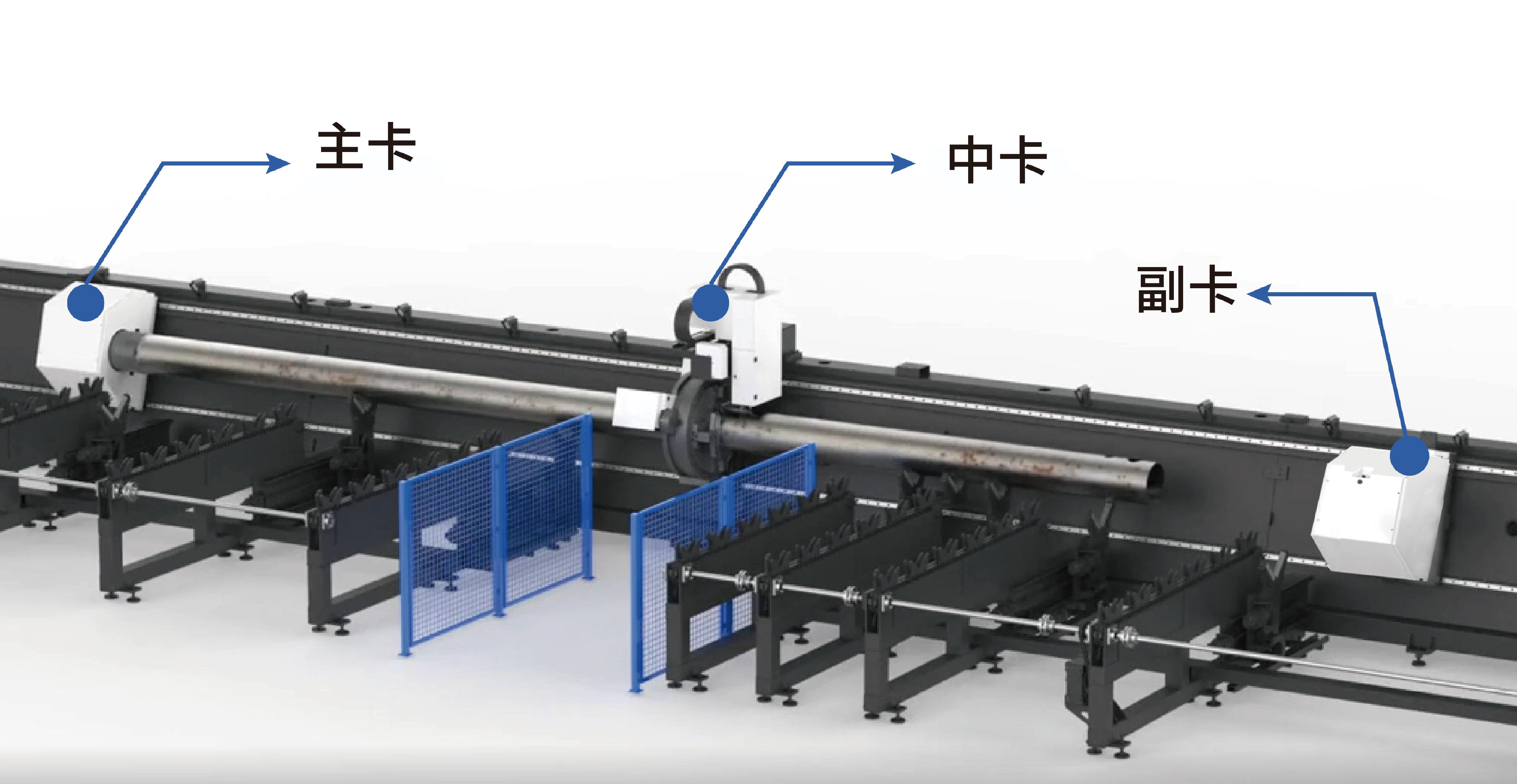

3-chuck configuration for long heavy tube and structural profiles

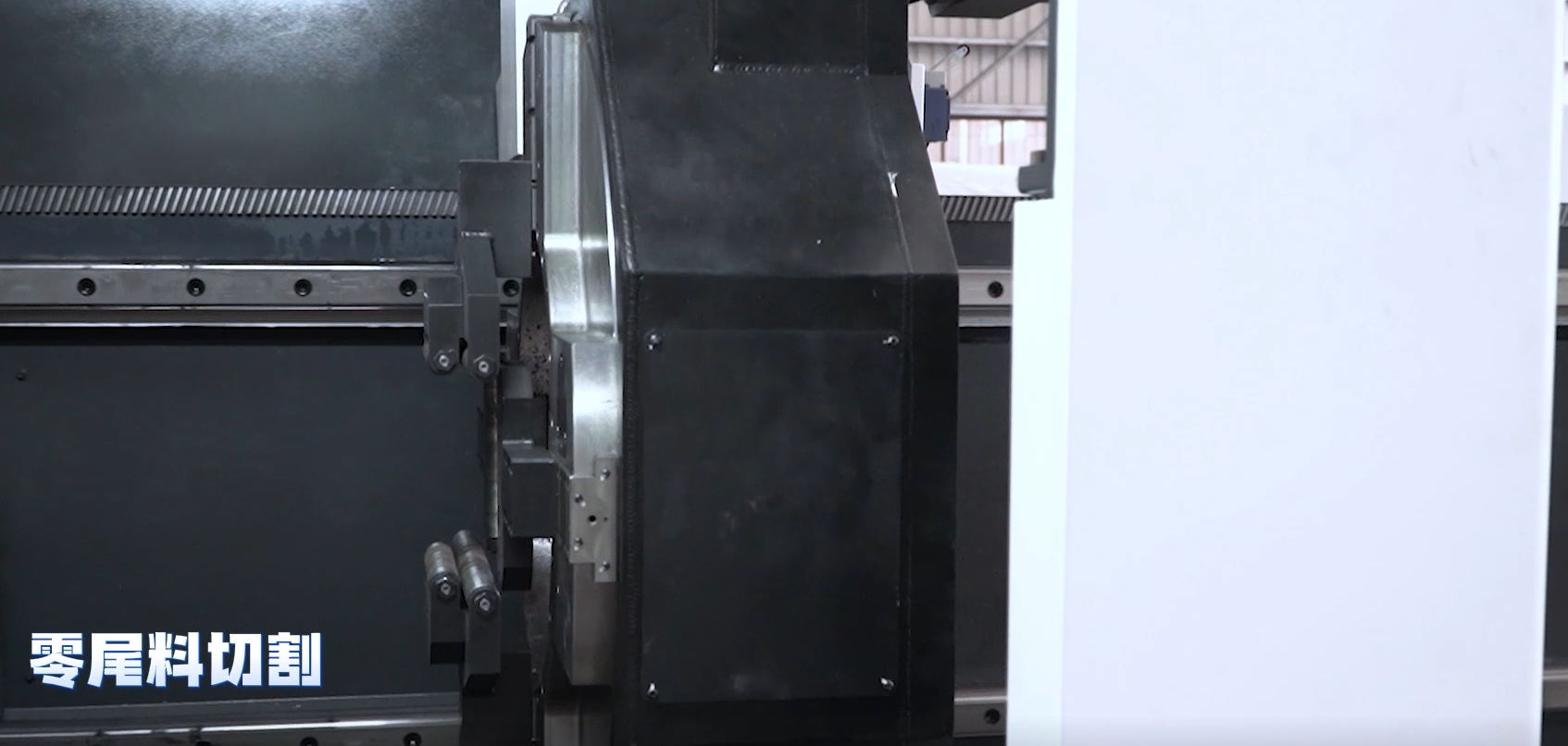

Zero-tail cutting — minimizes material waste at tube end

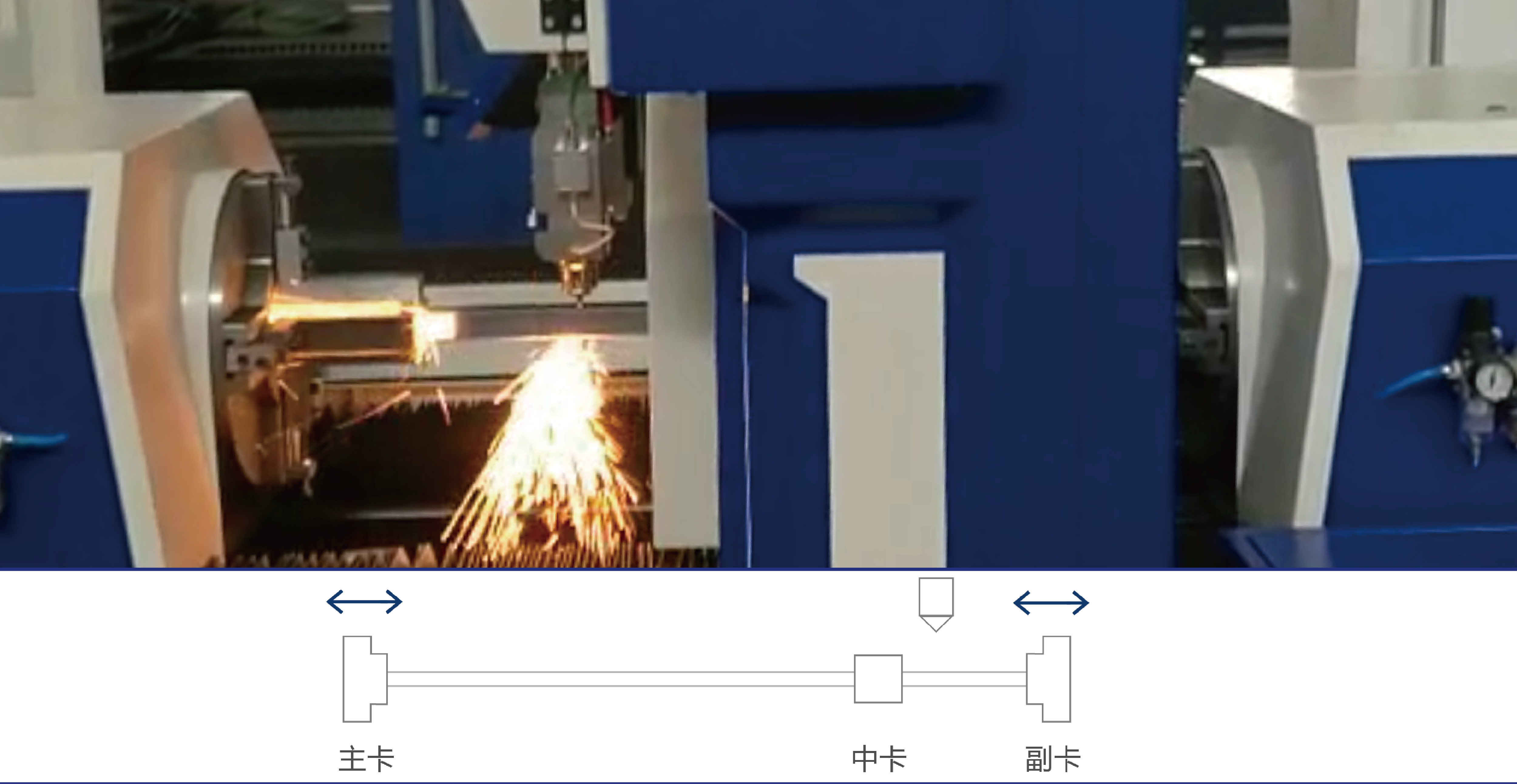

7-axis pulling motion for accurate long tube handling

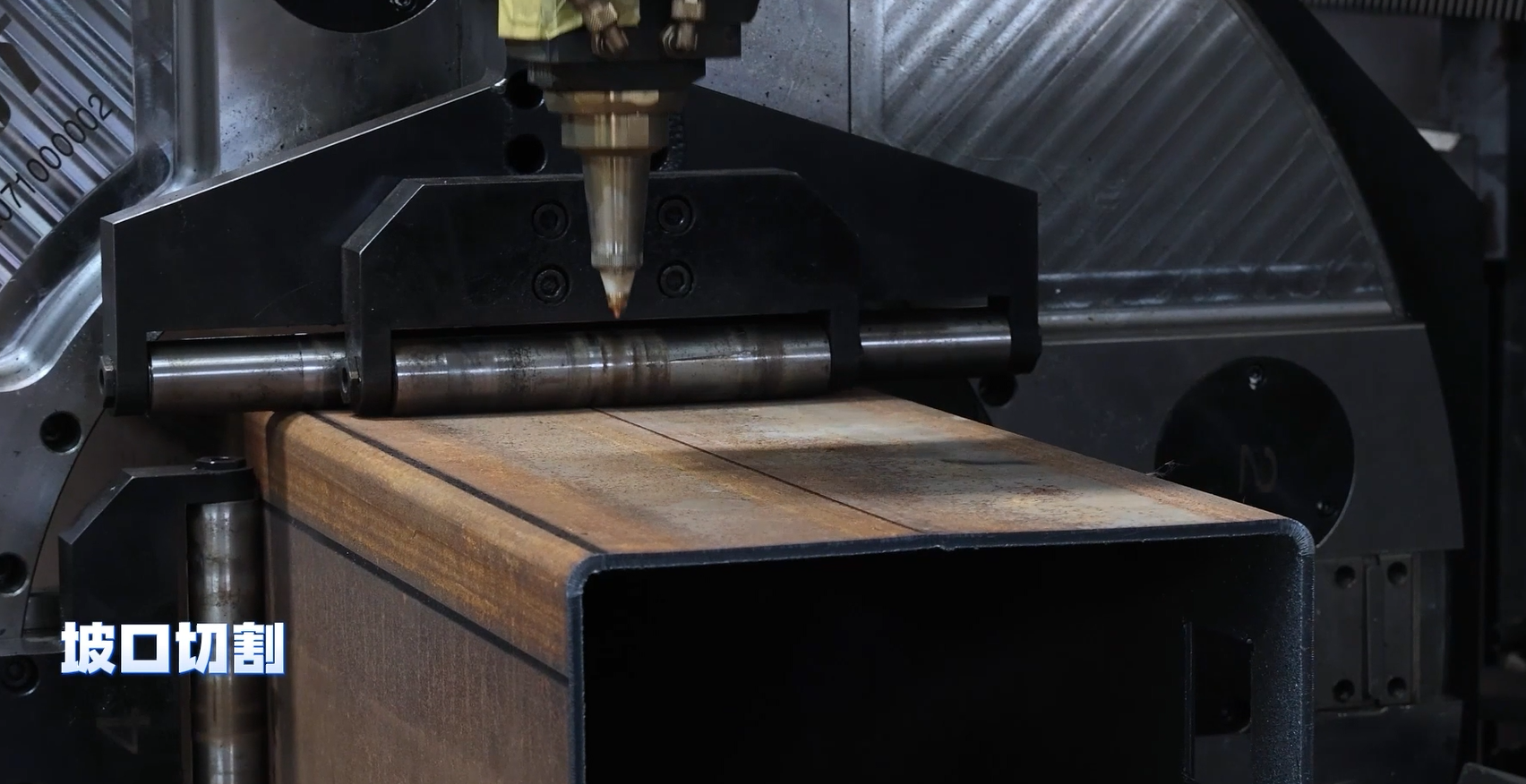

Bevel cutting capability for weld-prep tube joints
H, U, L-beam profile cutting support
FSCUT5000B — Standard Tube
2-chuck standard tube configuration — most common tube machine setup

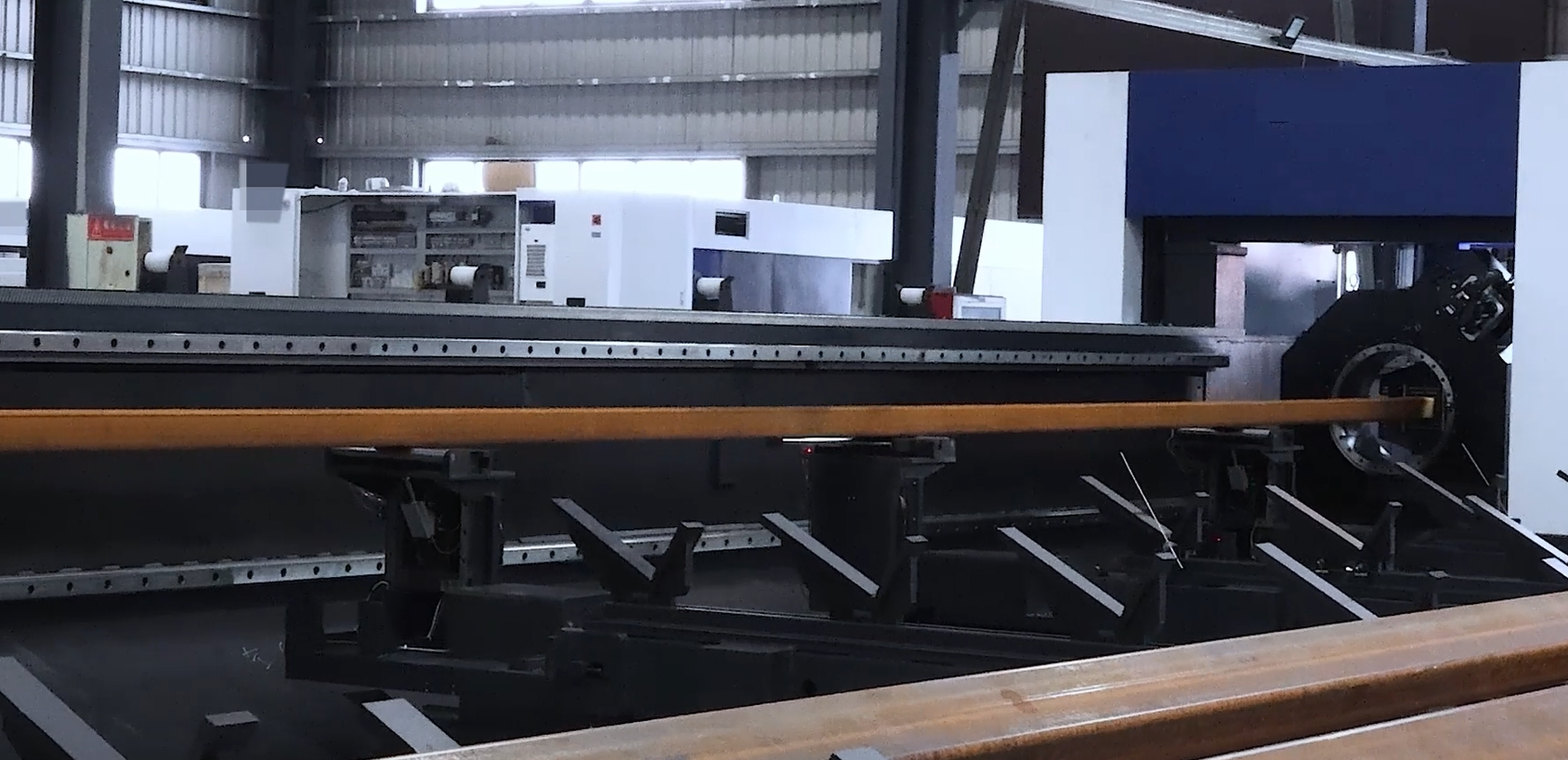

Holder Follow — front chuck follows behind rear chuck for thin-wall tube stability
Dual Y Cutting — simultaneous dual-nozzle cutting for two-pass tube programs

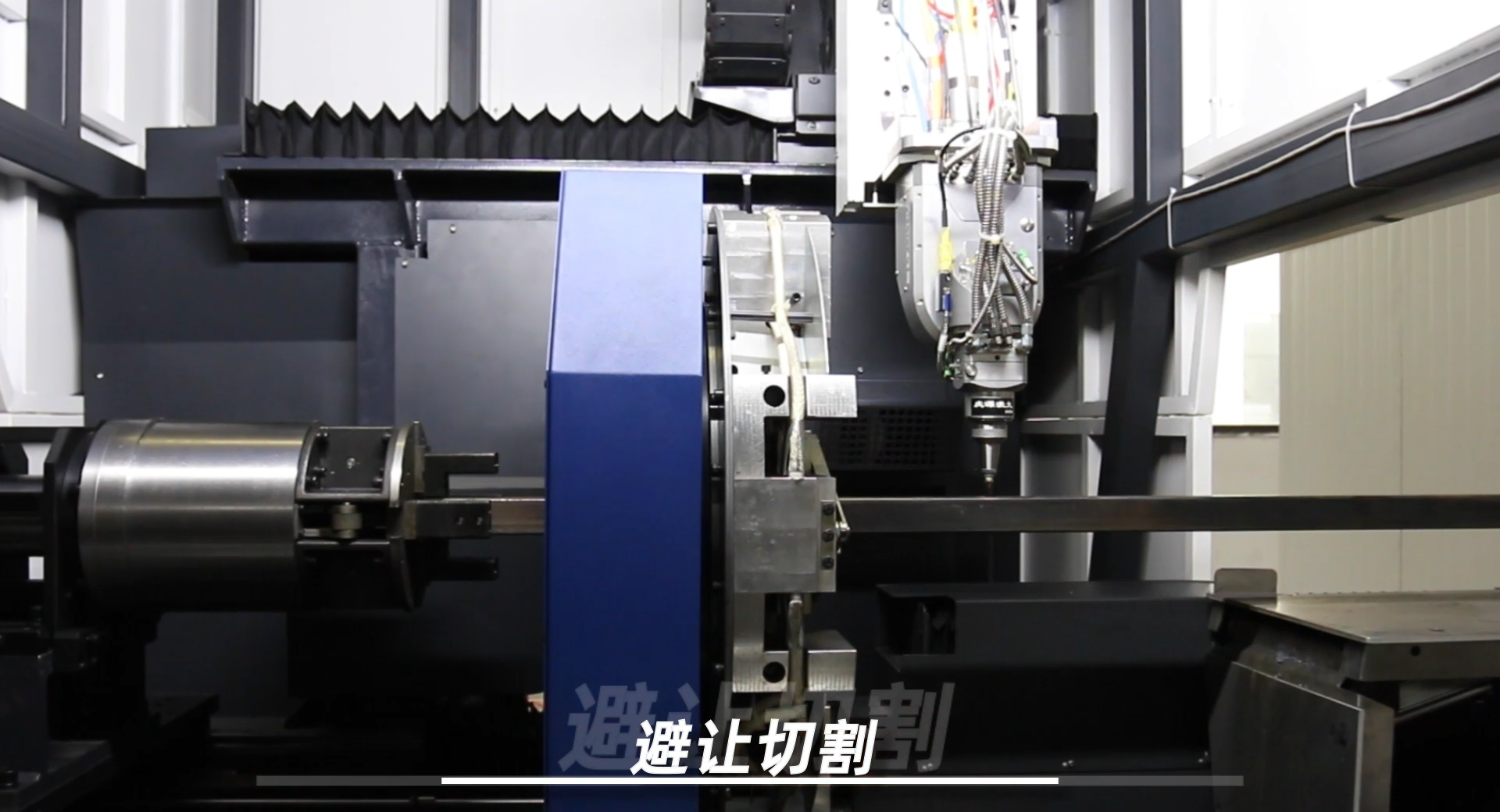

Dodge Function — automatic head lift and path adjustment around chuck jaws
Entry / Mid Range
FSCUT3000 Series
Entry and mid-range tube cutting controllers — FSCUT3000DE for standard 2-chuck, FSCUT3000A/D/H for small tube and single-chuck applications.
| Model | Configuration | Application | Notes |
|---|---|---|---|
| FSCUT3000DE-L | 2-Chuck | Regular tube cutting | Standard 2-chuck entry controller |
| FSCUT3000DE-M | 2-Chuck | Regular tube cutting | Mid-range 2-chuck, wider profile support |
| FSCUT3000DE-G | 2-Chuck | Regular tube cutting | High-end 2-chuck entry-series |
| FSCUT3000A | Single-Chuck | Small tube | Compact single-chuck for small OD tube |
| FSCUT3000D | Single-Chuck / Pulling | Small tube with pulling | Adds pulling axis for longer small tube |
| FSCUT3000H | 2-Chuck | Small tube, 2-chuck | 2-chuck configuration for small tube lines |
When to Choose FSCUT3000 vs FSCUT5000: The FSCUT3000 series is ideal for dedicated small-to-medium tube cutting lines where heavy structural profiles and bevel cutting are not required. For full structural profile range and bevel cutting, specify FSCUT5000A.
Compatible Machine
Configured for Wavlon TubeCut
FSCUT tube controllers are matched to Wavlon TubeCut Double Chuck and Triple Chuck machines. The final controller is selected for chuck count, section size, process requirements, and automation level.
