Plane bevel cutting for weld-prep sheet work, and structural steel cutting for H-beam, I-beam, channel steel, and angle iron — BCW profiler standard on structural heads.

BLT4 bevel cutting head combo
Plane bevel cutting head banner
Plane Bevel Cutting

Plane Bevel Cutting Head

Purpose-built for flat sheet bevel cutting — produces weld-preparation joints directly from the laser without secondary operations. Works with FSCUT9100 controller.

V, Y, X, K bevel types — full weld-prep joint library
Gradient bevel and upper-circle-lower-square profiles supported
Works with FSCUT9100 controller for full bevel automation
Deformation compensation — adjusts for plate bow and warping
Compatible with CypNest and CAD/Tekla for bevel nesting
Convex head cutting for curved pressure vessel and wind tower components
Structural Fabrication Pressure Vessels Wind Towers Shipbuilding

Paired Controller: FSCUT9100

Vision calibration, bevel nesting, and plate deformation compensation — all integrated in the FSCUT9100. View controller details →

BLT4 bevel cutting head
Bevel Cutting Head
BLT4 bevel cutting combo system
Bevel Cutting System

Supported Bevel Types

V
V-Type

Single bevel — standard weld groove

Y
Y-Type

Bevel with root face — thicker joints

X
X-Type

Double bevel — balanced weld joint

K
K-Type

Asymmetric double bevel

Gradient Bevel

Variable angle along cutting path

Circle-Square

Upper circle, lower square profile — nozzle transitions

Structural steel laser cutting banner
Structural Steel Cutting

Structural Steel Cutting Head

3-in-1 structural steel, plane bevel, and 2D cutting from one head. The BCW600B laser profiler compensates for real-time deformation in H-beam and structural sections. Works with FSCUT9200 controller.

BCW600B laser profiler — real-time deformation compensation for H-beam and structural sections
3-in-1: structural steel cutting + plane bevel cutting + 2D sheet cutting
AB axis swinging for bevel cuts on structural profiles
Vision calibration — one-click calibration, no mechanical adjustments
Multi-function: scallop, deburring, bolt holes, and part marking
Professional nesting with Tekla integration and TubesT Structural Steel software
Works with FSCUT9200 controller for full automation

Paired Controller: FSCUT9200

BCW Laser Profiler integration, Tekla nesting, and HypTronic3-L motion system — structural steel automation. View controller details →

Supported Operations

H-Beam Cutting
I-Beam Cutting
Channel Steel
Angle Iron
Scallop Cuts
Deburring
Bolt Holes
Part Marking

Industries Served

Structural Fabrication Steel Construction Bridge Building Mining Equipment Agricultural Machinery

BCW600B Laser Profiler

The BCW600B scans the actual profile of the structural section in real time — compensating for bow, camber, and twist. Cuts remain precise even when the material deviates from its nominal dimensions.

H-beam structural steel cutting in action
H-Beam Cutting

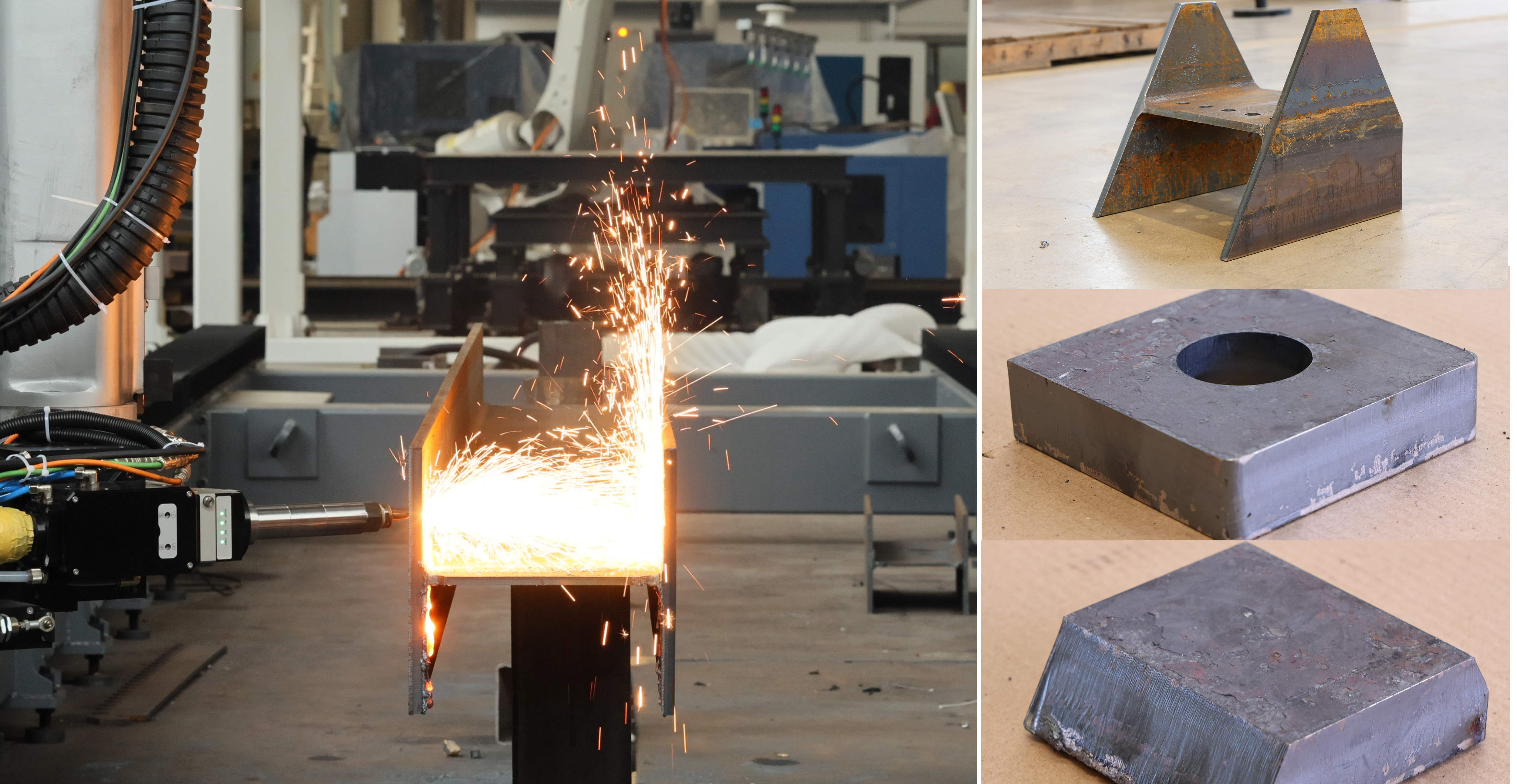

FSCUT9200 3-in-1 structural steel system
3-in-1 System

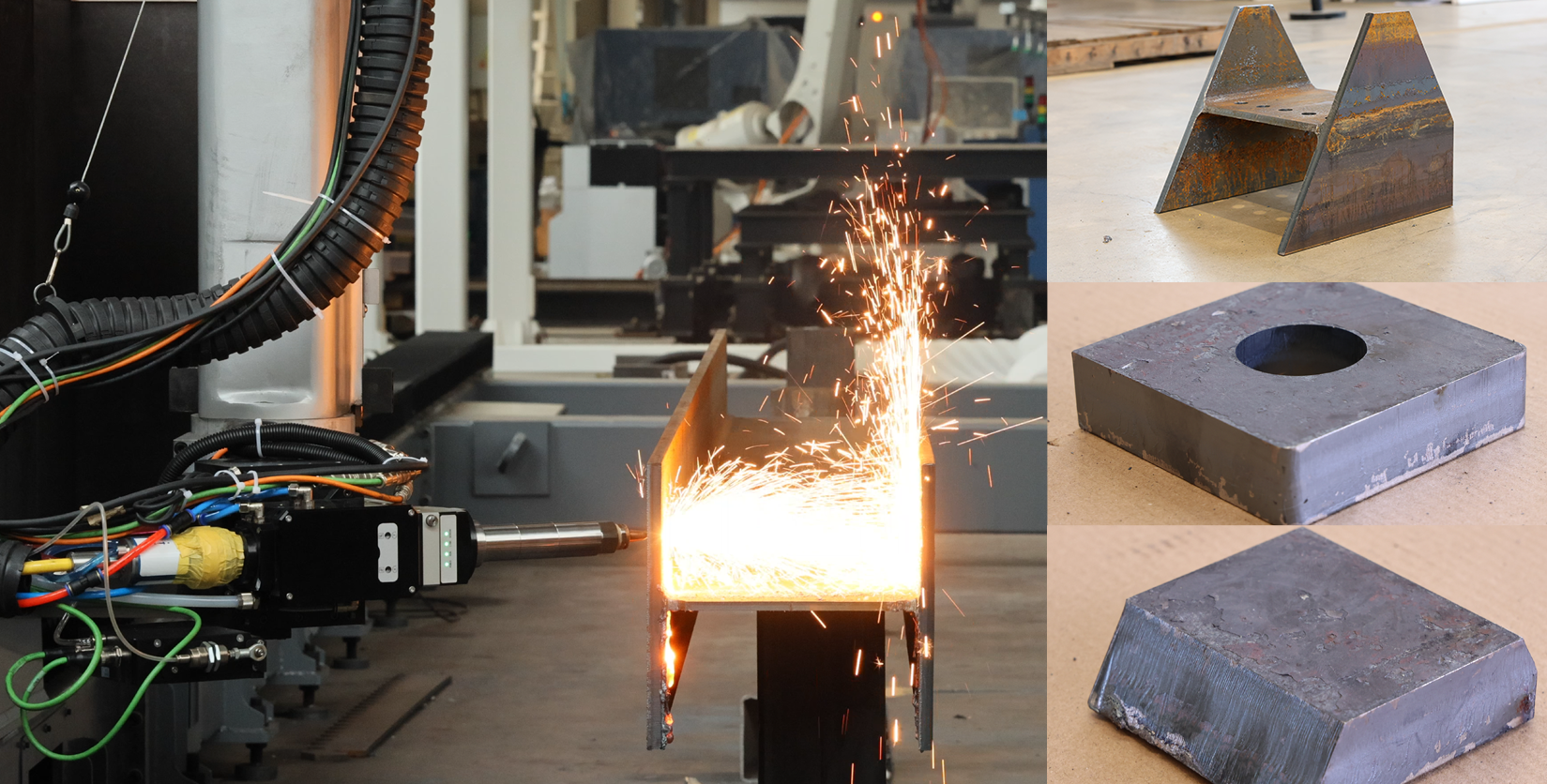

FSCUT9200 combo structural steel system
FSCUT9200 Structural Steel System
Controller Pairing

3D Heads Need 3D Controllers

Plane bevel and structural steel cutting require the FSCUT9100 or FSCUT9200 controller — standard 2D controllers do not support 3D head kinematics.

For Plane Bevel

FSCUT9100

Vision calibration, bevel nesting with CypNest/Tekla, plate deformation compensation, V/Y/X/K bevel editing.

View FSCUT9100 →

For Structural Steel

FSCUT9200

BCW laser profiler integration, 3-in-1 capability, Tekla nesting, AB axis swinging, HypTronic3-L motion.

View FSCUT9200 →
