HypCut 3D · FSCUT9100 & FSCUT9200
3D Laser Cutting Controllers
— FSCUT9000 Series
FSCUT9100 for plane bevel cutting — V/Y/X/K bevel nesting, pressure vessels, wind towers. FSCUT9200 for full structural steel — H-beam, BCW laser profiler, Tekla integration.
Plane Bevel Cutting
FSCUT9100
System Overview
ApplicationPlane Bevel Cutting
Power RangeMid / High Power
Paired HeadBevel Cutting Head
CalibrationVision One-Click
Smart Functions
Vision Calibration — one-click optical calibration with no mechanical adjustments required

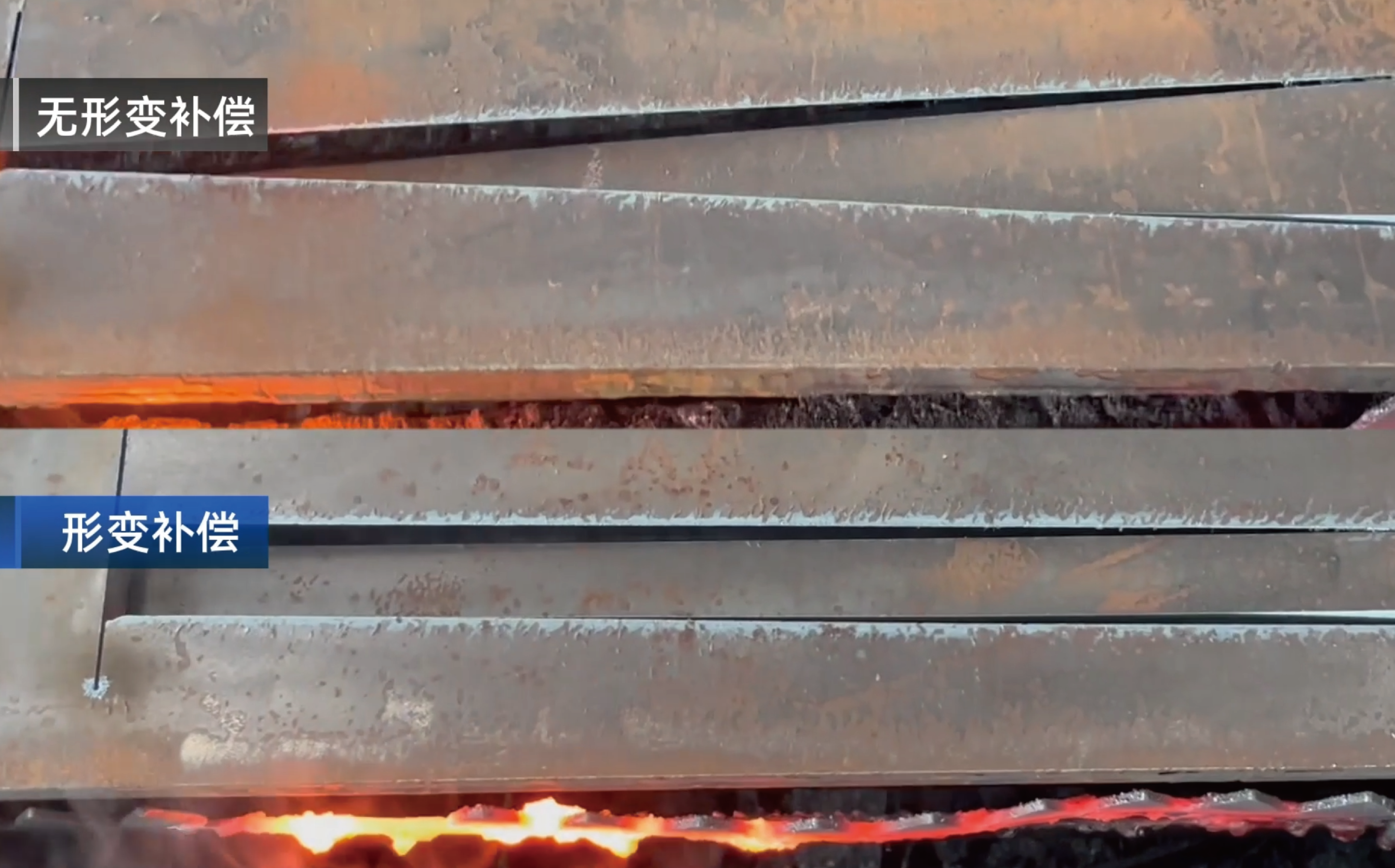

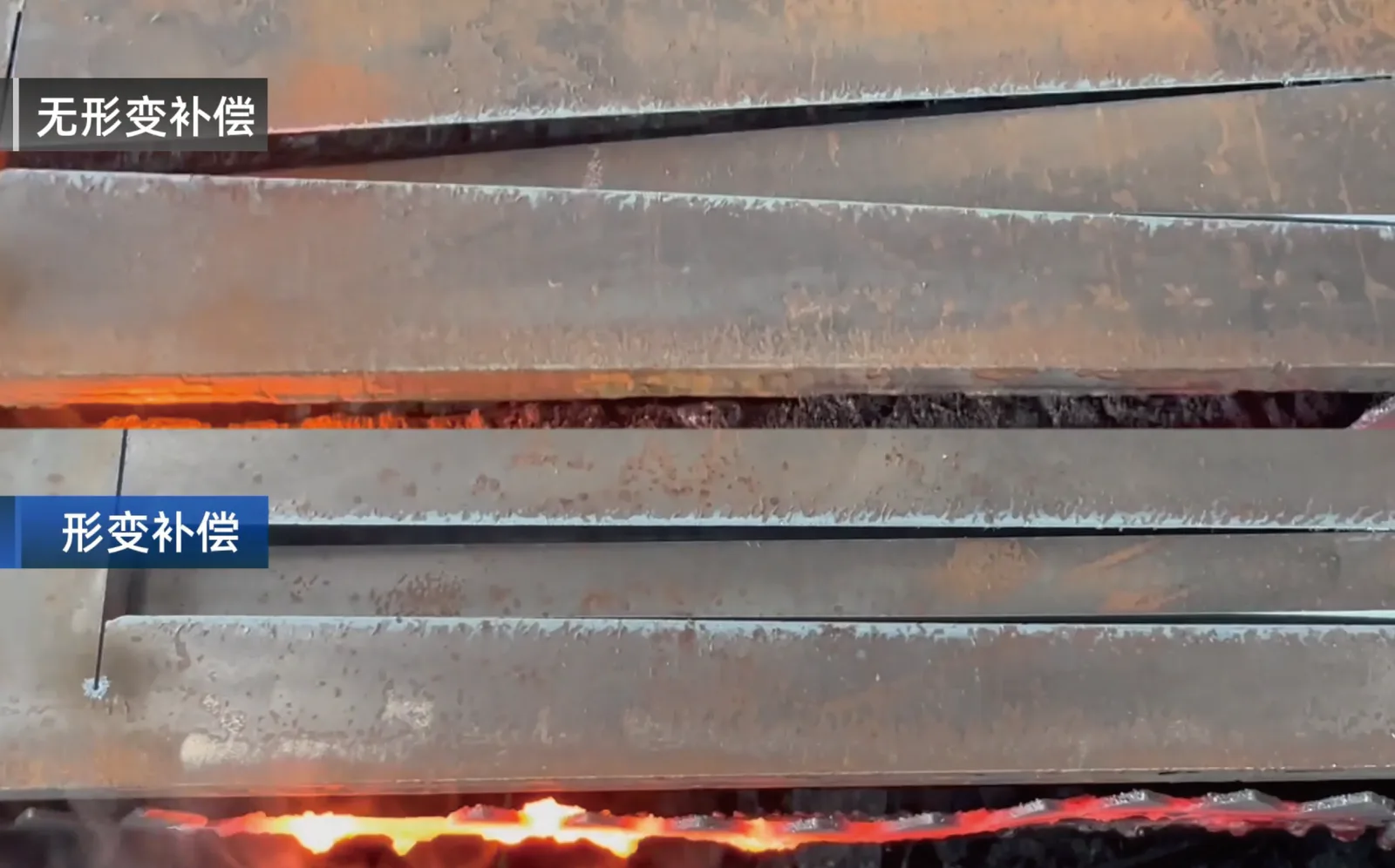

Plate Deformation Compensation — auto-adjusts cutting path for bowed or warped plate

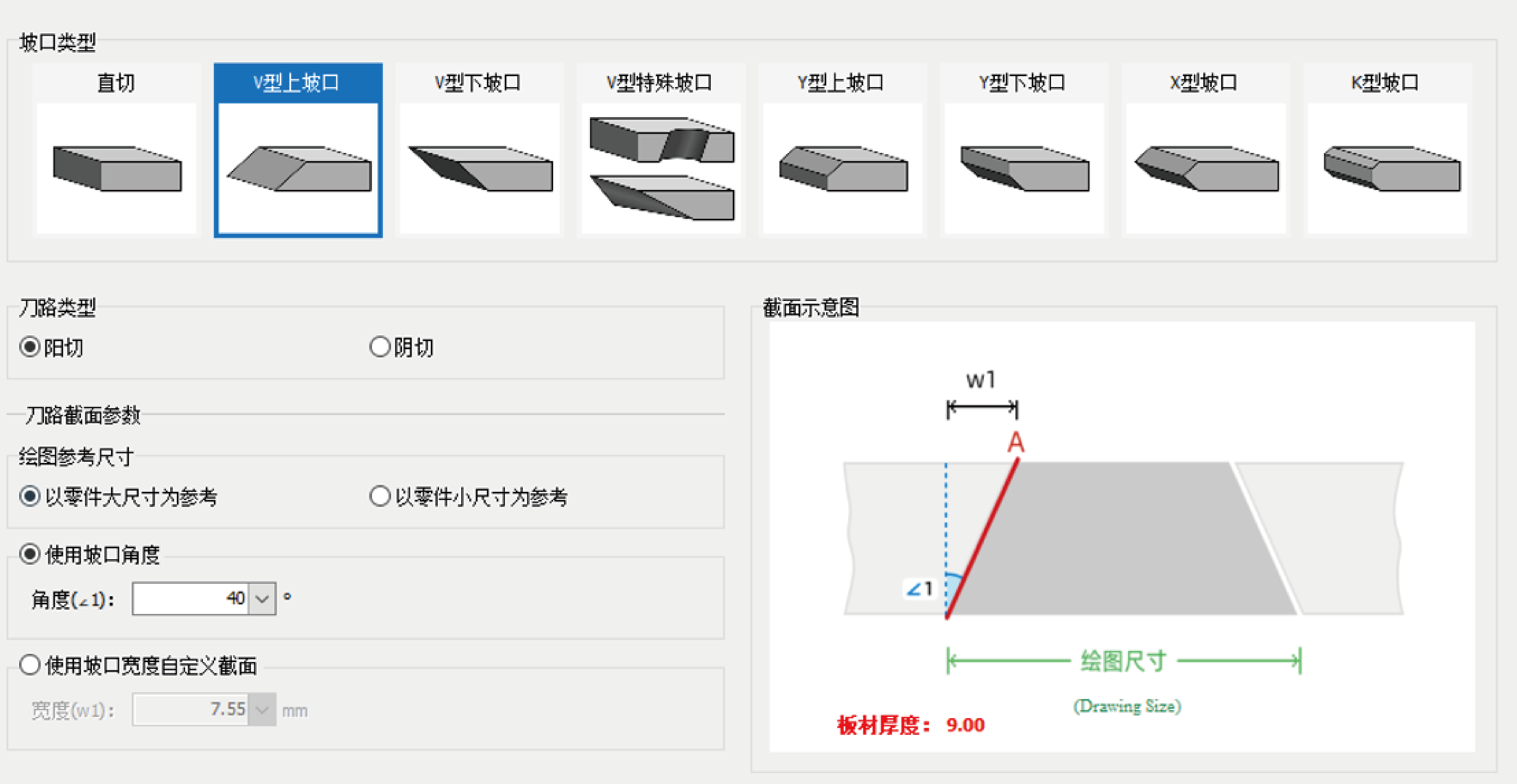

Bevel Editing — full V, Y, X, K bevel type library plus gradient and upper-circle-lower-square

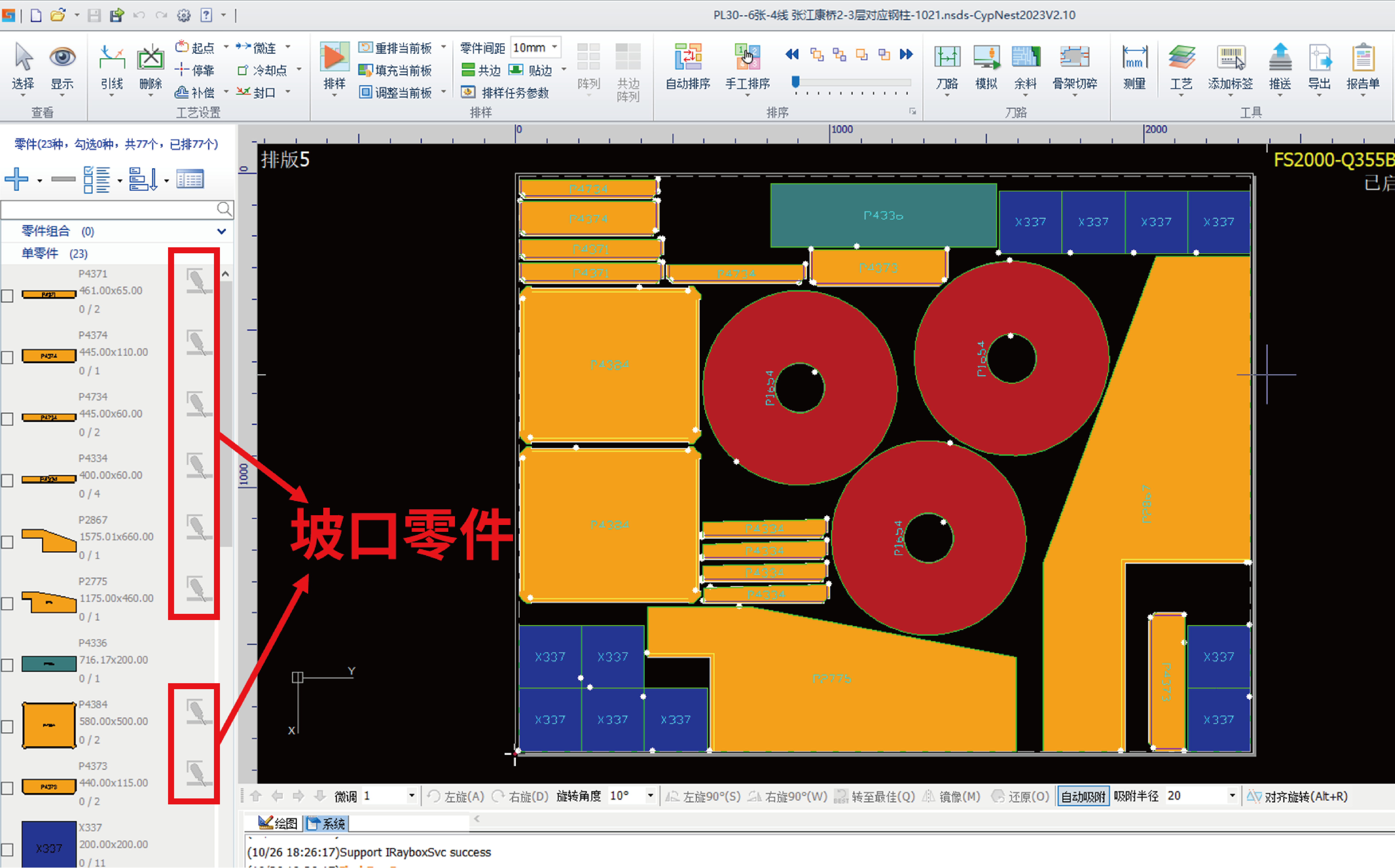

Bevel Nesting — integrates with CypNest for bevel-optimized nesting; supports CAD/Tekla import
Convex Head Cutting — supports cutting of curved pressure vessel and wind tower shell components
Supported Bevel Types
V
Single bevel
Y
Bevel + root face
X
Double bevel
K
Asymmetric double
Gradient & Circle-Square
Variable angle and profile transitions
Paired Head: Works with the Plane Bevel Cutting Head. View head details →
Structural Steel Cutting
FSCUT9200
System Overview
ApplicationStructural Steel
Capability3-in-1
ProfilerBCW600B Laser
MotionHypTronic3-L
NestingTekla + TubesT
Machine TypesGantry + Pulling
Smart Functions
BCW600B laser profiler — real-time deformation compensation for H-beam, I-beam, and structural sections

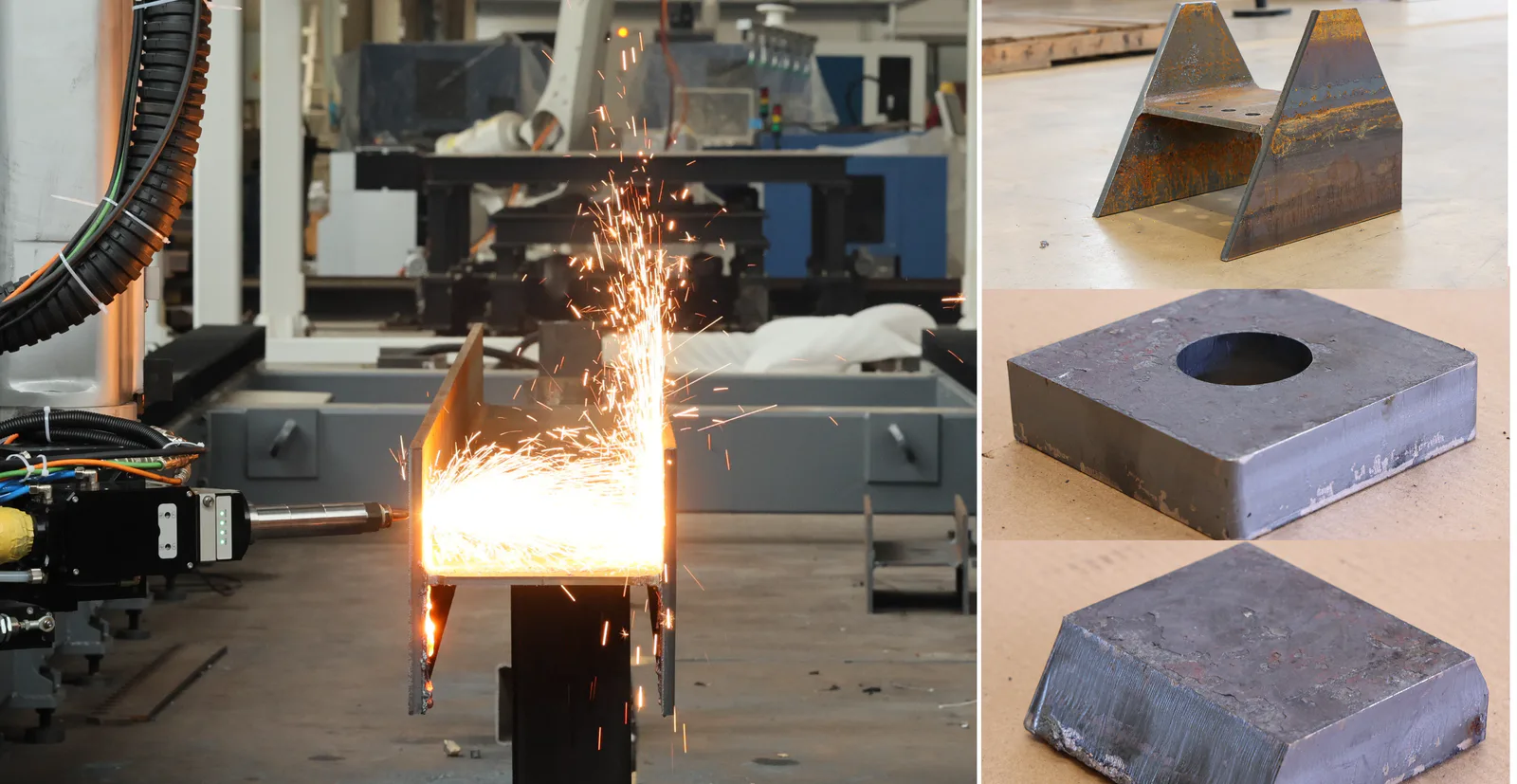

3-in-1: structural steel cutting + plane bevel cutting + 2D flat sheet cutting from one controller
AB axis swinging — enables bevel cuts on structural steel profiles
Vision calibration — one-click with no mechanical adjustment
Multi-function operations: scallop, deburring, bolt hole drilling, part marking
Professional nesting with Tekla Structures integration and TubesT Structural Steel software
Compatible with both gantry and pulling machine configurations
BCW600B Laser Profiler
The BCW600B is a laser scanning device that mounts on the cutting head gantry. It pre-scans the structural section before cutting and builds a real-time deformation model — compensating for bow, camber, and twist that would otherwise cause dimensional errors.
+Measures actual profile vs. nominal CAD
+Corrects cutting path in real time
+No manual measurement or shimming
+Critical for scallop and bolt hole accuracy
Paired Head: Works with the Structural Steel Cutting Head. View head details →
Comparison
FSCUT9100 vs FSCUT9200
| Feature | FSCUT9100 | FSCUT9200 |
|---|---|---|
| Primary Application | Plane bevel flat sheet | Structural steel H/I-beam |
| Plane Bevel Cutting | ✓ | ✓ |
| 2D Sheet Cutting | ✓ | ✓ |
| Structural Steel Cutting | — | ✓ |
| BCW600B Laser Profiler | — | ✓ |
| Vision Calibration | ✓ | ✓ |
| V/Y/X/K Bevel Types | ✓ | ✓ |
| Gradient Bevel | ✓ | ✓ |
| CypNest Bevel Nesting | ✓ | ✓ |
| Tekla Structures Integration | Optional | ✓ Full |
| TubesT Structural Nesting | — | ✓ |
| AB Axis Swinging | ✓ | ✓ |
| HypTronic3-L Motion | — | ✓ |
| Scallop / Deburring / Bolt Holes | — | ✓ |
| Convex Head Cutting | ✓ | — |
Expert Guidance
Bevel or Structural Steel?
Tell us your application — flat sheet weld-prep bevel or full structural steel (H-beam, I-beam) — and we'll specify the right FSCUT9000 controller and matched head.
